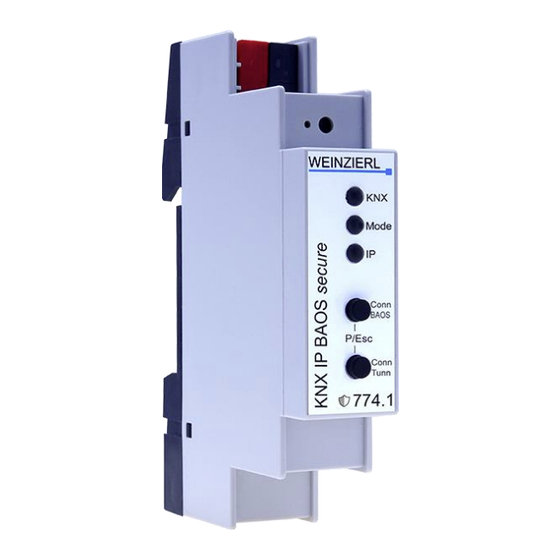

KNX IP interface and object server
KNX IP BAOS 774.1 secure
Operation and installation manual
(Art. # 5475)
WEINZIERL ENGINEERING GmbH
Achatz 3-4
84508 Burgkirchen an der Alz
GERMANY
+49 8677 / 916 36 – 0
Tel.:
E-Mail: info@weinzierl.de
Web: www.weinzierl.de
© 2024 WEINZIERL ENGINEERING GmbH
Seite 1/27
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Weinzierl KNX IP BAOS 774.1 secure
- Page 1 KNX IP interface and object server KNX IP BAOS 774.1 secure Operation and installation manual (Art. # 5475) WEINZIERL ENGINEERING GmbH Achatz 3-4 84508 Burgkirchen an der Alz GERMANY +49 8677 / 916 36 – 0 Tel.: E-Mail: info@weinzierl.de Web: www.weinzierl.de ©...
-
Page 2: Table Of Contents
Secure group communication ..................... 15 Additional individual addresses ..................16 IP settings .......................... 18 Description ......................... 21 General settings ......................... 22 Datapoint N – M ......................... 23 Parameter byte N – M ......................26 © 2024 WEINZIERL ENGINEERING GmbH Seite 2/27... -
Page 3: Application
1 Application The KNX IP BAOS 774.1 secure is a universal interface to the KNX bus. BAOS is an acronym for “Bus Access and Object Server”. Communication to KNX is possible both on telegram level (KNXnet/IP Tunneling) and on data point level (KNX Application Layer). Clients can directly access KNX Group Objects via either a Binary Protocol (over TCP/IP or UDP/IP) or via JSON (Java Script Object Notation) Web Services. -
Page 4: Application Specific Gateway
BAOS SDK and the free download can be found at www.weinzierl.de. 2 Installation and connection The KNX IP BAOS 774.1 secure is designed for installation on a DIN rail with a width of 1 unit (18mm). It features the following controls and displays: ❶... -
Page 5: Knx Programming Mode
The actually selected connection number is indicated by flashing (1x…10x) of the LED Mode ❺. An available BAOS connection is indicated by a green LED and a used BAOS connection is indicated by an orange LED. © 2024 WEINZIERL ENGINEERING GmbH Seite 5/27... -
Page 6: Reset To Factory Default Settings
In the factory default settings, the device has the physical address 15.15.255 and no group addresses are connected. Also, KNX Data Security is disabled and the initial key (FDSK) must be used for secure commissioning. © 2024 WEINZIERL ENGINEERING GmbH Seite 6/27... -
Page 7: Factory Default Settings
Encrypted telegrams are longer than the previously used unencrypted ones. For secure programming via the bus, it is therefore necessary that the interface used (e.g. USB) and any intermediate line couplers support the so called KNX Long Frames. © 2024 WEINZIERL ENGINEERING GmbH Seite 7/27... -
Page 8: Interface Settings In The Ets
“Discovered Interfaces”. After clicking on the desired connection, connection specific information and options appear on the right side of the ETS window. The selected connection can be selected as the “Current Interface” via the “Select” button. © 2024 WEINZIERL ENGINEERING GmbH Seite 8/27... -
Page 9: Ets 6
All available connections are listed here. By clicking on a connection, this is selected as the desired interface. By clicking the gear next to the desired connection, the connection specific information and options appear. © 2024 WEINZIERL ENGINEERING GmbH Seite 9/27... -
Page 10: Common
See section “ETS database – Additional individual addresses”. Like all programmable KNX devices, the KNX IP BAOS 774.1 secure has a individual address with which the device can be addressed. This is used, for example, by the ETS when downloading the interface via the KNX bus. -
Page 11: Programming
7 Programming The KNX IP BAOS 774.1 secure can be programmed by the ETS via different ways. 7.1 Via KNX bus For this purpose, the device must only be connected to the KNX bus. The ETS requires an additional interface (e.g. USB) to the KNX bus. Via this way, both the individual address and the entire application including IP configuration can be programmed. - Page 12 By clicking the gear next to “Automatic” the specific options appear. Here, the selection “Direct IP connection if supported by target device” can be selected. The download then takes place directly in the device and is not visible in the ETS group monitor. © 2024 WEINZIERL ENGINEERING GmbH Seite 12/27...
-
Page 13: Ets Database
KNX IP BAOS 774.1 secure (www.weinzierl.de) or from the ETS online catalogue. The KNX IP BAOS 774.1 secure supports KNX Data Security to protect the device against unauthorized access from the KNX bus. If the device is programmed via the KNX bus, this is done with encrypted telegrams. - Page 14 The initial key is reactivated after a reset to factory default settings. The serial number in the certificate enables the ETS to assign the correct key to a device during a download. © 2024 WEINZIERL ENGINEERING GmbH Seite 14/27...
-
Page 15: Secure Group Communication
8.2 Secure group communication Each object of the device can communicate either encrypted or unencrypted. The encryption is set under "Security" in the properties of the used group address: © 2024 WEINZIERL ENGINEERING GmbH Seite 15/27... -
Page 16: Additional Individual Addresses
“Properties – Settings”. If the frame of the text field changes its colour to red after entry, this indicates that the address entered is already being used. The changes are only applied in the device after download. © 2024 WEINZIERL ENGINEERING GmbH Seite 16/27... - Page 17 Make sure that none of the specified addresses are already used in your KNX installation. © 2024 WEINZIERL ENGINEERING GmbH Seite 17/27...
-
Page 18: Ip Settings
8.4 IP settings By marking the KNX IP BAOS 774.1 secure in the tree structure of the topology view of the ETS project, the overview “Properties” appears on the right side of the ETS window. 8.4.1 Device name (user friendly name) Under Properties menu item “Settings”, the device name (user friendly name) of the... - Page 19 (static IP address), the IP address, subnet mask and standard gateway can be freely selected. IP Address The IP address of the KNX IP BAOS 774.1 secure must be entered here. This is used to address the device via the IP network (Wi-Fi). The IP addressing should be coordinated with the administrator of the network.
- Page 20 Subnet mask of PC: 255.255.255.0 The KNX IP BAOS 774.1 secure is located in the same local network, i.e. it uses the same subnet. The assignment of the IP address is restricted by the subnet, i.e. in this example the IP address of the IP interface must be 192.168.1.xx, xx can be a number from 1 to 254 (with the exception of 30,...
-
Page 21: Description
8.5 Description This page shows the device description and the corresponding connection diagram. © 2024 WEINZIERL ENGINEERING GmbH Seite 21/27... -
Page 22: General Settings
This parameter can be used to set whether BAOS communication is secure or unsecure. Password (only for secure communication) The password for secure BAOS communication can be set here. Object server port The TCP port which is used for the BAOS communication can be set here. © 2024 WEINZIERL ENGINEERING GmbH Seite 22/27... -
Page 23: Datapoint N - M
DPT 12.001 – Unsigned value – 4 bytes ▪ DPT 13.001 – Signed value – 4 bytes ▪ DPT 14.000 – Acceleration – 4 bytes DPT 15.000 – Access data – 4 bytes ▪ © 2024 WEINZIERL ENGINEERING GmbH Seite 23/27... - Page 24 If a required DPT cannot be selected, e.g. “DPT 9.007 – Relative humidity – 2 bytes”, a similar DPT with a suitable length must be selected “DPT 9.001 – Temperature – 2 bytes”. This must be adapted in the ETS. © 2024 WEINZIERL ENGINEERING GmbH Seite 24/27...
- Page 25 A description for the object can be assigned here. This text is displayed dynamically for the corresponding group object. This provides a better overview in the project. ▪ Datapoint 1 with description text ▪ Datapoint 2 without description text © 2024 WEINZIERL ENGINEERING GmbH Seite 25/27...
-
Page 26: Parameter Byte N - M
Parameter byte A value between 0 … 255 can be set for each parameter byte. Description A description for the parameter byte can be assigned here. This provides a better overview in the project. © 2024 WEINZIERL ENGINEERING GmbH Seite 26/27... - Page 27 Product database for ETS 5/6 WEINZIERL ENGINEERING GmbH www.weinzierl.de/en/products/774.1/ets6 Achatz 3-4 84508 Burgkirchen an der Alz Data sheet GERMANY www.weinzierl.de/en/products/774.1/datasheet Tel.: +49 8677 / 916 36 – 0 CE Declaration E-Mail: info@weinzierl.de www.weinzierl.de/en/products/774.1/ce-declaration Web: www.weinzierl.de 2024-05-07 © 2024 WEINZIERL ENGINEERING GmbH Seite 27/27...
