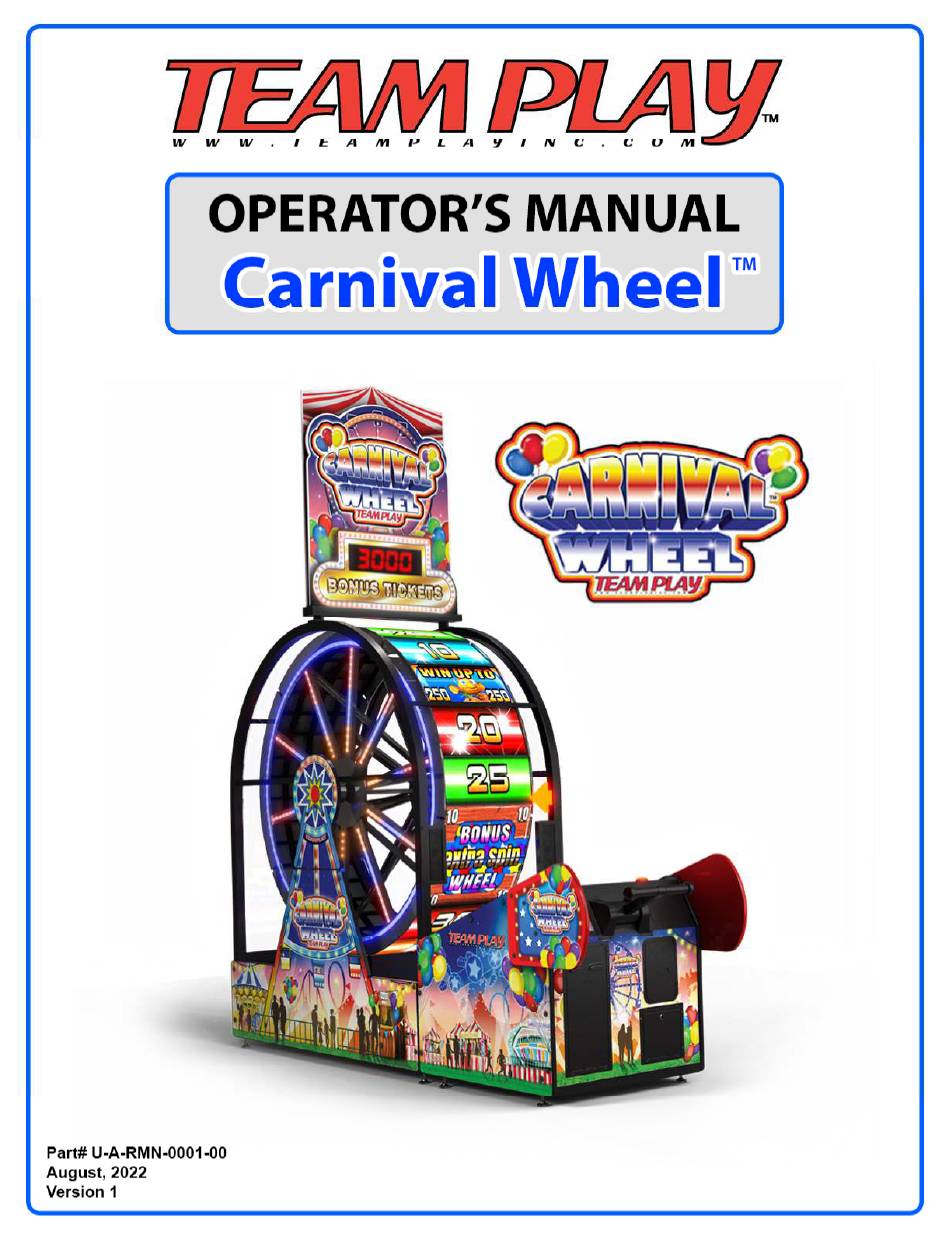

Team Play Carnival Wheel Operator's Manual
  1. Manuals
  2. Brands
  3. Team Play Manuals
  4. Arcade Game Machines
  5. Carnival Wheel
  6. Operator's manual

Team Play Carnival Wheel Operator's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Carnival Wheel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Team Play Carnival Wheel

Summary of Contents for Team Play Carnival Wheel

  • Page 3 Disconnect AC mains power cords before servicing. Prevent electrical shocks, equipment damage and possible injury. WARNING: Connectors. Carnival Wheel cable and harness connectors are keyed and will fit “one way”. Forcing a connection between mis-aligned or mis- matched connectors could result in injury or equipment damage.
  • Page 4  Caution: Liability. The game machine may be subject to static discharge or power surges. Team Play Inc., assumes no liability for equipment damage resulting from static discharge or power surge. Team Play Inc. recommends the use of a properly sized surge protector.
  • Page 5  Notice: Copyright © 2021 by Team Play, Inc. All rights reserved.  Notice: Patent www.teamplayinc.com/legal.html  Notice: Team Play™ is a trademark of Team Play, Inc. All rights reserved.

  • Page 7: Tools Required

    Carnival Wheel™ Installation Guide Precautions: WARNING: Indoor use only. This amusement game machine is for indoor use only. Operation in damp or exposed areas is hazardous to players. Moisture and outdoor weather will damage the electronics and cabinet.  CAUTION: AC MAINS CORD. If one of the detachable AC mains power cords is damaged, replace it only with a factory approved cord assembly.
  • Page 8 Carnival Wheel™ Installation Guide 134in (340cm) 87in (221cm) 112in (285cm)
  • Page 9 Carnival Wheel™ Installation Guide 37in (95cm)
  • Page 10 Carnival Wheel™ Installation Guide Game Installation Parts box and related items 1. AC mains cord set game electronics 2. AC mains cord set LED panel displays 3. Keyboard, QWERTY USB 2.0 4. Shoulder Bolt, 1/2in dia. x 3/4in long 3/8-thread 5.

  • Page 11: Game Assembly

    Carnival Wheel™ Installation Guide Game Assembly a. Display Cabinet i. Remove the display cabinet from the shipping skid and position the cabinet in an area with access all sides. ii. Move the game to the desired location. If necessary, tip the display cabinet onto the rear caster shipping brackets in order to fit under a standard 80inch door opening.
  • Page 12 Carnival Wheel™ Installation Guide v. Connect the display cabinet full range speakers to the plunger cabinet sub-woofer. Insert the 3.5mm stereo phono connector from the display cabinet into the mating connector of the sub- woofer cabinet. Connect the 8pin DC power cable, 6pin wheel motor and ratchet...
  • Page 13 Replace the AC mains cover panel Game installation a. Position the Carnival Wheel game assembly in the desired location on the floor b. Lower the leg levelers until the cabinet floors are level and the wheels are not supporting the weight of the cabinets.
  • Page 14 Carnival Wheel™ Installation Guide Post installation a. When the game is powered on, it will automatically “self-calibrate” to determine the wheel home position. When this has completed, the game will enter the “game over attract” mode. b. Connect the USB keyboard to the USB extension cable inside the ticket door and press the CTL+T key on the keyboard to enter the operator menu.
  • Page 15 At the top of the main menu you will see the software version number, and then several entries to other menus. Please give Team Play tech support a call at 847-952-7533 with help getting your Carnival ™ Wheel machine setup if needed.
  • Page 16 Carnival Wheel™ Installation Guide details). This will reset the ticket amounts to match your current price per play. Now get your game volume set up. MAIN MENU –> GAME VOLUME Game Volume – This adjusts the volume during gameplay. Keep in mind the overall volume can still be controlled by the volume knob inside the front cabinet.
  • Page 18 At the top of the main menu you will see the software version number, and then several entries to other menus. ™ Please give Team Play tech support a call at 847-952-7533 with help getting your Carnival Wheel machine setup if needed. We will be happy to help.
  • Page 19 Carnival Wheel™ Operator Software Guide Version 1.0 MAIN MENU –> OPERATOR ADJUSTABLES Coin Adjustments – All pricing, coin values Currency Type – How the buy in and price is displayed on the game screen. Money, Swipe, Tap or Token. Price Per Play – The cost of a single game to play.
  • Page 20 Carnival Wheel™ Operator Software Guide Version 1.0 Game Adjustments – Many of the general machine/game adjustments are made here. Play Attract Spin – When on, the game will spin the wheel automatically in attract mode. Use Progressive – Defaults to ON. Progressive mode allows the Carny Bonus value to increase as players start games.
  • Page 21 Carnival Wheel™ Operator Software Guide Version 1.0 Ticket Adjustments – Where most changes to the tile values take place. Ticket Amount Per Ticket – Defaults to 1. Some locations want to say 2 tickets or more were per ticket to speed up the payout process, and make adjustments on a card reader or at the ticket counter.
  • Page 22 Carnival Wheel™ Operator Software Guide Version 1.0 Progressive Bonus Settings Current Bonus Tickets – Displays the current ticket value for the Progressive Bonus. This value will automatically adjust according to any changes to the Minimum and Maximum Bonus Tickets values.
  • Page 23 Carnival Wheel™ Operator Software Guide Version 1.0 Difficulty Adjustments – Where current and daily difficulty settings can be configured. Current Difficulty – Defaults to Normal. Options of Easy, Normal, or Hard difficulties will reconfigure a range of ticket and game settings to affect ticket payouts.
  • Page 24 Carnival Wheel™ Operator Software Guide Version 1.0 Asset Adjustments – Where changes can be made to any custom assets and ads settings. Custom Ads – Defaults to OFF. Turn custom ads in attract mode ON or OFF. When ON, the game will show a custom loaded image asset near the beginning of the attract cycle (if at least one ad is imported and enabled).
  • Page 25 Carnival Wheel™ Operator Software Guide Version 1.0 MAIN MENU –> SYSTEM LINK ADJUSTMENTS System Linking – Defaults to OFF. Turn system link connection ON or OFF for the local machine. When ON, the current machine will allow synchronization with any other connected machines.
  • Page 26 Carnival Wheel™ Operator Software Guide Version 1.0 MAIN MENU –> ONLINE ADJUSTMENTS SSID – Name of the wireless network to connect to. Password – Password for the wireless network you are connecting to. Hidden SSID – Usually SSIDs are shown and are shown in a list on your phone or laptop.
  • Page 27 Carnival Wheel™ Operator Software Guide Version 1.0 Bill Acceptor – Shows the cumulative money collected in the Bill Acceptor over the lifetime of the machine. Service Credits – Shows the cumulative service credits granted over the lifetime of the machine.
  • Page 28 Carnival Wheel™ Operator Software Guide Version 1.0 Game Audits – Menu where a wide array of gameplay and assorted ticket statistics can be found. Tile Audits – Menu where audits can be viewed for each wheel and their respective tiles.
  • Page 29 Carnival Wheel™ Operator Software Guide Version 1.0 type of tile, including all the tiles on the Popcorn, Fishbowl, Soda, Peanut, and Mega Ticket wheels. Bonus Wins – Shows the cumulative total of bonus tile wins during the selected audit period. This includes all wins for both the Progressive Bonus and Super Spin Big tiles.
  • Page 30 Carnival Wheel™ Operator Software Guide Version 1.0 Peanut – Shows the total number of Peanut wheel plays during the selected audit period. Peanut mode offers a special assortment of ticket values as defined by the Peanut Tile Values within the Ticket Adjustments menu.
  • Page 31 MAIN MENU –> DIAGNOSTICS Sensor Tuning – These numbers should not be adjusted unless advised to do so by Team Play Inc. These numbers were adjusted and set at the factory. Switch Tests – Menu to test each of the mechanical switches.
  • Page 32 Carnival Wheel™ Operator Software Guide Version 1.0 Dispense 1 Ticket Dispense 5 Tickets Dispense 10 Tickets Ticket Spitter 2 Dispense 1 Ticket Dispense 5 Tickets Dispense 10 Tickets Light Tests – Make sure all the lighting on the game is working properly.
  • Page 33 Carnival Wheel™ Operator Software Guide Version 1.0 Time Interval – DO NOT ADJUST Brake Tests – Adjust and test the wheel brake. Engage Brake – Tells the brake to close Disengage Brake – Tells the brake to open Revolutions to Brake – Amount of spins before brake engages.
  • Page 34 MAIN MENU –> EXIT TO ATTRACT  Notice: Copyright © 2021 by Team Play, Inc. All rights reserved.  Notice: Patent www.teamplayinc.com/legal.html Team Play™ and Carnival Wheel™ are a trademarks of Team Play, Inc. All  Notice: rights reserved.
  • Page 36 2) If you do not have a wired network already, or the game isn’t in a position that can connect, you can use the router from the Team Play Link Kit. Plug the router into a power plug, then plug each network cable into the router and to the machine.
  • Page 37 Link Information – Displays the information for any connected machines.  Notice: Copyright © 2021 by Team Play, Inc. All rights reserved.  Notice: Patent www.teamplayinc.com/legal.html Team Play™ and Carnival Wheel™ are a trademarks of Team Play, Inc. All rights reserved.  Notice:...

  • Page 39: Service And Replacement Parts

    Chain sprocket T35 30tooth 1per 8. U-A-RPL-0020-03 Wheel brake pad 2per ii. Electronic 1. D-A-SEL-0007-U0 Programmed HDD, 2.5in SATA SSD 1per Carnival Wheel USA Standard 2. F-A-REL-0031-00 Fuse, 5x20mm T3.15A/250VAC 1per 3. T-A-REL-0003-00 CPU Board, Mini-ITX A68-5600 1per 4. T-A-REL-0004-00 Memory, 2GByte DDR3-1600 DIMM 1per 5.
  • Page 40 Carnival Wheel™ Service and Replacement Parts Wood 1. U-A-RWD-0040-02 Wheel side profile BOTTOM 2per U-A-RWD-0041-02 Wheel side profile TOP 2per Graphics 1. U-A-RGR-0100-03 Wheel side profile bottom RIGHT 1per 2. U-A-RGR-0101-02 Wheel side profile top RIGHT 1per 3. U-A-RGR-0102-03 Wheel side profile bottom LEFT...
  • Page 41 Carnival Wheel™ Service and Replacement Parts Plunger Cabinet Mechanical 1. A-A-RHD-0001-00 Leg leveler, ½-13 x 3in 4per 2. A-A-RHD-0002-01 Caster, 3 1/2in swivel 4per 3. U-A-SAS-0040-00 Plunger bottom pivot arm assy 1per with bushings U-A-SAS-0043-03 T-handle with pivot bushings and...
