Summary of Contents for GSEICE SY Series

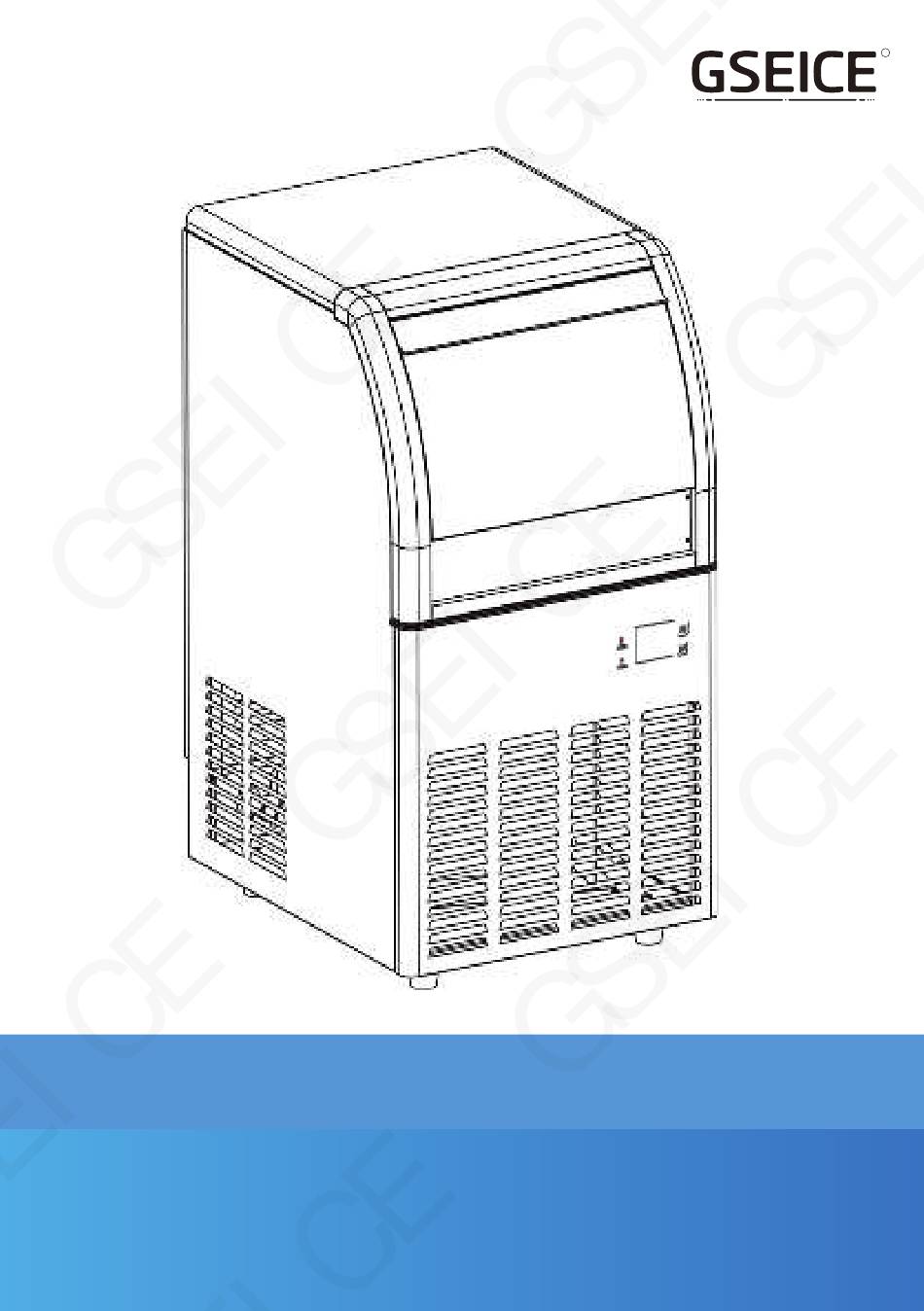

- Page 1 If you haven operation issue, please contact GSEICE service team. COMMERCIAL ICE MACHINE Contact information:WWW.GSEICE.COM PHONE:+86 18011725089 Whatsapp:+86 13928831354/+86 19928402783 Email:service@gseice.com...
- Page 2 Page 1-2 IMPORTANT SAFETY INSTRUCTIONS Page 3-4 PARTS DESCRIPTION Page 5-8 OPERATION Page 9-11 MAINTENANCE Page 11-12 TROUBLESHOOTING Page 12 WARRANTY Page 13 MANUFACTURING Page 13 WARNING Page 13 CONTACT US BEFORE FIRST USE: To prevent any internal damage, it is very important to keep refrigeration units upright throughout their journey.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your GSEICE Commercial Ice Machine (appliance), basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and/or injury to persons. Incorrect operation due to ignoring instructions may cause harm or damage. - Page 4 IMPORTANT SAFETY INSTRUCTIONS ・Failure to follow these instructions can result in death, fire, or electrical shock. ・Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction. ・Do not damage the refrigerant circuit. ・This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or a lack of experience and knowledge.
-
Page 5: Parts Description
PARTS DESCRIPTION Top cover Ice bin door Blue light Ice making & water tank assembly Front panel Control panel Air outlet Water lnlet Tube Filter Water Outlet Tube Water Direction... - Page 6 ACCESSORIES PARTS DESCRIPTION Water dranning hose To drain To drain hose port To water supply hose port To water supply Water supply hose Filter（For SY100 SY150 Model） Filter（For SY200 SY300 SY440 Mode） Ice scoop...
-
Page 7: Operation
OPERATION CONTROL PANEL & FUNCTIONS 1.“+＆-” button Press and hold “+” for 3 seconds, then press “+” or “-” to adjust the thickness of the ice. Wait for 5 seconds until finishing setting, it will return to the interface of ice making. 2. - Page 8 OPERATION UNPACKING AND INSTALLATION 1.Remove the exterior and interior packaging. Check if all the accessories, including the instruction manual, ice scoop, filter and water inlet hose are inside. If any parts are missing, please contact GSEICE customer service at +8618011725089/+8619928402783.
- Page 9 OPERATION WATER CONNECTION FOR YOUR ICE MACHINE NOTE: ・The water pressure of the main water supply system should be 0.13-0.55mpa (19-80 psi). 1.Connect the water supply hose to the filter: Insert the short side of the filter into water hose. Then connect the other side of the filter with water supply system.
- Page 10 OPERATION WATER CONNECTION FOR YOUR ICE MACHINE Connect filter with water supply （For SY100 SY150 Model） Remove the clipper of the filter connect the hose with the filter, push inwards completely reinstall the clipper complete installation Remove the connection between filter and water supply hose （For SY100 SY150 Model）...
- Page 11 OPERATION WATER CONNECTION FOR YOUR ICE MACHINE Display diagram of installing water filter （For SY200 SY300 SY440 Model） Pipe Threaded joint Pipe Install the pipe with filter 1.connect the threaded joint with the inlet water connection of the filter 2.insert the pipe to the threaded joint. Connect the water supply Connector of purified water Completed...
- Page 12 OPERATION OPERATING YOUR ICE MACHINE A.“TIMING/CLEANING” button Press this button to enter the TIMING setting program. Press and hold this button for more than 3 seconds to enter the CLEAN program. B.“SWITCH/ICE FALLING” button Press this button to enter ICE Making mode after power on. When the appliance is making ice cubes, press this button to switch to the ice falling process.
-
Page 13: Maintenance
MAINTENANCE CLEANING & MAINTENANCE OF YOUR ICE MACHINE WARNING: Before cleaning or maintenance, unplug the Ice Machine from the main power supply (Exception: Self-cleaning program). Do not use any alcohol or fume for cleaning/sanitization of the Ice Machine. It may cause cracks on the plastic parts. - Page 14 MAINTENANCE CLEANING & MAINTENANCE OF YOUR ICE MACHINE NOTE: After cleaning the interior parts of your Ice Machine, install the parts to the original position, then plug in and turn on the machine. It is recommended to discard the first batch of ice. Cleaning Suggestion 1.The Ice scoop, door for ice taking, and water outlet pipe should be cleaned after each use.
-
Page 15: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Check power cord, power switch, power plug, socket, The ice maker is not powered on main board and fuse There is no water source supply Check whether the water source switch on or not Ice falling baffle is in the open position Check whether the ice falling baffle can swing freely or not Check whether ambient temperature is too high Automatic shutdown of... -
Page 16: Warranty
GSEICE offers a limited one-year warranty (“warranty period”) on all of our products purchased new and unused from GSEICE , or an authorized reseller, with an original proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts or workmanship during the warranty period. -
Page 17: Manufacturing Info
MANUFACTURING INFO This manual is to be used with all items with the model number SY Series RATING: 110V-120V, 60Hz REFRIGERANT: R290 PLEASE NOTE 1.Keep all plastic bags away from children. 2.If there is a malfunction during the use of the product, please contact us promptly for after-sales guidance and repair.
