Summary of Contents for Canopus JogDisk JD-1

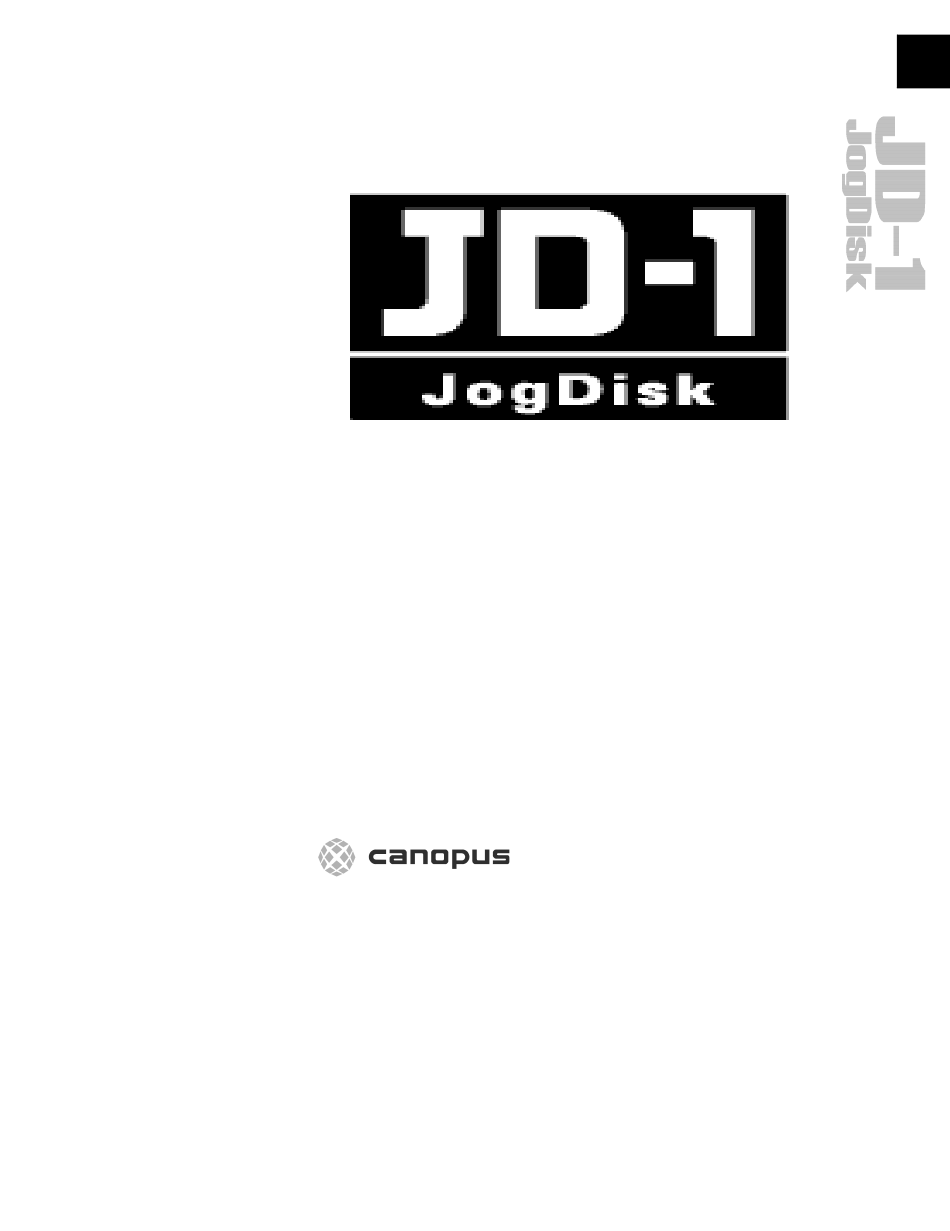

- Page 1 Installation and User’s Manual Canopus Corporation 711 Charcot Ave. San Jose, CA 95131 Canopus Part No. 000-10058-001 Printed in the USA Copyright©2001 Canopus Corporation. All Rights Reserved. First Edition - April 2001...
-
Page 2: Jd 1- Limited Warranty
Should our product fail to be in good working order, Canopus will, at its option, repair or replace it at no addi- tional charge, provided that the product has not been sub- jected to misuse, abuse or non-Canopus authorized alterations, modifications and/or repair. -
Page 3: Fcc Notice
As part of their ongoing process of continued product develop- ment, Canopus Corporation reserves the right to make improve- ments in the manual and the products it describes at any time, without notice or obligation. -
Page 4: Declaration Of Conformity
(2) this device must accept any interference received, including interference that may cause undesired operation. Declaration of Conformity According to FCC Part 15 Responsible Party Name: Canopus Corporation Address: 711 Charcot Avenue San Jose, CA 95131-2208 Telephone:... -
Page 5: Fcc-B Radio Frequency Interference Statement
Notice 2 Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. Canopus Corporation Tested to Comply with FCC Standards For Home or Office Use... -
Page 6: Specifications
Specifications Unit Spec Connector: USB x 1 Data format: 1.5 Mbps Serial Board length: 124(W) x 140(H) Board weight: 180g Power: +5V 30mA... -
Page 7: Table Of Contents
TABLE OF CONTENTS Notice to Reader ....... . ii JD 1 - Limited Warranty ......ii FCC Notice . - Page 8 viii TABLE OF CONTENTS CHAPTER 3: Functions Getting to know JD 1 ......3-1 Onboard Switches .
- Page 9 TABLE OF CONTENTS Where can I get more information? ....4-3...
- Page 10 TABLE OF CONTENTS...
-
Page 11: Chapter 1: Introduction
If you have any questions please call, fax, mail or email us at: Canopus Corporation 711 Charcot Ave. San Jose, CA 95131 Main telephone: (408)954-4500... -
Page 12: Manual Conventions
“caution” means to take care in avoiding physical injury or damage to the computer or peripherals. Trademarks JD 1 is a trademark of Canopus Corporation. i.LINK is a trademark of Sony Corporation. DirectDraw and IntelliM- ouse are trademarks of Microsoft. All other trademarks and... -
Page 13: Chapter 2: Installation
CHAPTER: 2 Installation CHAPTER 2 Installation This product is not intended for and should not be used for medical purposes, or with any equipment which might be used for life support. Before Installation Make sure to read the following sections before installing the Jog Disk (JD 1) hardware and software. -
Page 14: Before Installing Jd 1Hardware
CHAPTER: 2 Installation • Microsoft® Windows® 98SE, Windows® ME, Windows® 2000* (Service Pack 1) • USB port Installing USB drivers in your system for compatibility Win 98SE and Win ME will require you to install the neces- sary drivers for USB support from your Win 98SE or Win ME CD. -
Page 15: Using Your Jd 1
CHAPTER: 2 Installation Using Your JD 1 The Jog Disk (JD 1) is used in conjunction with your edit applications and it allows you to custom map certain but- tons on the JD 1. This custom mapping will let you edit from the JD 1 and eliminate you having to move your hands back and forth from the mouse to the keyboard. -
Page 16: Compatibility
CHAPTER: 2 Installation Compatibility The JD 1 is compatible with the following applications: Canopus Edits Canopus Videos DVRex-RT Professional RexEdit (Ver.2.92)* RexVideo DVRex-RT (DVRex-M1 + RT Engine) RexEdit (Ver.2.91)* RexVideo DVRex-M1 RexEdit (Ver.2.53)* RexVideo DVStorm StormEdit (Ver.1.02)* StormVideo DVRaptor RaptorEdit (Ver.2.00)* RaptorVideo EZDV EzEdit (Ver.1.10)*... -
Page 17: Hardware Installation
CHAPTER: 2 Installation Hardware Installation This section contains instructions on how to install the JD 1 hardware. Please follow the instructions below while installing the JD 1 controller. STEP 1: Connect JD 1 1. Plug the USB connector from the JD 1 to your com- puter. -
Page 18: Before Installing Jd 1 Software
CHAPTER: 2 Installation Before installing JD 1 software Please make sure your system is working properly and free of viruses. Applications Installation To install the JD 1applications, insert the JD 1 CD-ROM into your CD-ROM drive, and run Setup.exe by double- clicking the icon. -
Page 19: Getting To Know Jd 1
CHAPTER: 3 Functions CHAPTER 3 Functions Getting to know JD 1 The JD 1 is a simple and very useful tool for editing. It will allow you to learn about editing faster without having to remember all the combinations of shortcuts. For others, the JD 1 will allow you to customize some shortcuts elimi- nating the hassle of moving back and forth from the mouse to the keyboard. -
Page 20: Onboard Switches
CHAPTER: 3 Functions Onboard Switches Default Controls Some buttons on the JD 1 have default controls and are not mappable. These buttons are shown in the picture below. Fast Forward Rewind Programmable Buttons Capture Deck Control/ File Control Mark Out Mark In Add Clip/Divide Clip Play/Pause... -
Page 21: Configuring Your Jd 1
CHAPTER: 3 Functions The LED will indicate the current status. (When lit it signi- fies: Deck, Jog or Shuttle control). Capture button will capture in the Batch Capture Window of editing applications. Mark In and Mark Out will mark the In and Out points in the timeline as well as in the Batch Capture Window. -
Page 22: Programmable Buttons
CHAPTER: 3 Functions Custom mappable buttons Key Setting Dialog Application Pull down Menu’s Programmable buttons First click on the Application pull down menu and select the corresponding Edit application you are using. The buttons will have default presets. You can custom map these but- tons by clicking on each button and setting the functions for that button in the Key Setting Dialog. - Page 23 CHAPTER: 3 Functions Click on the first button on the JD 1 application (1), you’ll notice that it has a default setting in place (ctrl+3) with the function “scale to 1 second” (2). Click on clear (3). You now can change its functions simply by changing the com- binations in the dialog box.
- Page 24 CHAPTER: 3 Functions Make sure you do not add two or more different combina- tions for any one button. You can also customize the other buttons to do shortcuts instead of using the keyboard. Do not do this.
-
Page 25: Jog/Shuttle Slider
In shuttle mode, you can control the playback speed. You can play forward or reverse from 1/4 up to 40x. Below are commands for Canopus Storm Edit and Rex Edit. Raptor Edit and Ez Edit do not have some of these functions. -
Page 26: Default Presets
CHAPTER: 3 Functions Default Presets Programmable Buttons Default Presets Rex Edit Button 1 Button 2 Button 3 Button 4 Button 5 Rex Edit M1 Function Scale 1 Second Scale Fit Batch Capture Next Scene Replay Storm Edit Keystrokes Ctrl + 3 Ctrl + E Alt + B Shift + End... - Page 27 CHAPTER: 3 Functions General Commands Timeline View Input Selection & DV Deck Control CTRL F1 analog 1 IN ALT K timeline thumbnails off/on ALT F File Menu ALT E Edit Menu timeline thumbnails big/small CTRL F2 analog 2 IN ALT M ALT C Effects Menu ALT N Bin thumbnails big/small...
-
Page 28: Connecting Your Dv Camera Or Deck
3-10 CHAPTER: 3 Functions Connecting your DV camera or deck Connect your camera or deck to your capture card using the 4-pin to 4-pin i.LINK cable. Plug one end of the cable into your camera or deck’s i.LINK jack, and plug the other end of the cable into capture card’s i.LINK jack. -
Page 29: Troubleshooting
Troubleshooting This chapter will cover some common problems with JD 1 and steps you can use to resolve them before you need to contact Canopus Technical Support. Pre-Installation issues What if I have Windows NT? Can I still use it? No. -
Page 30: Installation Issues
You can go to Microsoft’s web site and do a search for USB drivers and download it from there. Go to www.microsoft.com My JD 1 install CD does not work. Who do I contact? You can contact us at: Canopus Corporation 711 Charcot Ave. San Jose, CA 95131 U.S.A (408)954-4500 www.justedit.com... -
Page 31: My Jd 1 Is Damaged. What Do I Do
The JD 1 uses an USB cable, you can purchased this at any major computer store. Where can I get more information? Go to the JD 1 section of the Canopus website at http://www.canopuscorp.com/goto/jd1.htm While you’re there, you can also visit our User groups where you can get help and advice from customers using Canopus products around the world. - Page 32 CHAPTER: 4 Troubleshooting...
