Summary of Contents for RGBlink bond 7UHD

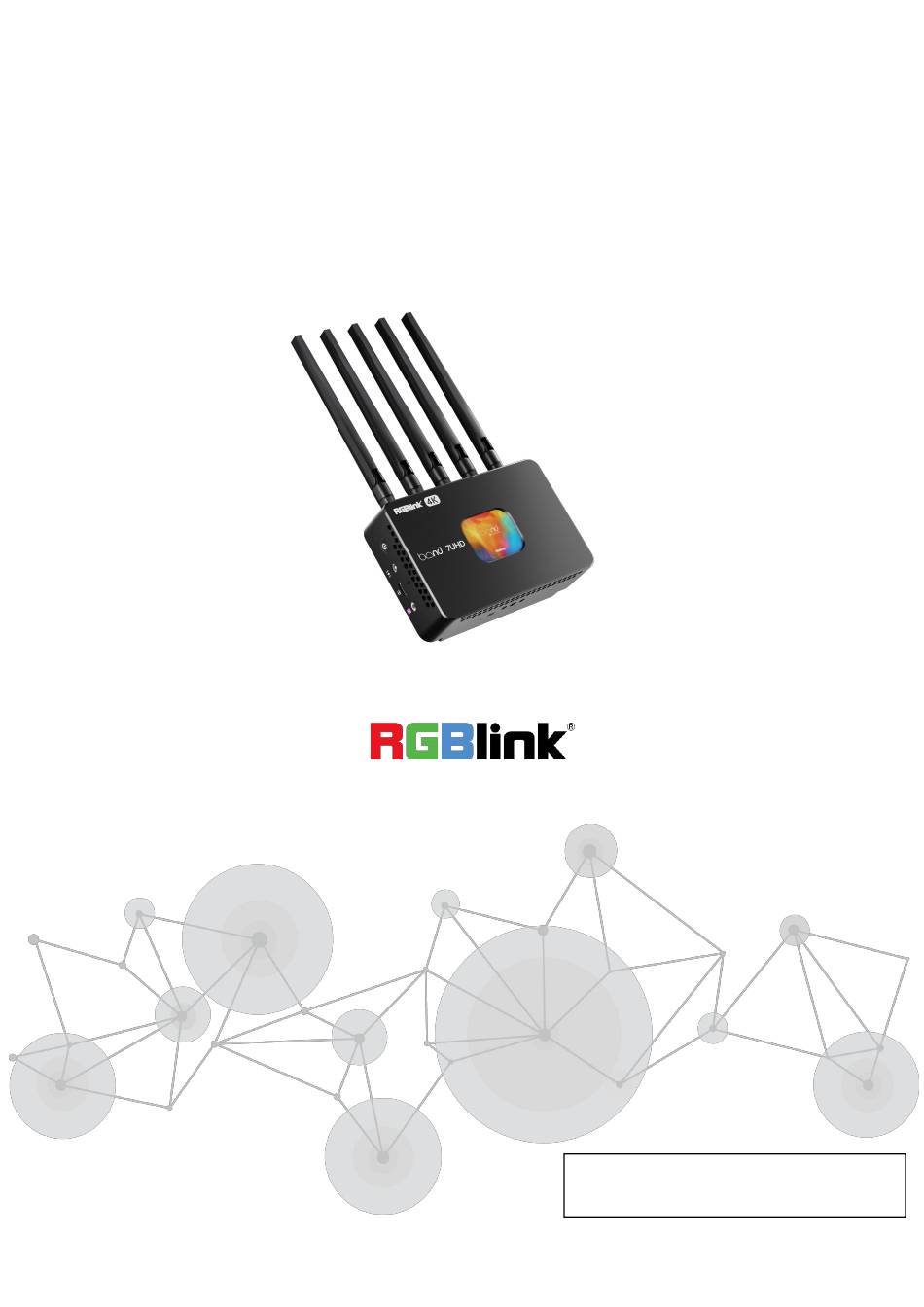

- Page 1 7UHD Intelligent Gadget for Cloud Monitoring and Collaboration User Manual Article No: RGB-RD-UM-bond 7UHD E000 Version No: V1.0...
-
Page 2: Table Of Contents
2.3 Connecting USB Port for Recording ..........12 2.4 Connecting the Network ............... 12 2.4.1 SIM Card Mobile Connection ..............13 2.4.2 Ethernet Wired Connection ..............14 2.4.3 USB 5G Dongle Connection ..............14 2.4.4 Smartphone Tethering ................ 15 bond 7UHD User Manual... - Page 3 2.5 Plugging in Power ................16 2.6 Powering on Your bond 7UHD ............17 Chapter 3 User Interface ..............18 3.1 Home Screen .................18 3.2 Device Information ................18 3.3 TAO Cloud Access ................21 3.4 Factory Reset ................22 Chapter 4 Order Code ................23 4.1 Product Code ................
-
Page 4: Declarations
30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the contract. -
Page 5: Operators Safety Summary
Installation Safety Summary Unpacking and Inspection Before opening bond 7UHD shipping box, inspect it for damage. If you find any damage, notify the shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the packing slip. If you find any shortages, contact your sales representative. -
Page 6: Chapter 1 About Your Product
7UHD supports live streaming through binding with TAO Cloud. Once connected, you can link your camera with bond 7UHD and stream live to popular social media platforms such as TikTok, Youtube, Instagram, etc, enabling remote real-time sharing of shooting footage with collaborators. -
Page 7: Key Features
● Built-in 5G module for installing SIM card ● SIM Card/5G Dongle/WIFI Wireless Network/Ethernet Wired Network/Smartphone Tethering ● Support network aggregation ● Compatible with major cameras ● ¼in screw hole is provided for camera or rack mounting bond 7UHD User Manual... -
Page 8: Interface Panel
USB-C Power Port ❹ ● Connect to an external battery or power adapter. ● 3.5mm analog audio socket for audio signal input. Line-in Port ❺ ● Connect it to audio mixer, CD player, or other such audio device. bond 7UHD User Manual... -
Page 9: Front Panel
● Insert a U disk for recording. USB-A Port ❽ ● Insert the 5G USB dongle to convert 5G signals into Wi-Fi for the bond 7UHD. ● Use with standard USB-A cable for smartphone tethering. ● HDMI 2.0 input, HDCP 2.3 compliance. ❾... -
Page 10: Rear Panel
❶ Interface Description Dual NP-F battery plate design supports simultaneous installation NP-F Battery Plate ❶ of two NP-F batteries. 1.2.5 Dimensions Following is the dimension of bond 7UHD for your reference: 134mm × 226.7mm × 42.1mm. bond 7UHD User Manual... -
Page 11: Chapter 2 Install Your Product
This HDMI 2.0 interface supports resolutions up to 4K@60p and includes deinterlacing functionality to ensure high-quality video output. Additionally, the USB-A and USB-C ports on the bond 7UHD support UVC (USB Video Class) input. You can connect UVC-compatible device (for example, a camera) to either the USB-A or USB-C port to directly transmit video signals captured by the camera. - Page 12 USB-A cannot be used simultaneously for video input. Select and use only one of these two ports at a time. Upon receiving an input signal, the bond 7UHD will will automatically recognize and display the input image after powering on. And the input resolution can be checked on...
-
Page 13: Connecting Audio Input
2.2 Connecting Audio Input The left side panel of the bond 7UHD features a 3.5mm Line-in audio input interface for receiving audio signals from external devices. Connect an external audio device (such as a mixer, microphone, or CD player) to the bond 7UHD's Line-in interface using a standard audio cable. -
Page 14: Sim Card Mobile Connection
Then follow the steps listed below: 1. Install the 5G Antenna Locate the port for inserting the 5G antenna on the bond 7UHD. Connect the antenna to the port as shown in the image below, and rotate it to lock in place. -
Page 15: Ethernet Wired Connection
Use a 5G-compatible USB dongle for the bond 7UHD. ○ If your USB dongle requires a SIM card, please install a valid 5G network SIM card into the USB dongle. ○ Insert the 5G USB dongle into the USB-A port of the bond 7UHD. bond 7UHD User Manual... -
Page 16: Smartphone Tethering
2.4.4 Smartphone Tethering You can also provide network for bond 7UHD through Smartphone Tethering. You can also provide network for bond 7UHD through Smartphone Tethering.You can also provide network for bond 7UHD through Smartphone Tethering. ○ Open ‘Settings’> ‘Additional settings’> ‘Developer options”> Enable ‘USB debugging’. -
Page 17: Plugging In Power
2.5 Plugging in Power The bond 7UHD offers three power supply options. ①DC Interface You can power the bond 7UHD via the DC power interface marked with a icon by connecting it to an external battery or power adapter. ②USB Type-C Interface... -
Page 18: Powering On Your Bond 7Uhd
Once you have connected the power supply, press the power button located on the left side to boot bond 7UHD. The screen will display the booting logo and then proceed to the home screen. Upon receiving a signal, the bond7 UHD will recognize and display the input image on the home screen while powered on. -
Page 19: Chapter 3 User Interface
Chapter 3 User Interface The bond 7UHD will display the home screen once it is ready for operation. Then you can press power button to navigate through different user interfaces: Home Screen → Device Information Interface 1 → Device Information Interface 2 → Network Connection Status Interface (if device not connected to the internet) →... - Page 20 If the bond 7UHD is offline, icon will appear on the top left corner, indicating a failed network connection or out of network signal status. Once the bond 7UHD is successfully connected to the network, Device Information Interface 1 will display the following: Icon...
- Page 21 From Device Information Interface 1, press the power button to access Device Information Interface 2, as shown below. Icon Description CPU Usage: Represent the percentage of CPU being utilized. A ❶ higher percentage indicates a greater CPU load. bond 7UHD User Manual...
-
Page 22: Tao Cloud Access
From the Device Information Interface 2, press the power button to access the TAO Cloud Binding Interface. If your bond 7UHD is not connected to the internet, you will first need to connect the device to the network to obtain the verification code. -
Page 23: Factory Reset
From the TAO Cloud Access Interface, press the power button to access the Factory Reset Interface. To perform a factory reset, press the power button twice to unbind the bond 7UHD from TAO Cloud and restore all settings to their factory default values. -
Page 24: Chapter 4 Order Code
Chapter 4 Order Code 4.1 Product Code Order Code Item 410-5513-06-0 bond 7UHD (CN) 410-5513-06-2 bond 7UHD (EU) 410-5513-06-3 bond 7UHD (GL) bond 7UHD User Manual... -
Page 25: Chapter 5 Support
Chapter 5 Support 5.1 Contact Us bond 7UHD User Manual... -
Page 26: Chapter 6 Appendix
Mobile Network SIM card installation Wireless Network Wi-Fi 5 AP mode/STA mode Tethering Android smartphone 5G Dongle USB 5G Dongle connectivity Power USB Type-C Input 12V/2A Battery 2×NP-F Battery DC Input 12V/2A Working Temperature 0℃~55℃ Environment bond 7UHD User Manual... -
Page 27: Revision History
First Release Aster All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
