Page 1 ICONDD70.1 Induction Hob with Integrated Downdraft Extractor Instruction Manual...
Page 2: Table Of Contents
Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Accessory list 3…………………………………..………………………………Product structure 4…………………………………..………………………………How induction heating works 5…………………………………..………………………………Installation 6…………………………………..………………………………Operation 7…………………………………..………………………………Maintenance and cleaning 8…………………………………..………………………………Technical parameter&circuit diagram 9…………………………………..………………………………Troubleshooting 10…………………………………..………………………………Environment protection 11…………………………………..………………………………Energy data sheet SAFETY INSTRUCTIONS his manual explains the proper installation and use of your appliance, please read itcarefully before using even if you are familiar with the product. The manual should be keptin a safe place for future reference.
Page 3 Never to do: ● ll installation work must be carried out by a competent person or qualified ● o not try to use the cooker hood electrician. without the grease filters or if the filters ● lease dispose of the packing are excessively greasy! material carefully.
Page 4 ● ● f the supply cord is damaged, it must here is a fire risk if cleaning is not be replaced by the manufacturer, its carried out in accordance with the service agent or similarly qualified instructions persons in order to avoid a hazard. ●...
Page 5 TTENTION: People with PACEMAKERS must ensure that their pacemaker has been designed in conformity with the norms in force. It is recommended that the manufacture or your doctor is consulted to verify any incompatibility. Important his appliance generates short range magnetic field therefore people with other types of electrical medical equipment, such as hearing aids for the deaf, must ensure...
Page 6  o not use aluminium foil to protect parts of the hob.  o not leave the kitchen unattended when cooking foods where high contents of oil or fat are used, the oil could catch fire. If the oil catches fire never put out with water.
Page 7: Accessory List
 etallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.  he instructions for hobs shall state that the appliance is not intended to be operated by means of an external timer or separate remote-control system. ...
Page 8 ICONDD70 inlet mesh (Cold plate with black color) ICOND70 inlet mesh (Cold platewith copper color) ICONDD70 inlet cover 133A right supporting foot 133A left supporting foot Aluminium foil expansion pipe(φ150mm) v-flap big cable tie strip seal wall plug-￠8 buckle...
Page 9: Product Structure

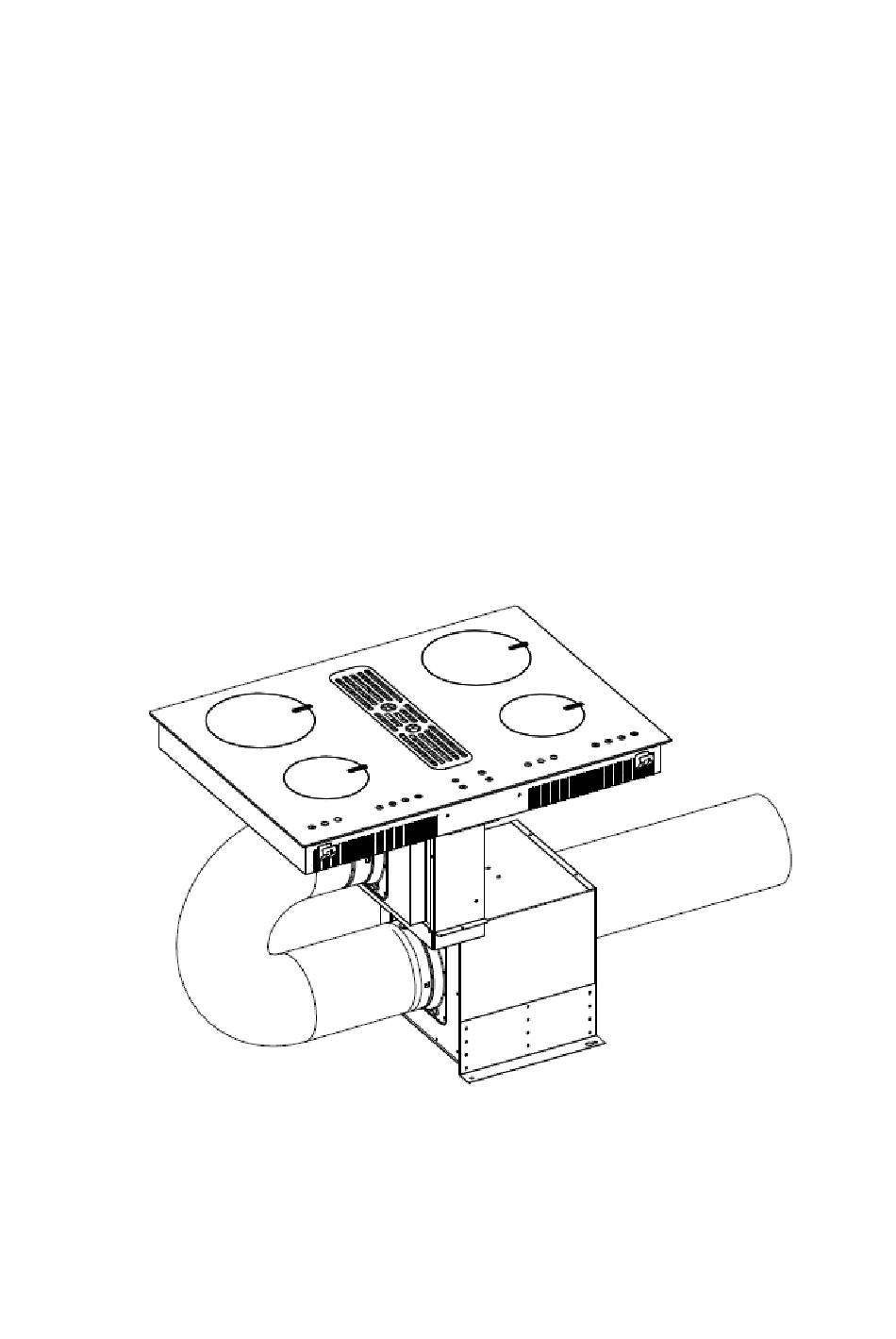

big flat blast mouth screw(ST4*8mm) big flatself-tapping screw(ST4*30mm) induction cooker assembly ICONDD70 inlet plenum assembly ICONDD70 133A blower cavity assembly Carbon filter steel wire(Ф2*282) Carbon filter(315*265mm) PRODUCRT STRUCTURE For the product structure,refer to Pic below.
Page 10: How Induction Heating Works
HOW INDUCTION HEATING WORKS There is an electronic circuit inside the induction hob which powers and commands a coil.This creates a magnetic field which activates when it comes into contact with suitable pots and pans(magnetic material). The pan on the hob warms up instantly,while the hob remains cold.There is no loss of heat.The heat generated in the pan lets you cook quickly,saving time and energy.
Page 11 and 40mm.The cupboard underneath the top should leave enough sufficient area to accommodate inlet plenum,blowercavity,inletpipe,outlet pipe and so on,and this area should make sure good ventilation and heat dissipation is provided.Refer to Pic below. ➢ Preparing the unit for a built-in appliance...
Page 12: Installing The Appliance
1. Make a squareopening on the table surface with the size of 680*490mm,refer to Pic above for the specification. 2. After drilling a hole on the table surface, carefully remove shavings or sawdust before inserting the appliance, as they could be sucked up by the appliance and compromising its function.
Page 13 5. Install the V-flap onto the outlet of the blower cavity,please note the pin on the v- flap should be faced outwards,refer to pic 4,then lay the expansion pipe on the inlet and outlet,and tie it tight with cable tie,lead the outlet pipe to the outlet hole on the wall afterwards.See Pic 5.
Page 14 9. Four pcs ST4*8mm screws will be used to fix the inlet plenum assembly onto the appliance.See Pic 9. 10. Put the induction cooker into the hole of the operation table surface,adjust the position and make it in the center of the hole.See Pic 10. 11.
Page 15 15. Connect the switch wire of the cooker hood well.See Pic 15. 16. Line up the “1”“2” “3”symbols on the plugand the socket,and connect them according to the direction shown on the photo until the connectors “click”,which means both connections have a firm fix.See Pic 16. 17.
Page 16 ➢ Installation tips The hob can be installed on a top with a flat surface and thickness of between 20 and 40mm.The cupboard underneath the top should leave enough sufficient area to accommodate inlet plenum,blowercavity,inletpipe,outlet pipe and so on,and this area should make sure good ventilation and heat dissipation is provided.Refer to Pic below.
Page 17 1. Make a squareopening on the table surface with the size of 680*490mm,then make a round hole from the beside of the cupboard,with diameter of about 160mm,the distance from the center of the hole to the bottom plate of the cupboard should be beyond 90mm,refer to Pic above for the specification.
Page 18 2. 6pcs ST4*8mm screws will be used to install the two cabinet supporting feet onto the blower cavity,from low to high,there are totally 4 groups of mounting holes on the supporting feet,and installation height of the cabinet can be adjusted by customer according to the interior space of the cupboard.Metal end on the cabinet is inlet,while plastic end is outlet.In the direction of outlet,open a hole of about φ160mm in the cupboard inwall(clapboard) to let the expansion pipe goes through,corresponding to the 4 groups of...
Page 19 6. Put a towel or cloth on the table surface.Place the glass face down on the protected surface.See Pic 6. 7. Apply the strip sealto the edge of the bottom of the hob,leaving about 3mm from the edge of the glass.Apply the seal all around the edge.Cut any excess and bring the two ends of the seal together so they match.See Pic 7.
Page 20 13. Put the carbon filter on the back side of the grease filter, insert two steel wire into the frame of the grease filter, one on each side, make sure the steel wire fix the carbon filter onto the grease filter. Note: The carbon filter is not included in the product.
Page 21 18. Pull the connect end of the expansion pipe to outside of the cupboard,connect the expansion pipe with the outlet mesh assembly(not supplied),and fix it with cable tie,equip the outlet mesh into the opening of the cupboard beside,adjust the position and the v-flap should face downwards,then fix the outlet mesh with 4pcs ST4*18mm screws.
Page 22: Operation
overheating caused by contact with parts or appliances underneath. 5. Grounding of the appliance is compulsory,for this reason all electrical wires and grounding must have a suitable section.Ensure that grounding is efficient. 6. A multiple switch with 3mm contact separationor more must be foreseen when installing the hob.
Page 23: Induction Hob
A: front left burner:φ140mm,power 1500W B: rear left burner:φ180mm,power 2500W C: rear right burner:φ180mm,power 2500W D: front right burner:φ140mm,power 1500W E: left induction hob control panel F: cooker hood control panel G: right induction hob control panel H: inlet area Induction hob Induction hobcontrol panel Note: The left and right induction hob control panels are of the same function,andthey...
Page 24: Pots And Pans And How To Use Them
burner,then the appliance will enter front burner or rear burner heating mode. After chosen burner,the appliance works speed default,thecorresponding digital tube displays “5” and flashes.The speed can be adjusted by pressing“+” or “-” at this time,press the“+” key once ,the speed will shift up one level,continuously press the add key till the appliance at the highest speed;...
Page 25: Cooker Hood
material. They can be made of enameied steel, cast iron or special pans of stainless steel for induction. The diameter of the pan should be at least 11cm. ◆ To make sure a pan is suitable, try using a magnet to see if it sticks to the bottom of the pan.
Page 26: Maintenance And Cleaning
hood is in stand-by mode. 2. Power on/off: When the cooker hood is standby, press On/off button,theOn/off indicator light will be on,the cooker hood will work at the first speed by default, and digital tube will display“1”; Or, the cooker hood will work at the speed it works last time,and digital tube will display corresponding speed level.
Page 27: Technical Parameter&Circuit Diagram
1. Please shut off the power and pull out the plug before cleaning of the appliance. 2. Clean the appliance until it cools down completely. 3. Cleaning the hob glass: Dry any splashes with a damp sponge or paper towel, rinse and dry.
Page 28: Circuit Diagram
Voltage/frequency AC220-240V/50Hz Power consumption 8230W(induction hob 8KW & cooker hood 230W) φ150mm Cooker hood expansion pipe diameter Cooker hood max air flow 475.9m³/h ≥400Pa Cooker hood wind pressure ≤72db Noise Working environmental temperature <45℃ Storage environmental temperature -20℃~45℃ Storage environmentalrelative <90% humidity ✓...
Page 29: Environment Protection
circuit Hob surface sensor short- Power on and judge within 10S. circuit IGBT sensor open-circuit Power on and judge within 2 minutes. IGBT sensor short-circuit Power on and judge within 10S. Hob surface overheat. Hob surface temperature higher than set value. Hob surface sersor become invalid.
Page 30: Energy Data Sheet
DISPOSAL OF THE APPLIANCE Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.
Page 31 Energy consumption per cooking zone Left front zone:189,0 Wh/kg electric or area calculated per kg Left rear zone:175,3 cooking Right front zone:188,3 Right rear zone:188,7 Energy consumption per hob 185,3 Wh/k Wh/kg electric calculated per kg ICONDD70.1 user manual 20200711...
