Panel Link Translator Installation Guide
Installation Instructions
NOTE: The panel link to QS link translator is one component of a total system upgrade from a legacy version of
HomeWorks to HomeWorks QSX. The panel link translator allows legacy Remote Power Modules (RPMs) and
specification-grade panels to communicate with QSX processors over the QS link.
All other incompatible legacy equipment, including legacy wired keypads and QED shade drives, MUST be replaced. Refer
to Lutron Application Note #840 (P / N 048840) for more information on how to upgrade each type of legacy HomeWorks
device that is not compatible with QSX.
Installation of the panel link translator varies based on the type of controller being replaced. After identifying the existing
controller type, follow the applicable instruction procedure below. Use the Lutron Designer software to configure and
commission the panel link translator after installation.

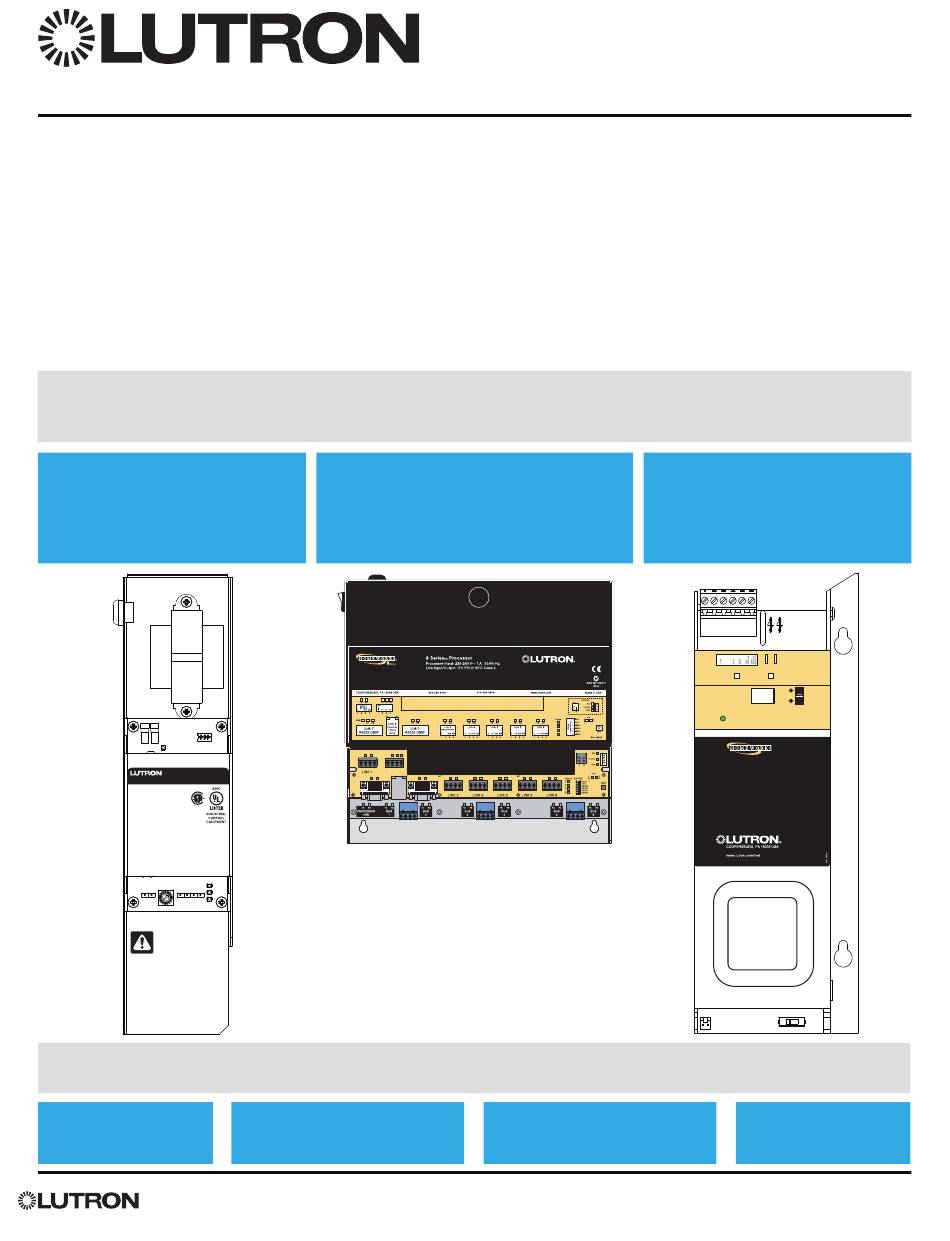

Find Your Current Product:
Click on the name or image of your existing product below to be taken to the instructions for
replacement.
Module Interface
(MI)
Pages 5 - 11
lutron.com
HomeWorks
HWI-MI-120
Input | Entrada | Entreé :
120 V~ 50 / 60 Hz 1 A
Output | Salida | Sortie :
IEC PELV / NECR Class 2
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause interference. (2) This device must accept any
interference, including interference that may cause undesired operation.
CAN ICES-3 (B)/NMB-3(B)
www.lutron.com/support
U.S.A. / Canada : 1.844.LUTRON1
México: +1.888.235.2910
Others | Otros | Autres : +1.610.282.3800
50017801a
WARNING
AVERTISSEMENT
ADVERTENCIA
Shock Hazard. May result in serious injury
or death. Turn off all circuit breakers
connected to panel before servicing.
Risque d'électrocution. Peut causer le
décès de la personne ou de graves lésions.
Asegure en posición de apagado (OFF)
cada uno de los cortacircuitos de
alimentación antes de darle servicio.
Riesgo de choque. Puede resultar en
daños graves o la muerte. Avant de
procéder à l'entretien, couper tous les
disjoncteurs connectés au panneau.
Additional Information:
Click on the links below to be taken to each section.
Overview
Pages 2 - 4
8-Series Processors
with Internal Module
Interface Link
Pages 12 - 15
Local Operations
Page 21
Troubleshooting
Page 22
1
Specification Grade
Panel Interface (SPI)
Pages 16 - 20
SELV/PELV
NECR Class 2
24 V~ 20 VA
1
2
3
4
D
5
50 / 60 Hz
RX
PWR
Address
Adresse
Dirección
View / Edit Address
Voir / modifier adresse
Ver / editar dirección
1.800.523.9466
HS-SPI
Specification-Grade Panel Interface
Interface de panneau de qualité spécifié
Interfaz del panel con calidad de especificación
Contact Us
Page 23
P/N 043612 Rev A
08/2024
Advertisement
Summary of Contents for Lutron Electronics HomeWorks HQ-MI-LX
- Page 1 Panel Link Translator Installation Guide Installation Instructions NOTE: The panel link to QS link translator is one component of a total system upgrade from a legacy version of HomeWorks to HomeWorks QSX. The panel link translator allows legacy Remote Power Modules (RPMs) and specification-grade panels to communicate with QSX processors over the QS link.
-
Page 2: Manual Override
HomeWorks HQ-MI-LX Panel Link Translator Overview 1: QS Link 6: SENSE Terminal Connects to the HomeWorks Connection for applications using the processor for wired communication SENSE (“5”) terminal • Only connect terminals “1”, “3”, and “4” • Configured by the switch (see 2: Switch •... - Page 3 HomeWorks HQ-MI-LX Panel Link Translator Overview (continued) Remote Power Feed-Through Panel Wiring Existing Transformer 24 V~ Mains Dimming / Switching Module HomeWorks HQ-MI-LX 24 - 36 V- 250 mA SELV / PELV NECR Class 2 https:// www.lutron.com/ PanelLinktoQSLink Translator Scan for instructions This device complies with part 15 of the FCC Rules.
- Page 4 HomeWorks HQ-MI-LX Panel Link Translator Overview (continued) Specification Grade Panel Wiring Existing Transformer 24 V~ QS Link / Mains SENSE Line 0,28 in 7 mm HomeWorks QSX Processor HQP7-2 24-36 V- 250 mA SELV NEC Class 2 ® lutron.com +1.844.LUTRON1 HomeWorks +44.(0)20.7702.0657 HQ-MI-LX...
- Page 5 HomeWorks HQ-MI-LX Panel Link Translator Module Interface (MI) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Remove the wiring from the existing module interface. Disconnect the Class 2 / PELV 24 wiring.
- Page 6 HomeWorks HQ-MI-LX Panel Link Translator Module Interface (MI) (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Remove the connector that ties the primary wires of the existing transformer to mains power by cutting the wires on both sides.
- Page 7 HomeWorks HQ-MI-LX Panel Link Translator Module Interface (MI) (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Remove the transformer by unscrewing the Philips head screws that are securing it. Save these screws to use when remounting the transformer in step 6.
- Page 8 HomeWorks HQ-MI-LX Panel Link Translator Module Interface (MI) (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Without removing them from the screw / stud, loosen the two 11/32 in (9 mm) nuts in the enclosure.
- Page 9 HomeWorks HQ-MI-LX Panel Link Translator Module Interface (MI) (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Reconnect the transformer to mains power with the lever connectors (provided). Neutral Mount the panel link translator by placing it over the screw / stud and then sliding it downward.
- Page 10 HomeWorks HQ-MI-LX Panel Link Translator Module Interface (MI) (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Remove and cap the “2” control wire from the bottom QS link terminal block. This terminal block was removed from the existing controller in step 1C.
- Page 11 HomeWorks HQ-MI-LX Panel Link Translator Module Interface (MI) (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Apply the Lutron HQ-MI-LX label (provided) to the legacy panel cover near the existing labeling. HQ-MI-LX HQ-MI-LX HQ-MI-LX...
- Page 12 HomeWorks HQ-MI-LX Panel Link Translator 8-Series Processors with Internal Module Interface Link WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. HomeWorks QSX processors and QS link power supplies will be required when upgrading an 8-series processor with module interface link.
- Page 13 HomeWorks HQ-MI-LX Panel Link Translator 8-Series Processors with Internal Module Interface Link (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Mount the panel link translator by placing it over the screw / stud and then sliding it downward.
- Page 14 HomeWorks HQ-MI-LX Panel Link Translator 8-Series Processors with Internal Module Interface Link (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Connect the wire harness (provided) to the QS power supply output with the lever connectors (provided).
- Page 15 HomeWorks HQ-MI-LX Panel Link Translator 8-Series Processors with Internal Module Interface Link (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Connect the panel link translator. Plug the wire harness from step 5 into the panel link translator.
- Page 16 HomeWorks HQ-MI-LX Panel Link Translator Specification Grade Panel Interface (SPI) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Remove the wiring from the existing SPI. Disconnect the Class 2 / PELV 24 wiring.
- Page 17 HomeWorks HQ-MI-LX Panel Link Translator Specification Grade Panel Interface (SPI) (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Without removing them from the screw / stud, loosen the two 11/32 in (9 mm) nuts behind the SPI.
- Page 18 HomeWorks HQ-MI-LX Panel Link Translator Specification Grade Panel Interface (SPI) (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Mount the panel link translator by placing it over the screw / stud and then sliding it downward.
- Page 19 HomeWorks HQ-MI-LX Panel Link Translator Specification Grade Panel Interface (SPI) (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Remove and cap the “2” and “D” wires from the 2: Not connected 6-pin communication terminal block from step 1C.
- Page 20 HomeWorks HQ-MI-LX Panel Link Translator Specification Grade Panel Interface (SPI) (continued) WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Apply the Lutron HQ-MI-LX label (provided) to the legacy panel cover near the existing label. HQ-MI-LX HQ-MI-LX 08/2024...
-
Page 21: Local Operations
HomeWorks HQ-MI-LX Panel Link Translator Local Operations Setup and programming of the panel link translator is done through the HomeWorks programming software. The local buttons are intended for system activation and local panel control. Control Link Baud Rates Show Baud Rates •... -
Page 22: Troubleshooting
HomeWorks HQ-MI-LX Panel Link Translator Troubleshooting Symptom Additional Details Action Local buttons do not Verify that there is voltage at the power terminal of the LED: Off control the load(s). device. Device can enter local load control mode. ) Verify the control link wiring. ) Verify the control link baud rate(s). - Page 23 This Class B digital apparatus complies with Canadian ICES-003. The Lutron logo, Lutron, and HomeWorks are trademarks or registered trademarks of Lutron Electronics Co., Inc. in the US and / or other countries. All product names, logos, and brands are property of their respective owners.
