Installation and Operating Instructions

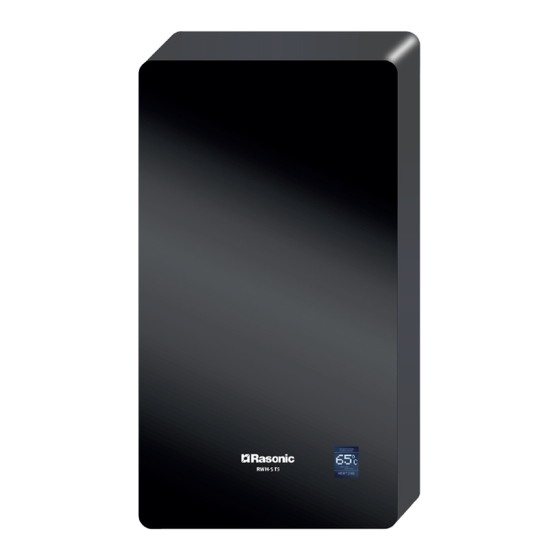

Vented InstantStorage (Hybrid) Water Heater
RWH-ST5
RWH-ST5W
Please read this instruction carefully before using this appliance
使用本產品前，請仔細閱讀本說明書
• 在使用本產品前，請仔細閱讀本說明書，並妥善保存本說明書以備用戶日後查詢。
• Please read the operation instruction carefully before using and well keep it in a safe place for future reference.
• 本說明書中的圖示可能有與實物不同的地方，僅供參考。
•
安裝及使用說明書
敞開式速熱儲水電熱水器
僅適用於家庭使用
For household use only
RWH-ST7
RWH-ST7W
.
Advertisement
Table of Contents
Related Manuals for Rasonic RWH-ST5
Summary of Contents for Rasonic RWH-ST5
- Page 1 Installation and Operating Instructions 安裝及使用說明書 Vented InstantStorage (Hybrid) Water Heater 敞開式速熱儲水電熱水器 僅適用於家庭使用 For household use only RWH-ST5 RWH-ST7 RWH-ST5W RWH-ST7W Please read this instruction carefully before using this appliance 使用本產品前，請仔細閱讀本說明書 • 在使用本產品前，請仔細閱讀本說明書，並妥善保存本說明書以備用戶日後查詢。 • Please read the operation instruction carefully before using and well keep it in a safe place for future reference.
-
Page 3: Table Of Contents
Content 目錄 用戶安全指引 ..........4-5 Safety Guideline 產品介紹及裝箱單 ......... 6-7 Product Introduction and Packing List 產品信息............8 Product Information Product Structure 產品結構 ............8 安裝指示............9 Installation Instructions 安裝時須知............10-11 Pre-Installation Notice 安裝圖 ............12 Installation Diagram 電路圖 ............12 Wiring Diagram Technical Specification 技術規格... -
Page 4: Safety Guideline
SAFETY GUIDELINE ● Installation, commissioning and maintenance of this appliance may only be undertaken by an authorized technician who will then be responsible for adhering to the applicable standards and/or installation regulations. ● All spare parts provided by the manufacturer must be duly installed. We are not liable for any damages caused by non-compliance with these instructions. -
Page 5: 用戶安全指引
用戶安全指引 ● 安裝及維修工作需由專業持牌水電技術人員負責，並根據當地條例進行。 ● 必須使用原廠配件安裝，如不依從此安裝指引安裝或使用非原廠配件而引致任何損失， 總代理概不負責。 ● 若用戶使用非原廠配件， 總代理將拒絕提供一切保養服務 ** 警告 ** : 此電器產品必須接地線 ● 切勿自行安裝，一切安裝及維修必須由專業技工進行。 ● 開啟電源前先把熱水器注滿清水及排放所有水膽內空氣。 ● 必須安裝附帶的原裝配件並不得自行改裝。熱水出口和配件可能很燙！ 必須嚴禁兒童接近。 ● 根據當地法例及當地電工條例,需接駁最少以下一項 (用戶負責提供及裝固): i. 適合之自動電流斷路掣 (MCB) ii. 適合之漏電斷路掣 (ELCB) ● 若加熱時花灑頭有微量熱水滴出, 均屬正常情況。 ● 在斷開設備與主電源的連接之前,切勿打開設備的檢修面板。 ● 如果熱水器中的水出現結冰現象,請勿開啟電源及使用。 ● 本熱水器的進水口不得與任何其他熱水系統的進水口相連。 ● 監護人必須看管兒童，防止他們玩弄及靠近熱水器，以免觸電及燙傷。 ●... -
Page 6: Packing List
PACKING LIST Product Unit Installation and Operation Instructions Warranty Card Water Saving Shower Head Set ( Including- Shower Head, Flexible Tube and Bracket ) 1 set (clients should install the original parts as specify in installation manual) 1 set Mixing Tap (Vented Type) 1 set Mounting Bracket with Anchor Bolts (clients should install the original parts as specify in installation instruction) - Page 7 裝箱單 產品 數量 安裝及使用説明書 1本 保用證 1張 花灑配件（花灑頭，花灑喉，花灑座） 1套 (務必裝上原有配件才會實現節水及長時間使用效果) 混合水掣(敞開式) 1套 1套 掛碼及M6爆炸螺絲 1個 *如客人單位需安裝減壓掣, 或供水壓力不高, 則不需要安裝限流器 *若客人單位必需安裝減壓掣, 則需將限流器安裝在減壓掣前 1個 *務必裝上原有配件才會實現節水及長時間使用效果...
-
Page 8: Product Information
PRODUCT INFORMATION Measurements Model No. Height Width Depth RWH-ST5 / RWH-ST5W 690mm 380mm 168mm 690mm 380mm 195mm RWH-ST7 / RWH-ST7W 產品信息 產品型號 高 闊 深 RWH-ST5 / RWH-ST5W 690 毫 380 毫 168 毫 690 毫 380 毫 195 毫... -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS ● The appliance may only be installed in a frost-free environment. ● Power switch with a light indicator is recommended. ● The appliance needs to be permanently connected to the water mains and should not connected by a flexible rubber hose. ●... -
Page 10: Pre - Installation Notice
Initial Operation Important: Rasonic’s water heater hybrid series is designed for operation on 220VAC, and must be installed by authorizes technician with earthed outlet. Fill the inner tank with water before conducting the following procedures: •... - Page 11 安裝時須注意 安裝全過程必須採用原廠配件，如違反指示將會失去保養效用。 如若因違反指示進行安裝或維修，從而引至任何損壞或傷亡，代理商一概不負責。 一切安裝及維修必須由合資格技工進行 安裝定位 熱水器應安裝於接近淋浴盆及祇能接駁單一花灑頭使用，（不得接上其他管道，以免發生危險）， 如需掛牆安裝，請務必需要使用爆炸螺絲（膨脹螺絲）並安裝在能負重的牆壁上，安裝的位置請 儘量調整至緊貼牆壁。 開關 用戶必需安裝雙刀開關分掣 (接點距離不少於3mm空隙及符合IEC標準) 由總電源分配箱之 MCB埠至熱水爐之間用以緊急開關，而此分掣必需安裝於浴室外及接駁安全地線。 安裝後初次啟動 重要事項: 樂信牌電熱水器速熱系列設計用於市220伏電壓，電源接駁需由專業技工進行及必須緊接地線。 地拖式插頭不得使用。 把熱水器內膽注滿水後，才能執行以下步驟： • 檢查電源或雙極總掣在脫開狀態。 • 打開混合閥熱出水口，放水至完全沒有氣泡排出為止。 • 檢查所有水管介面有否漏水，必要時修補後從覆上述步驟。 • 啟動電源。 • 顯示屏亮起，本熱水器開始自動調節適合溫度及留意熱水器加熱情況有異常。...
-
Page 13: Technical Specification
TECHNICAL SPECIFICATION Model No. RWH-ST5 / RWH-ST5W RWH-ST7 / RWH-ST7W Inner Container SUS304 Stainless Steel Capacity Maximum Pressure Working Pressure 0.0 MPa (0Bar) Insulation Rated Voltage 220V ~ 50Hz Rated Loading 13.64 Ampere Rated Current Pipe Connection G 1/2” Male BSP (British Standard Pipe Thread ) Working Temperature 75 -80dg.C... -
Page 14: 技術規格
技術規格 產品型號 RWH-ST5 / RWH-ST5W RWH-ST7 / RWH-ST7W 內膽結構 SUS304不銹鋼 容量(升) 20升 24升 最高壓力 工作壓力0.0MPa (0Bar) 保溫層 不含CFC阻燃發泡聚安脂 額定電壓 220伏特 ~ 50赫兹 額定負載 3千瓦 13.64 A(安倍) 額定電流 水管連接 1/2” 英式標準喉牙(公) 熱水溫度(內膽) 攝氏75~80度 防水級別 IPX4 13.10公斤 13.62公斤 重量(淨重) (約) 33.30公斤 37.42公斤... -
Page 15: 使用説明
- Unscrew the drain plug to release water. Source of Water Supply Never connect Rasonic’ s water heater to other source of water supply, other than the potable water supply as the result will have no warranty to the Company. -
Page 16: Troubleshooting
TROUBLESHOOTING Problem Remedy No water outflow Check and ensure all main water taps, service valves are opened; check fittings and hose connections. Water outflow Check if water pressure is normal and ensure no blockage in too weak the valve. No hot water Check fuse and electrical connection, call customer service outflow department to check thermal cutout, main controller or heating... -
Page 17: Cleaning And Maintenance
CLEANING AND MAINTENANCE • Heater surfaces and fittings may only be wiped with a damp cloth. Never use abrasive cleaning agents or solvents. • The electrical and plumbing components should be inspected by an authorized technician every two years to ensure proper functioning and operational safety at all times. •... -
Page 18: Warranty Terms
保修條款 WARRANTY TERMS 此保修條款只適合在當地合法購買、安裝及 These warranty terms shall be applicable 使用下才有效。 provided that the appliance is purchased, installed and used in accordance to domestic 在購買日起，將有限責任保修熱水器為期12 laws and regulations; 個月，熱水器內膽 10年保修*。 From the date of purchase, a 12-month limited liability warranty is provided; and 10-year limited liability warranty for the inner tank* 於保修期內，用戶必須遵守以下條款：...
