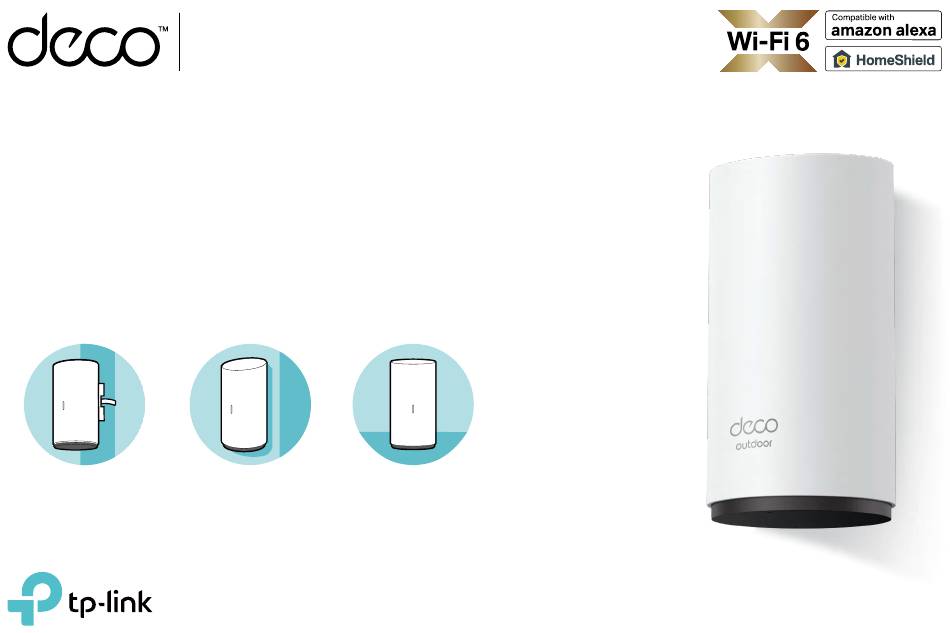

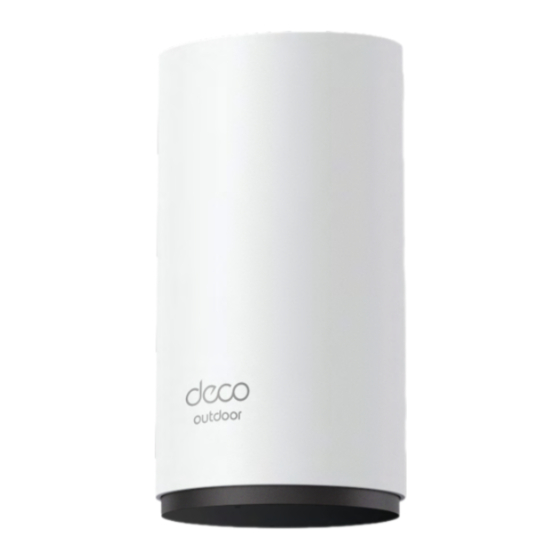

- Page 1 Deco BE25-Outdoor Outdoor/Indoor Mesh Wi-Fi User Guide BE5000 Outdoor/Indoor Mesh Wi-Fi 7 Router Pole Mount Wall Mount Tabletop 1910013300 REV1.0.0 © 2022 TP-Link...
-
Page 2: Table Of Contents
Contents About This Guide ···················································· 1 Appearance ······························································· 2 Determine the Power Option ···························· 3 Set Up Your Deco Network································ 4 Waterproof Your Deco ········································· 7 Mount Your Deco ···················································· 8 Troubleshooting ····················································10 Authentication ························································11... -
Page 3: About This Guide
• A Technical Community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support. -
Page 4: Appearance
Appearance Each Deco has an LED that changes color according to its status, a mounting tab, two gigabit ports, a power slot, and a Reset button. See the explanation below: Yellow pulse: Deco is resetting. Yellow solid: Deco is starting up. Blue pulse: Deco is ready for setup Wall/Pole Mounting Tab... -
Page 5: Determine The Power Option
Determine the Power Option Deco can be powered via a power cord or a PSE device (such as a PoE switch) which complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) and Electrical Energy Source Class 1(ES1) of IEC 62368-1. Option1: Via PoE Switch (Compliant with 802.3at) Option2: Via Power Cord Connect an Ethernet cable from the PoE switch (compliant with 802.3at) -
Page 6: Set Up Your Deco Network
Set Up Your Deco Network First let's start by setting up the Deco network. Get the TP-Link Deco app for iOS or Android, then follow the app to walk through the setup. 1. Get the Deco app 2. Log in with TP-Link ID 3. - Page 7 4. Plug in your Deco 5. Specify your Deco's location 6. Connect your Deco to the internet Power off your modem, connect your Deco to Select or custom a location for your Deco. Select the internet connection type and enter the modem, then power them both on.
- Page 8 7. Create your Deco Wi-Fi 8. Setup complete Create the network name and password for Your Deco network is now up. You can connect your Deco and connect to it. your devices to the Deco network. If you have more decos, tap Add another Deco to add them to your network.
-
Page 9: Waterproof Your Deco
Waterproof Your Deco The Deco can be used either indoors or outdoors. Before mounting your Deco outdoors, waterproof it to ensure device safety and performance. WARNING • The waterproof cover must be secured before use! • The product can only be installed by instructed person or skilled person! •... -
Page 10: Mount Your Deco
Mount Your Deco Deco can be mounted to a pole or a wall. Choose the appropriate mounting methods. Option 1: Pole Mounting The Deco can be mounted to a pole with the strap in the package. Pole Mounting Strap Lead the end of the pole mounting Position the Deco and wrap the strap through the back of the Deco. - Page 11 Option 2: Wall Mounting The Deco can be mounted to a wall with the bracket, anchors, and screws in the package. Mounting Bracket Plastic Wall Anchors Self-tapping Screws Place the mounting bracket in the Insert the plastic wall anchors into Align the mounting tabs on the right position.
-
Page 12: Troubleshooting
Solutions to common problems during setup or use are provided here for reference. Follow the steps and the provided link below to diagnose and solve problems you might experience with your Deco. If problems still exist, contact us: https://www.tp-link.com/support Q1. What should I do if I fail to configure the main Deco and get stuck on “We couldn't find Deco”? Refer to the guide https://www.tp-link.com/support/faq/2239/... -
Page 13: Authentication
Authentication FCC Compliance Information Statement Product Name: BE5000 Outdoor/Indoor Mesh Wi-Fi 7 Router Model Number: Deco BE25-Outdoor Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com... - Page 14 We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
-
Page 15: National Restrictions
5470 MHz -5725 MHz (30dBm) EU Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/ RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way... - Page 16 UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca National Restrictions Attention: This device may only be used indoors in Great Britain.
- Page 17 satellite systems; DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350 MHz, 5470-5600MHz, and 5650-5725MHz. Avertissement: Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;...
- Page 18 注意防潮，請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 • 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 限用物質含有情況標示聲明書 設備名稱： 型號（型式）： Equipment name Type designation (Type) BE5000 Outdoor/Indoor Mesh Wi-Fi 7 Router Deco BE25-Outdoor 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Unit Lead Mercury...
- Page 19 備考1. 超出0.1 wt %” 及 “超出0.01 wt %” 系指限用物質之百分比含量超出百分比含量基準值。 Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition. 備考2.“○”系指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
- Page 20 other implanted medical devices. If you suspect your product is interfering with your pacemaker or any other implanted medical device, turn off your product and consult your physician for information specific to your medical device. Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device.
