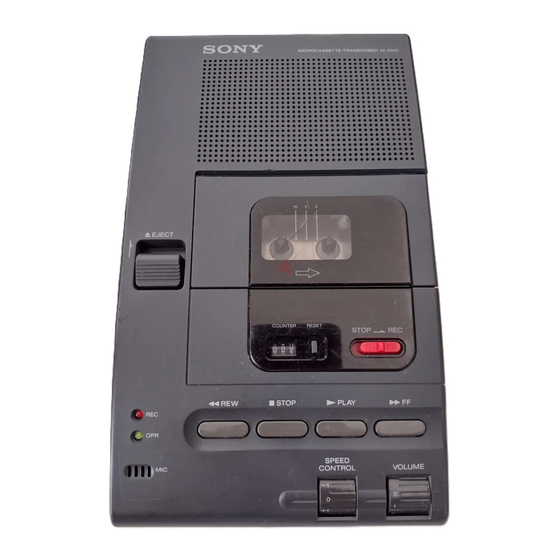

Sony M-2000 Service Manual
Microcassette transcriber
Hide thumbs
Also See for M-2000:
- Service manual (15 pages) ,
- Operating instructions (4 pages) ,
- Operating instructions (4 pages)
Advertisement

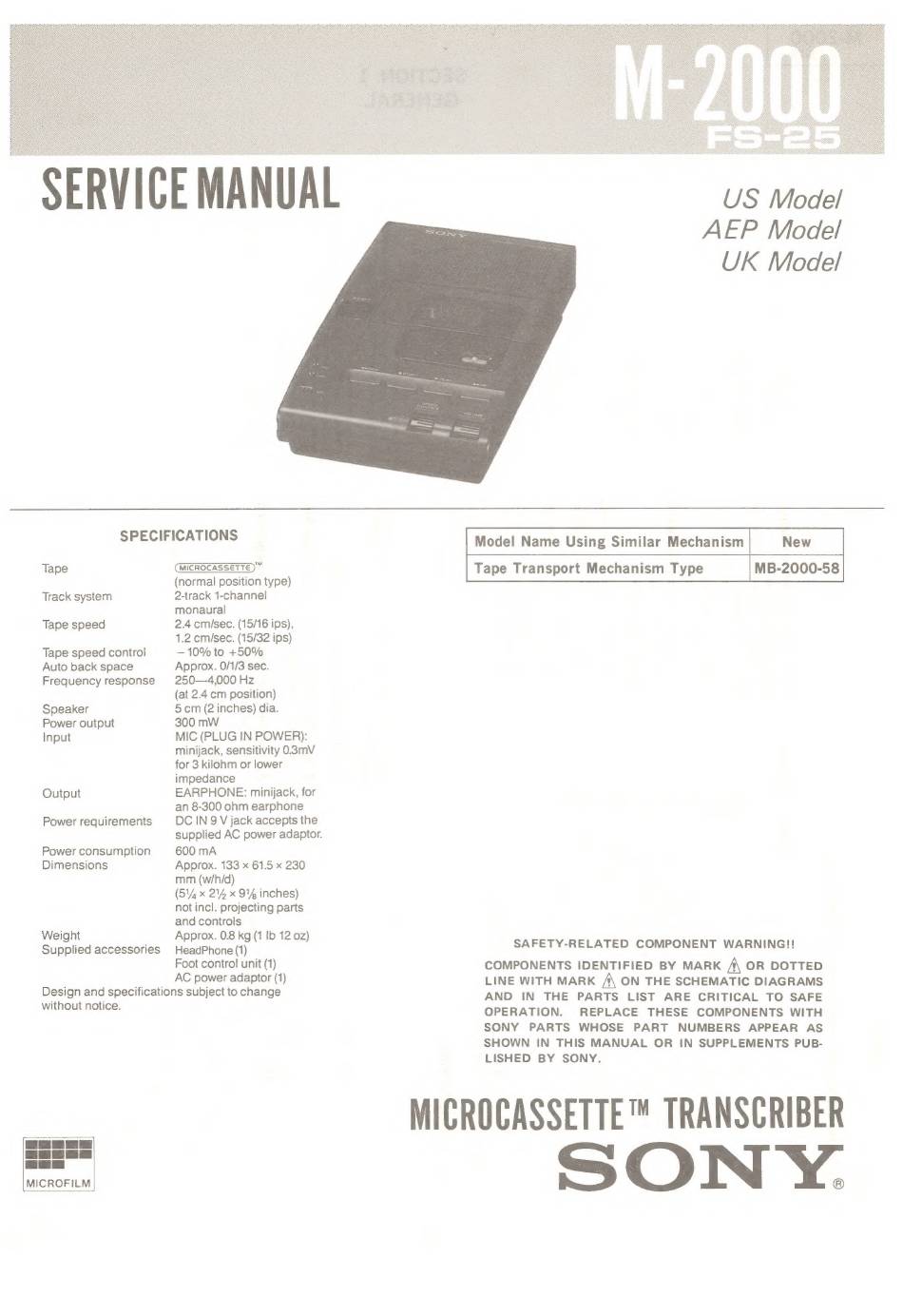

SERVICE MANUAL
SPECIFICATIONS
Tape
Track system
Tape speed
Tape speed control
Auto back space
Frequency response
Speaker
Power output
Input
Output
Power requirements
Power consumption
Dimensions
Weight
Supplied accessories
(MICROCASSETTE)™
(normal position type)
2-track 1-channel
monaural
2.4 cmisec. (15/16 ips),
1.2 cm/sec. (15/32 ips)
—10% to +50%
Approx. 0/1/3 sec.
250—4,000 Hz
(at 2.4 cm position)
5.cm (2 inches) dia.
300 mW
MIC (PLUG IN POWER):
minijack, sensitivity 0.3mV
for 3 kilohm or lower
impedance
EARPHONE: minijack, for
an 8-300 ohm earphone
DC IN 9 V jack accepts the
supplied AC power adaptor.
600 mA
Approx. 133 x 61.5 x 230
mm (w/h/d)
(5Yq x 2% x 9% inches)
not incl. projecting parts
and controls
Approx. 0.8 kg (1 Ib 12 oz)
HeadPhone (1)
Foot control unit (1)
AC power adaptor (1)
Design and specifications subject to change
without notice.
MICROFILM
US Model
AEP Model
UK Model
Model Name Using Similar Mechanism
MB-2000-58
Tape Transport Mechanism
Type
SAFETY-RELATED
COMPONENT
WARNING!!
COMPONENTS
IDENTIFIED
BY MARK
A OR
DOTTED
LINE WITH
MARK
A ON THE SCHEMATIC
DIAGRAMS
AND
IN
THE
PARTS
LIST
ARE
CRITICAL
TO
SAFE
OPERATION.
REPLACE
THESE
COMPONENTS
WITH
SONY
PARTS
WHOSE
PART
NUMBERS
APPEAR
AS
SHOWN
IN THIS MANUAL
OR
IN SUPPLEMENTS
PUB-
LISHED
BY
SONY.
MICROCASSETTE™ TRANSCRIBER
