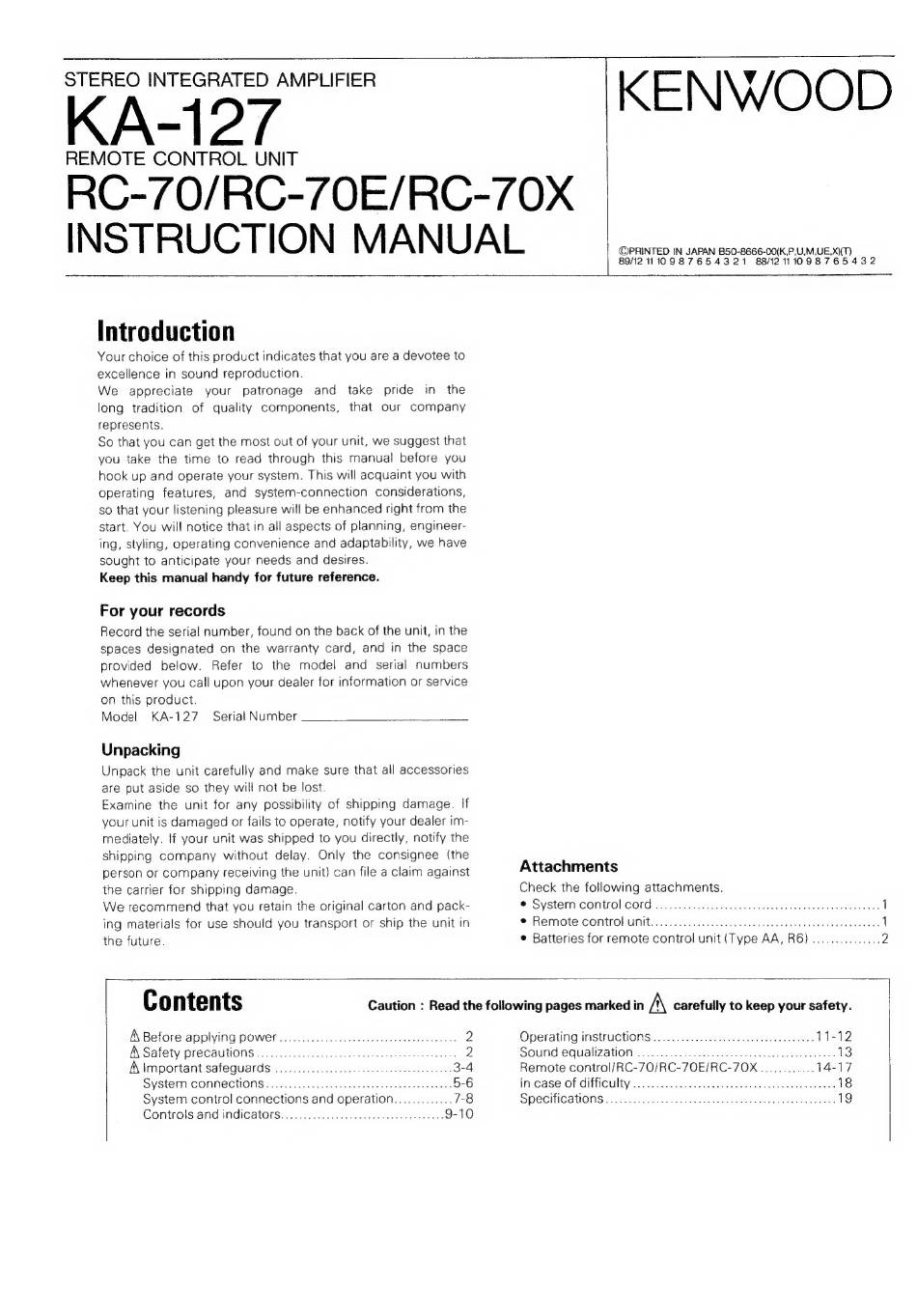

Kenwood KA-127 Instruction Manual

STEREO INTEGRATED AMPLIFIER
KA-127
REMOTE CONTROL UNIT
RC-70/RC-70E/RC-70X
INSTRUCTION MANUAL
KENWOOD
@©PRINTED IN JAPAN B50-8666-00(K,P,U,M,UE,X)(T)
89/12 1110987654321 881211098765432
Introduction
Your choice of this product indicates that you are a devotee to
excellence in sound reproduction.
We appreciate your patronage and take pride in the
long tradition of quality components, that our company
represents.
So that you can get the most out of your unit, we suggest that
you take the time to read through this manual before you
hook up and operate your system. This will acquaint you with
operating features, and system-connection considerations,
so that your listening pleasure will be enhanced right from the
start. You will notice that in all aspects of planning, engineer-
ing, styling, operating convenience and adaptability, we have
sought to anticipate your needs and desires.
Keep this manual handy for future reference.
For your records
Record the serial number, found on the back of the unit, in the
spaces designated on the warranty card, and in the space
provided below. Refer to the model and serial numbers
whenever you call upon your dealer for information or service
on this product.
Model KA-127 Serial Number
Unpacking
Unpack the unit carefully and make sure that all accessories
are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage. If
your unit is damaged or fails to operate, notify your dealer im-
mediately. If your unit was shipped to you directly, notify the
shipping company without delay. Only the consignee (the
person or company receiving the unit) can file a claim against
the carrier for shipping damage.
We recommend that you retain the original carton and pack-
ing materials for use should you transport or ship the unit in
the future.
Attachments
Check the following attachments.
* System control cord
© Remote Controhumitin.c. co. coin sansaieed modes cubeeea edaweua Lav annceaes 1
© Batteries for remote control unit (Type AA, R6)............... 2
Contents
A Before APPIVING POWEL v0 nos eset eleleaenek i eatesarseyneate 2
A Safety precautions ....0.0000.0.c.cccccceceeee cece eee eceeeeeees 2
A Important safeguards ..........0.00000 cece ete eeeeeeees 3-4
SYStEMP CONNECTIONS): ».2if.284 ccceaakteis ards diecssayteead 5-6
System control connections and operation............. 7-8
Controls and indicators
Caution : Read the following pages marked in A carefully to keep your safety.
Operating instructions
Sound equalization ...00... 000.026 ee cece ee eee 13
Remote control/RC-70/RC-70E/RC-70X ............ 14-17
In case of difficulty ..... 0... ce ccc cc ese eset eee 18
Specifications....o.acwiiaxiaayecicter creer tetas 19
