Endeavour Tools ET6636 User Manual

All-Purpose 6-Channel Injector Driverbox
This test kit drivers all kinds of gasoline/diesel injectors, including PFI/ FSI/ TFSI/
GDI/ Peizo etc. It offers 6 channels of adjustable signal output, to fit most
vehicles.
The kit also provides common adapters for most Direct Injection injectors to fit in
the fuel rails of most traditional PFI injector testers, which is very common, for
testing the injectors' spray-ability.
● Specifications
Dimensions 8*14*4cm
Power Max 60W
Voltage DC 12V
Output signal Low resistance PFI / High resistance PFI /
GDI-Peak & Hold / GDI-Piezo
RPM 120-2400 step 120
Pulse Width 4000~9900μs
Unit Bar, Kpa, PSI, Kg/cm
Type
Low resistance Fuel Injector
High Resistance Fuel Injector
GDI Peak & Hold Fuel Injector
GDI Piezo Fuel Injector
User Manual
2
Function Parameter
Sprayability Voltage
Current
Sprayability Voltage
Current
Sprayability Peak Voltage
Peak Current
Sprayability Voltage
Peak Current
● Packing List
01 Driverbox
01 Power Cord
06 Signal Output Cord
06 Extension Cord
06 * 3set of Fitting Adapters
12V Power Supply Introduction Port
1
Introduce DC 12V power supply into the driverbox.
Range
② Signal Output Port
12V
6-channel signal output, from the left to the right, index from #1 to #6.
③ ON/OFF/Actuate Button
3~20A
When power supply is introduced, long press this button to switch ON or OFF the
12V
unit, also this button could trigger a single pulse to do actuation test of the
3~20A
injectors(only available when the injector type is selected).
60-100V
④ Start/Stop Button
3~20A
Press this button to start or stop signal output.
100-170V
⑤ Navigation: BACK Button
3~20A
Navigate to the parent screen.
⑥ Navigation: UP Button
02 M8/10-M6 lead thread adapter
02 25mm lead thread
02 Locking Nut
06 Φ10 Washer
06 Φ14 Washer

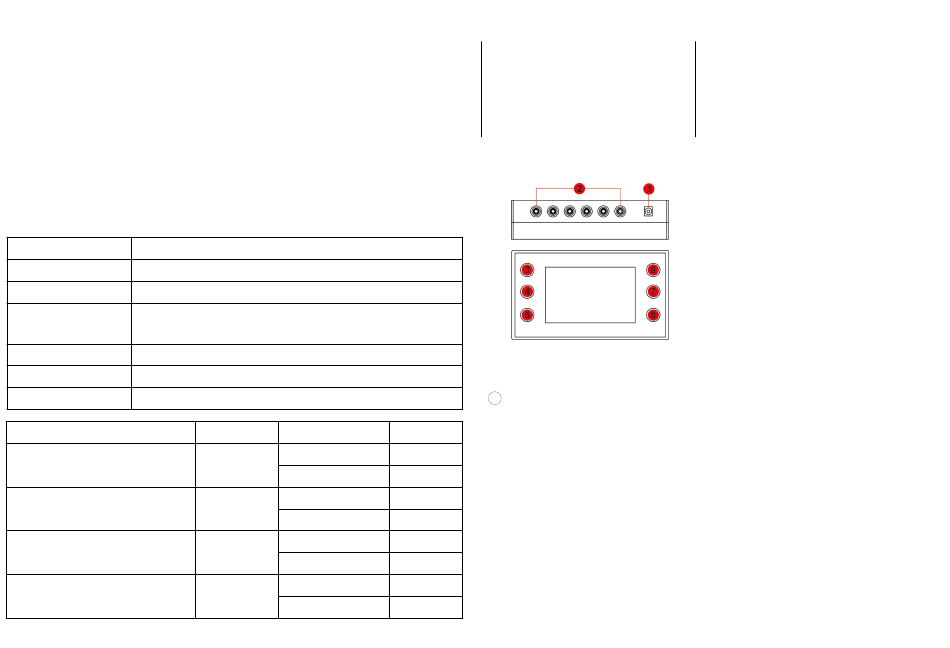

● Structure of the Driverbox
① 12V Power Supply Introduction Port
② Signal Output Port
③ ON/OFF/Actuate Button
④ Start/Stop Button
⑤ Navigation: BACK Button
⑥ Navigation: UP Button
⑦ Navigation: Confirmation Button
⑧ Navigation: DOWN Button
