YF-RER38-BG BAGGING KIT
FOR USE WITH YARD FORCE RIDING LAWN MOWER
WARNING:
To reduce the risk of injury, user must read and understand the operator's manual for their riding
lawn mower before using this accessory. Save these instructions. Refer to them frequently and use
them to instruct other users. If you loan someone this product, loan them these instructions also.
PACKING LIST
Bagging Blades (2)
Hitch Pin
Bags (2)
Lower Bagger Tube
INSTALLING THE BAGGING KIT
This kit includes a bagger and special mower blades
designed to be used when bagging. Install the blades first,
then install the bagging kit.
REMOVING THE CUTTING DECK
See Figure 1.
If desired, the cutting deck can be removed from the mower
to make accessing the blades easier when changing.
•
Make sure direction control switch is in neutral (N)
position and blade engage knob is down.
•
Stop the motor, wait for the blades to come to a
complete stop, remove the start key, and set the
parking brake.
•
Place a large piece of cardboard or similar beneath the
deck to prevent scratching.Disconnect the (2) cables
that connect the cutting deck to the mower.
•
Lower the cutting deck to its lowest position.
•
Remove the 4 hitch pins and washers that secure the
cutting deck in place.
•
Slide the deck out from under the mower.
•
Reverse the process to reattach the cutting deck to the mower.
INSTALLING BAGGING BLADES
See Figures 2 - 3.
CAUTION:
Only use replacement blade hardware authorized by the manufacturer of your riding mower. Use
of blade bolts not authorized is hazardous and may damage your riding mower.
•
Make sure direction control switch is in neutral (N) position and blade engage knob is down.
•
Stop the motor, wait for the blades to come to a complete stop, remove the start key, and set the
parking brake.
•
Raise the height of the cutting deck to its highest position to allow access to blades.
NOTE: If necessary, raise the mower by placing on a lift or using a jack and jack stands, or remove the
cutting deck as described in the previous section to gain access.
WARNING:
If raising the mower to access the blades, make sure the mower is properly secured and the
parking brake is set before proceeding. Failure to properly secure the mower could cause it to fall,
resulting in possible death or serious personal injury.
Bagger Bracket
Bagger Cover
Upper Bagger Tube
CABLE
CUTTING DECK

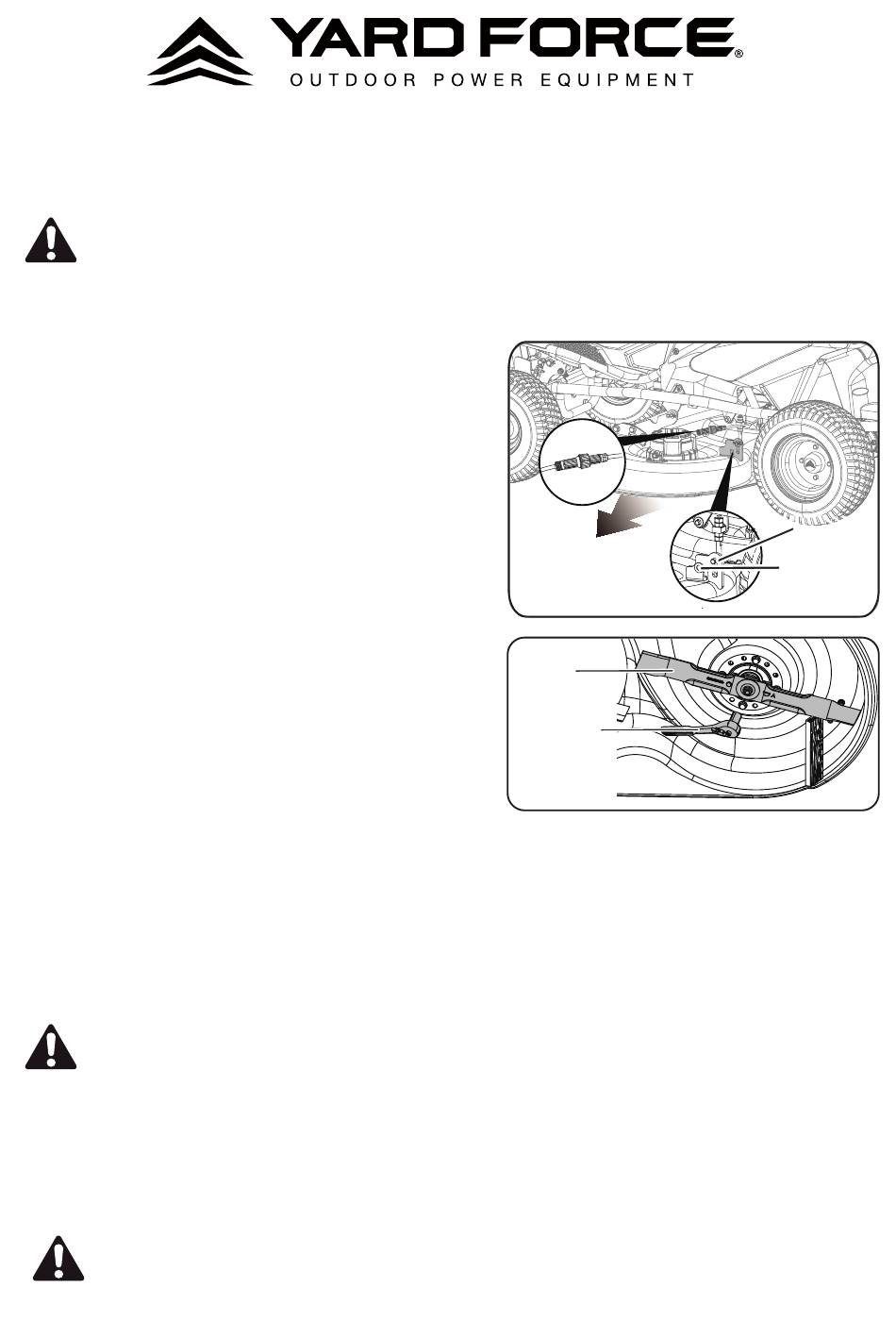

Fig. 1
Blade
Wrench
Fig. 2
HITCH PIN
WASHER
