Assembly Instruction

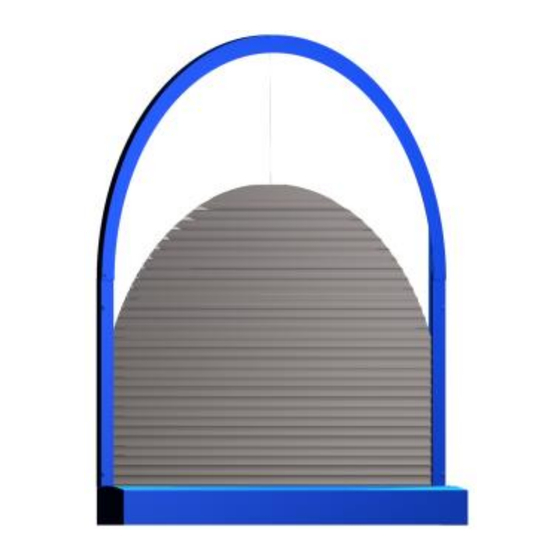

Roller Shutter Type R
This assembly instruction contains important information on assembling roller
shutters as well as important safety instructions.
The assembly operation may only be carried out by specialized staff of Schanz
Rollladensysteme GmbH or technicians especially authorized by Schanz Rollladen-
systeme GmbH.
Schanz Rollladensysteme GmbH
Forchenbusch 9
D- 72226 Simmersfeld
Tel.:
+49 (0)7484/9291-0
Fax:
+49 (0)7484/9291-36
E-Mail:
info@schanz.de
Internet: www.schanz.com
Commission - No.
MAL Studio Star-Typ R-manuell_englisch
Studio Star
-Manual Drive-
Date Installation and Instruction
Version: 16.05.23
Signature
Page 1 of 12
Advertisement
Table of Contents
Summary of Contents for schanz Studio Star R
- Page 1 This assembly instruction contains important information on assembling roller shutters as well as important safety instructions. The assembly operation may only be carried out by specialized staff of Schanz Rollladensysteme GmbH or technicians especially authorized by Schanz Rollladen- systeme GmbH.
-
Page 2: Table Of Contents
Put on the cover and screw it back Assembling / Installation/ Working on the facade Each roller shutter is individually manufactured according to your window shape and size and must only be installed by Schanz Rollladensysteme GmbH or technicians especially authorized. -
Page 3: Assembly Drawing - Outside Deflection
Assembly Drawing – Outside Deflection MAL Studio Star-Typ R-manuell_englisch Version: 16.05.23 Page 3 of 12... -
Page 4: Cord Guidance - Outside Deflection
Cord Guidance – Outside Deflection MAL Studio Star-Typ R-manuell_englisch Version: 16.05.23 Page 4 of 12... -
Page 5: Description Of The Basic Procedure
Description of the basic procedure Step No. Operation Note Check Check delivery for completeness Delivery is complete Compare the goods with delivery note Screw substructure to the window frame with Optional appropriate fixing material Align the roller shutter box Overlay is Put the shutter box on the windowsill necessary Check if the shutter box mounts... - Page 6 Step No. Operation Note Check Fasten the teflon tube The teflon tube about 2 mm shorter than the Attention: The teflon tube must be about 2 through-hole mm shorter than the length of the through- hole. The teflon tube (substructure and window frame) mustn’t protrude on both sides Insert the teflon tube into the borehole...
- Page 7 Step No. Operation Note Check Feed the cord into the interior Pull the cord over the return pulley and through the slot in the guide rail Pull the cord over the return pulley through the hole into the interior Attach both guide rails Do not damage Put guide rail to the box the cord...
- Page 8 Step No. Operation Note Check Attach Guide base Push the guide base between roller shutter slat and window frame (substructure) onto the bottom of the box and align it. Screw the guide base with appropriate fixing material and according to the number of fixing holes on the guide rail to the window frame (optional: Substructure)
- Page 9 Step No. Operation Note Check Attach the bezels to guide rails Do not damage Lead the cord over the return pulley in the cord the bezel Attach the bezel and screw it with short tapping screws to the guide rail Screw together the top bezel Position of the Predrill a hole for the countersunk screw...
- Page 10 Step No. Operation Note Check Attach the cord Overhanging Pull the cord end in the end rail and cord is through the end rail inset and knot it completely together within the end rail Overhangig cord should not be cut immediately after the knot –...
- Page 11 Step No. Operation Note Check Align the stabilizer and screw it with the The end rail of provided drilling screws to the box the roller shutter Screw together the stabilizer with the jacket may not stabilizer foot. be clamped Place the hole caps The roller Place the hole caps according to the shutter is...
-
Page 12: Copyright / References To This Documentation
Copyright / References to this documentation The copyright (copyright ©) for the present documentation is being kept by Schanz Rollladensysteme GmbH as well as partially by the suppliers of the sub vendor documentation. The containing information is solely designed for the operating companies of our roller shutters.
