Summary of Contents for ExamVision PowerGo

Page 2: Table Of Contents
Model Overview This instruction for use is valid for ExamVision light system control unit model: ☐ 20791 PowerGo GTIN: (01) 05744000230009 Content Model Overview.................. 2 Content ....................2 Introduction ..................3 Getting Started ................... 4 Operating PowerGo ................5 Battery Level Status ................5 Charging Level Status ................
Page 3: Introduction

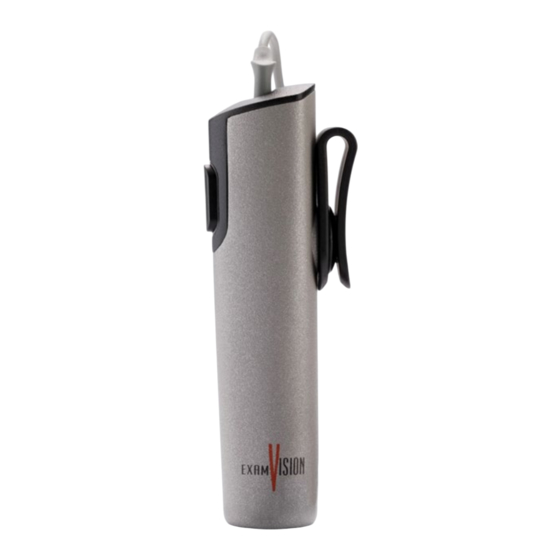

PowerGo is designed with a rotatable belt clip and a single combined power/control button large enough to be operated with the forearm or the palm of the hand.
Page 4: Getting Started
Connect the USB-C the framepart. connector to the lamp unit. Fix the cable on Connect the USB-C connector to the right or left temple. PowerGo. For more information about your headlamp please follow the IFU for your ExamVision light system headlamp.
Page 5: Operating Powergo
100 % Slow pulsing green Continuously green CAUTION USB-C power supply connected to PowerGo must be certified to the IEC • standards IEC 60950/ IEC 62368-1 or IEC 60601-1 • USB-C power supply connected to PowerGo must be rated 5VDC, 2.0- 2.5A”...
Page 6: Service Charging
Service Charging If the PowerGo unit isn’t used for longer periods, the PowerGo unit must be stored according to the technical description and the battery should be service charged every 3 months. Perform the charging process stated in “Operating PowerGo” and let the unit charge to a minimum of 20 %.
Page 7: Cautions
Do not attempt to repair or modify your ExamVision product yourself. Do not short-circuit your ExamVision product. Should the device become damaged or not work properly, you should not use the device and contact your ExamVision dealer for help. Your ExamVision light system headlamp and control unit are not designed to be immersed in water.
Page 8: Symbol Explanation
Symbol explanation Manufacturer: ExamVision ApS. Industrivej 11, 8305 Samsø Denmark. www.examvision.com Catalogue number: 20791 PowerGo Non-sterile Do not use if package is damaged Fragile, Handle with care Keep away from sunlight Keep dry Read the instructions for use before using the product: https://examvision.com/support/...
Page 9 Unique device identifier GS1: GTIN + Serial No. For indoor use only MR Unsafe WEEE - DIRECTIVE 2012/19/EU Disposal product as electronic waste CE Mark Storage temperature range Humidity range Atmospheric pressure range...
Page 10: Warranty
Warranty All ExamVision products come with a comprehensive warranty as standard. PowerGo - Unit is covered by a 3-year manufacturer warranty. PowerGo – Internal battery is covered by a 1-year manufacturer warranty. This warranty covers all manufacturing defects which might manifest within the warranty term.
Page 11: Technical Description
Battery Capacity 4.9 - 5.0 Ah Battery Voltage 3.6 VDC Discharge Cut-off Voltage 3.2 VDC PowerGo Unit 3 years Warranty PowerGo Battery 1 year Operation temperature range 0 °C-25 °C -20°C - 60°C Storage temperature range >3 month -20°C- 45°C 12 month -20°C- 25°C...
Page 12 Atmospheric pressure range 70 kPa – 106 kPa Flicker Free Light Features Rotatable belt clip Easy-to-operate Power button Over-current protection Product information Over-voltage protection Accessories & Spare parts Description Catalogue no. PowerGo Pocket Stabilizer 21004...
Page 13 Technical information The manufacturer declares that this product is complaint with the following regulations, standards, and certifications: MDR EU 2017/745 European medical device regulation IEC 60601-1:2005 + A1:2012 + A2:2020 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance IEC 60601-1-2:2014 + A1:2020 Medical electrical equipment - Part 1-2: General requirements for basic safety and essential performance -...
Page 14 Technical Data Phenomenon Test Emission class and group/ method Immunity test level Conducted RF CISPR 11 Class A Group 1 emissions NOTE The EMISSIONS characteristics of this equipment make it suitable for use in industrial areas and hospitals (CISPR 11 class A). If it is used in a residential (for which CISPR ENVIRONMENT...
Page 15 Phenomenon Test Emission class and group/ method Immunity test level Radiated RF CISPR 11 Class A Group 1 emissions NOTE The EMISSIONS characteristics of this equipment make it suitable for use in industrial areas and hospitals (CISPR 11 class A). If it is used in a residential (for which CISPR ENVIRONMENT...
Page 16 Immunity to IEC 61000- 385 MHz, 27 V/m, 18 Hz PM proximity fields (50 % duty cycle square wave) from RF 450 MHz, 28 V/m, FM +/- 5 wireless kHz dev., 1 kHz sine communication 710 MHz, 9 V/m, 217 Hz PM equipment (50 % duty cycle square wave) 745 MHz, 9 V/m, 217 Hz PM...
Page 17 Phenomenon Test Emission class and group/ method Immunity test level Electrical fast IEC 61000- ±2 kV (100 kHz) transient/burst immunity Surge immunity IEC 61000- ±1 kV Immunity to IEC 61000- 0.15-80 MHz, 3 V (6 V ISM conducted bands), 80 % AM 1 kHz disturbances induced by RF fields...
