Summary of Contents for Link-One Group Link Station

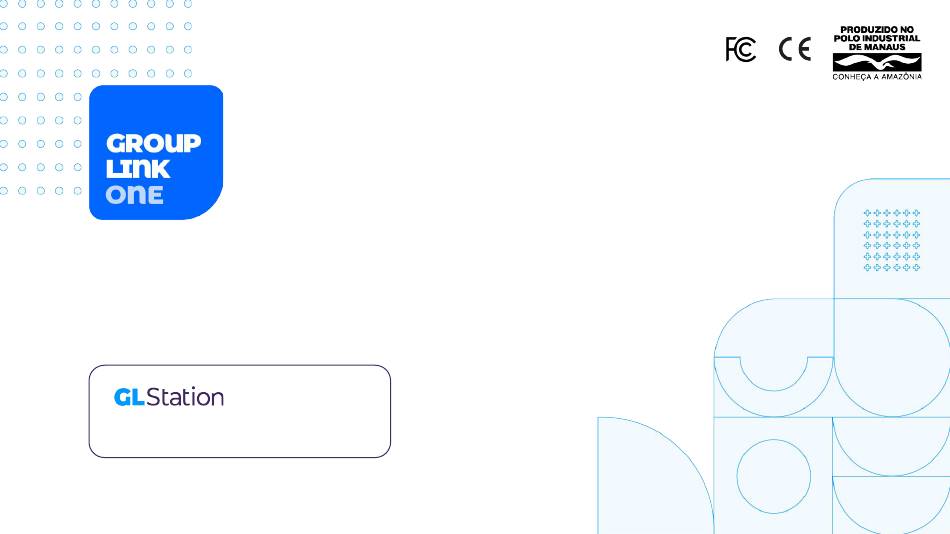

Page 1 Transcend USER GUIDE • EN...
Page 2: Table Of Contents
Table of contents About Application Product Speciﬁcation Installing the GL Station Conﬁguring the GL Station Appendix...
Page 3: About
About Group Link Station is a Plug & Play IoT Sensor capable of identifying users remotely and impacting them with real-time notiﬁcations. It works together with other Group Link devices where its main purpose is to obtain data from these devices and send it directly to the cloud server via HTTPS protocol.
Page 4: Application
Transcend IoT Application Advertising data via bluetooth Enabled devices HTTPS Ethernet/ Wiﬁ Internet Gateway Server scanning and getting the data GL Station Gateway Product notes • The gateway only scans devices enabled for Group Link; • The gateway uploads scanned data only to the Group Link cloud server in a one-way manner; •...
Page 5: Product Specification
Product Speciﬁcation GL Station Product Micro USB power supply* 5V/1A PoE power supply* 48V/1A Bluetooth standard BLE 4.2 Bluetooth frequency operation 2.4GHz Bluetooth TX power +19.5dBm IEEE 802.11B Wi-Fi Standard IEEE 802.11G IEEE 802.11N WPA2 Wi-Fi encryption WPA2-Enterprise Wi-Fi TX power +13dBm *Only one power supply (USB or PoE adapter) is required, which is not supplied with the product...
Page 6 Status do LED Fading Fixed Color No network Wi-Fi connected without Wi-Fi connected with WHITE internet access internet access Ethernet connected Ethernet connected BLUE with internet access without internet access GREEN Wi-Fi and Ethernet Wi-Fi and Ethernet connected, with connected, without internet access internet access Document version...
Page 7: Installing The Gl Station
Transcend IoT Installing the...
Page 8: Operating Procedures
Transcend IoT Operating Procedures Power input through Micro USB Step 1 Connect the GL Station to the internet through Ethernet or Wi-Fi Step 2...
Page 9: Configuring The Gl Station
Transcend IoT Conﬁguring the GL Station...
Page 10 Transcend IoT Wi-Fi Conﬁguration Power on GL Station Step 1 Using a PC or mobile phone, Step 2 open Wi-Fi settings and search for the GL Station SSID among listed networks, indentiﬁed by the following format: GLStation_XXXXXXXX...
Page 11 Transcend IoT Wi-Fi Conﬁguration Click on it and insert the following password: grouplink Step 3 connecting to GL Station device...
Page 12 Transcend IoT Wi-Fi Conﬁguration Use a web browser to open the IP address: http://10.10.0.1 Step 4...
Page 13 Transcend IoT Wi-Fi Conﬁguration Choose a network in the list Step 5...
Page 14 Transcend IoT Wi-Fi Conﬁguration Insert the password, click enter and wait Step 6...
Page 15 Transcend IoT Wi-Fi Conﬁguration A message will indicate if the connection was successfully established. Step 7...
Page 16: Appendix
Transcend IoT Appendix...
Page 17: Ce Declaration Of Conformity
Transcend IoT CE Declaration of Conformity Certiﬁcates Directive RoHS (2011/65/EU) EN IEC 63000:2018 Directive Low Voltage (2014/35/EU): EN IEC 62311:2020; EN IEC 62368-1:2020+A11:2020 Directive Electromagnetic compatibility (2014/30/EU): EN 301 489-1 V2.2.3; EN 301 489-17 V3.2.4 Directive Radio Equipment (2014/53/EU): EN 300 328 V2.2.2 Authorized Representative GL NETWORK EUROPE LDA Head Ofﬁce:...
Page 18: Fcc Warning Statement
Transcend IoT FCC Warning Statement Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 19 Transcend IoT IC Warning This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.
Page 20 Transcend IoT Avertissement IC Cet appareil est conforme aux normes RSS sans licence d’Industrie Canada. L’opération est soumise aux deux conditions suivantes: (1) cet appareil ne doit pas causer d’interférences, et (2) cet appareil doit accepter toute interférence, y compris celle susceptible de provoquer un fonctionnement indésirable de l’appareil.
Page 21 +55 11 9.1162.6684 Rua Gomes de Carvalho, 1510 suporte@grouplinknetwork.com 12º andar Vila Olímpia www.grouplinknetwork.com São Paulo • Brazil...
