Summary of Contents for Airvent DXR

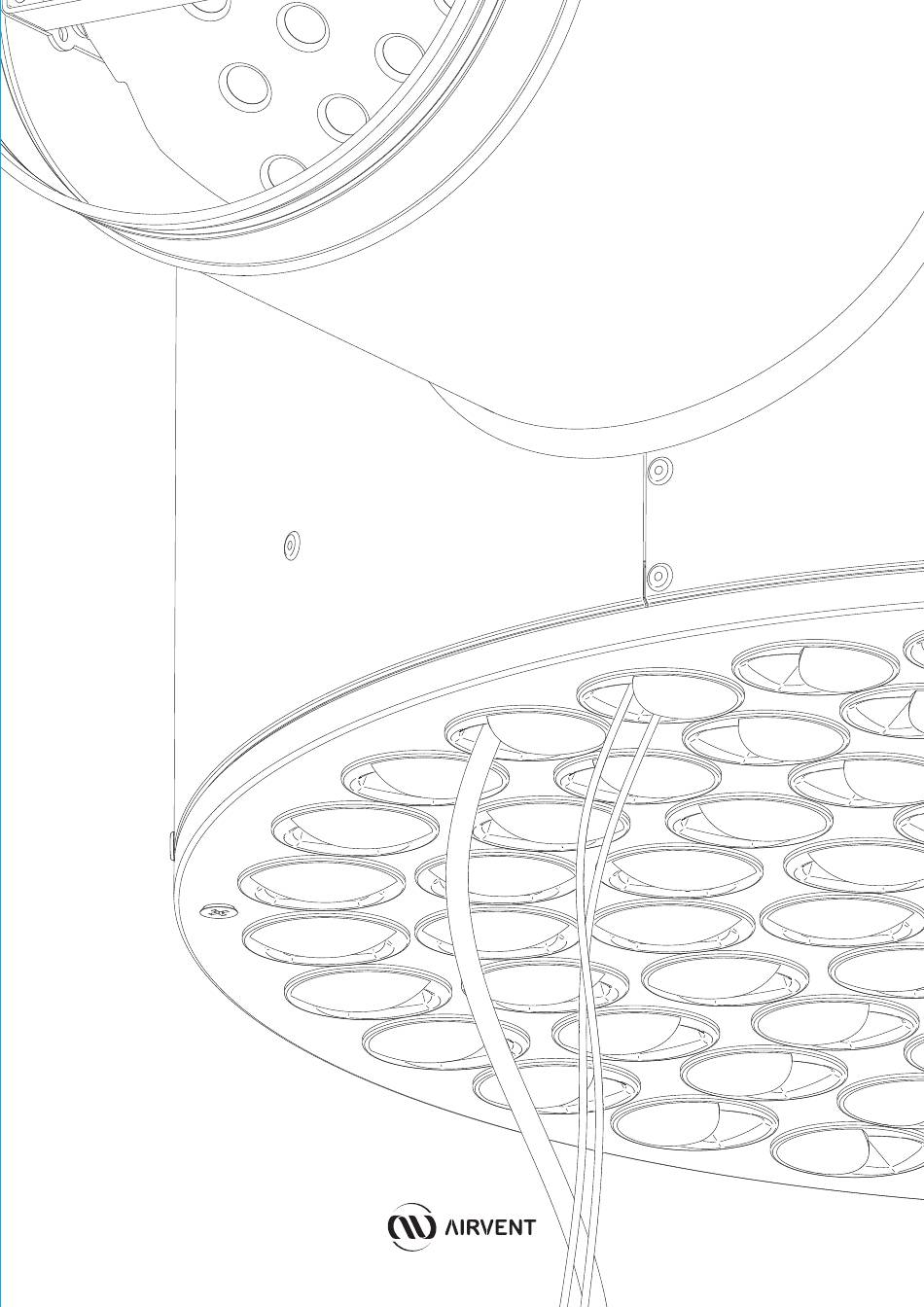

- Page 1 Exposed supply air diffuser Manual...
-
Page 2: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . © Airvent – 2024. July – We reserve the right to change. -
Page 3: Shipping Condition
Shipping condition Figure 01 - Shipping condition 3 / 10... -
Page 4: Installation
The following number of persons and tools are required for the installation of the product. 13-14 mm Mounting the DXR diffuser To install the DXR, first remove the front panel. Unscrew the screws near the connector and its surroundings, and lastly the one oppo- site the connector (See: Figure 02). Warning! The screws are secured against falling out, do not remove them! Figure 02 - Mounting the DXR 1/3 - Removing the front panel... - Page 5 When selecting the dowel or plug, consider the weight of the product! (See: Dimensions) Max 13 mm Figure 04 - Mounting the DXR 3/3 - Securing the product to the connector After connecting to the air duct, also secure the product with 2 self-drilling metal screws ensuring an airtight seal. Ensure that the screw entering the connector does not obstruct the removal and reinsertion of the damper.
-
Page 6: Maintenance
DXR Exposed supply air diffuser – Manual Maintenance Safety precautions Protective gloves We recommend wearing protective gloves during the installation and maintenance of the product to avoid potential injuries. Required personnel and tools The following number of persons and tools are required for the maintenance of the product. - Page 7 Figure 06 - Removing the damper Clean the deflector, damper, and duct with a vacuum cleaner, dry cloth, or feather duster. After cleaning, reassemble the parts in reverse order. Figure 07 - Proper position of the white cord Figure 08 - The arrow engraved on the stop tab should point downwards!
-
Page 8: Dimensions
DXR Exposed supply air diffuser – Manual Dimensions ød N ø9 øA Figure 09 - DXR dimensions DXR dimensions ød N øA Weight (kg) 50,5 110,5 132,7 129,5 148,5 362,5 149,5 174,5 209,5 52,5 8 / 10... -
Page 9: Nozzle Positions
Nozzle positions Figure 10 - Nozzle positions 9 / 10... - Page 10 www.airvent.eu...
