Model: U6066
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
parts that may have come loose inside the carton during shipment
NO.
DESCRIPTION
SEAT OF
A
LSF POWER
RECLINER
B
BACK REST
Step 1:
Attach back rest of LSF power recliner
(B) to seat of LSF (A) as shown below
diagram .
ASSEMBLY INSTRUCTIONS
PARTS LIST
SKETCH
B
A
QTY
NO.
DESCRIPTION
1 PC
C
ADAPTER
1 PC
Step 2:
Rotate the connecting hardware
straightout as shown in the diagram w/90
degree which used to combine the chairs
togetheras step 3.

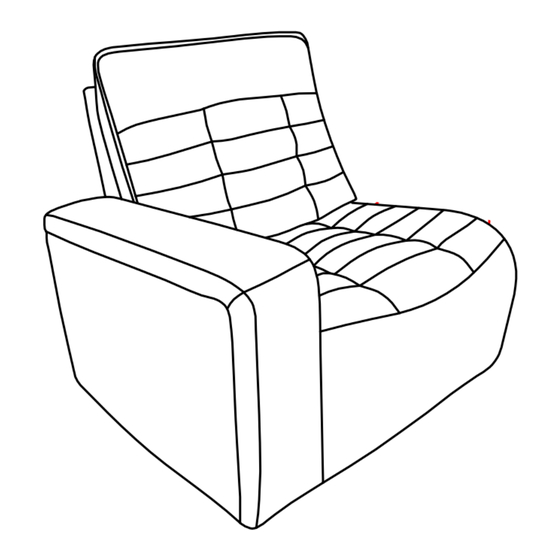

Description: Left Arm Facing Power.
PARTS LIST
SKETCH
Made in Vietnam
QTY
1 PC
1 OF 3
Advertisement
Summary of Contents for GF U6066
- Page 1 ASSEMBLY INSTRUCTIONS Model: U6066 Description: Left Arm Facing Power. Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may have come loose inside the carton during shipment PARTS LIST PARTS LIST...
- Page 2 ASSEMBLY INSTRUCTIONS Model: U6066 Description: Left Arm Facing Power. Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may have come loose inside the carton during shipment Step 3: Align with the front of each chair and push it to others as below diagram.
- Page 3 ASSEMBLY INSTRUCTIONS Model: U6066 Description: Left Arm Facing Power. Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may have come loose inside the carton during shipment Step 4: Use the Adapter to connect with power, then open the footrest by pressing the power button on/off.
