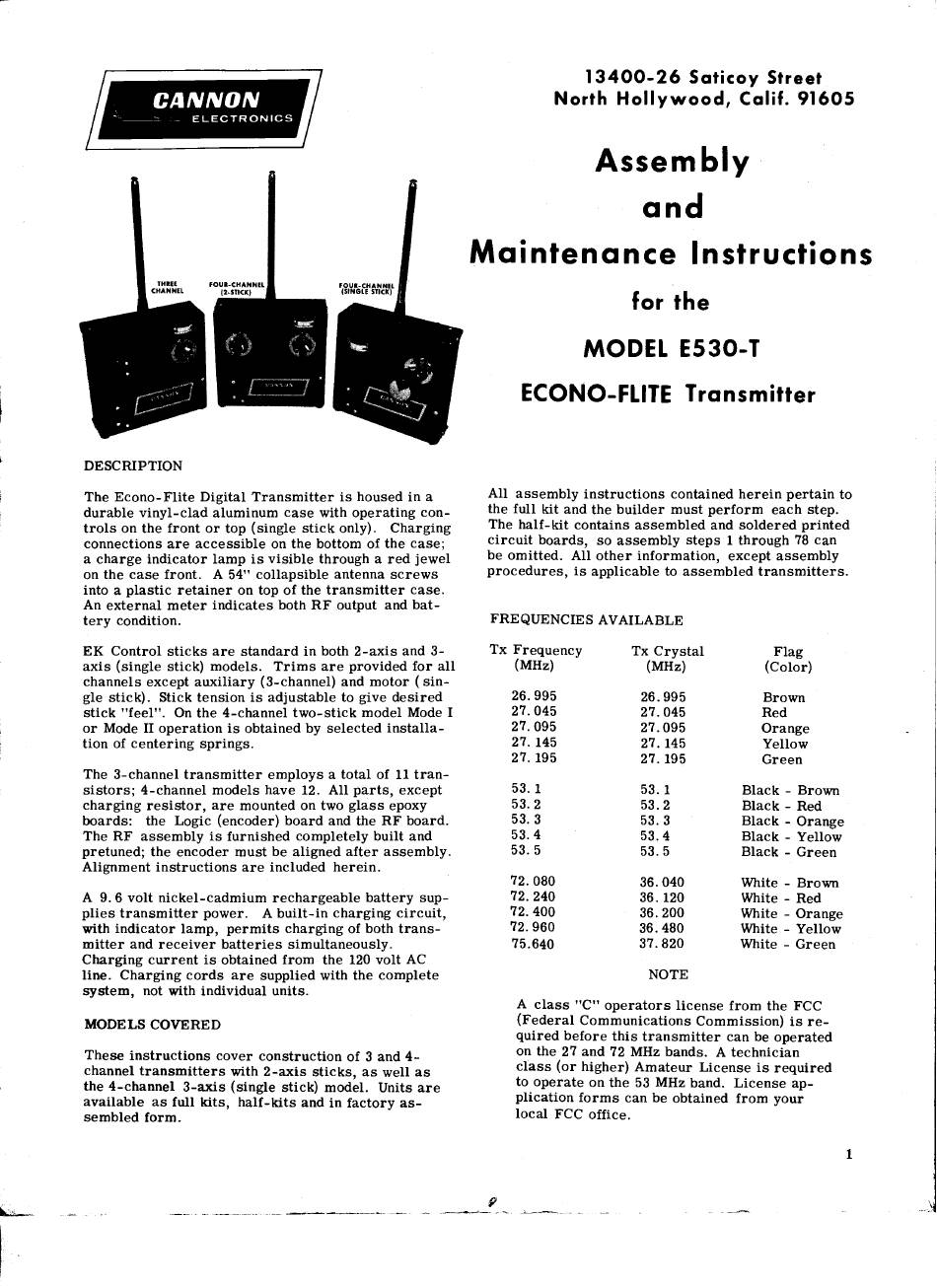

Cannon ECONO-FLITE E530-T Assembly And Maintenance Instructions

r
CANNON
- - - - - ELECTRONICS
THREE
CHANNEL
DESCRIPTION
FOUR-CHANNEL
(2-STICK)
FOUR-CHANNEL
(SINGLE STICK)
The Econo-Flite Digital Transmitter is housed in a
durable vinyl-clad aluminum case with operating con-
trols on the front or top (single stick only). Charging
connections are accessible on the bottom of the case;
a charge indicator lamp is visible through a red jewel
on the case front. A 54" collapsible antenna screws
into a plastic retainer on top of the transmitter case.
An external meter indicates both RF output and bat-
tery condition.
EK Control sticks are standard in both 2-axis and 3-
axis (single stick) models. Trims are provided for all
channels except auxiliary (3-channel) and motor (sin-
gle stick). Stick tension is adjustable to give desired
stick "feel". On the 4-channel two-stick model Mode I
or Mode II operation is obtained by selected installa-
tion of centering springs.
The 3-channel transmitter employs a total of 11 tran-
sistors; 4-channel models have 12. All parts, except
charging resistor, are mounted on two glass epoxy
boards: the Logic (encoder) board and the RF board.
The RF assembly is furnished completely built and
pretuned; the encoder must be aligned after assembly.
Alignment instructions are included herein.
A 9. 6 volt nickel-cadmium rechargeable battery sup-
plies transmitter power. A built-in charging circuit,
with indicator lamp, permits charging of both trans-
mitter and receiver batteries simultaneously.
Charging current is obtained from the 120 volt AC
line. Charging cords are supplied with the complete
system, not with individual units.
MODELS COVERED
These instructions cover construction of 3 and 4-
channel transmitters with 2-axis sticks, as well as
the 4-channel 3-axis (single stick) model. Units are
available as full kits, half-kits and in factory as-
sembled form.
13400-26 Saticoy Street
North Hollywood, Calif. 91605
Assembly
and
Maintenance Instructions
for the
MODEL E530-T
ECONO-FLITE Transmitter
All assembly instructions contained herein pertain to
the full kit and the builder must perform each step.
The half-kit contains assembled and soldered printed
circuit boards, so assembly steps 1 through 78 can
be omitted. All other information, except assembly
procedures, is applicable to assembled transmitters.
FREQUENCIES AVAILABLE
Tx Frequency
Tx Crystal Flag
(MHz)
(MHz)
(Color)
26.995
26.995 Brown
27.045
27.045
Red
27.095
27.095 Orange
27. 145
27. 145 Yellow
27. 195
27. 195
Green
53. 1
53. 1 Black - Brown
53.2
53.2
Black- Red
53.3
53.3
Black- Orange
53.4
53.4
Black - Yellow
53.5
53.5 Black - Green
72.080
36.040
White - Brown
72.240
36. 120 White -Red
72.400
36.200
White - Orange
72.960
36.480 White - Yellow
75.640
37.820
White - Green
NOTE
A class "C" operators license from the FCC
(Federal Communications Commission) is re-
quired before this transmitter can be operated
on the 27 and 72 MHz bands. A technician
class (or higher) Amateur License is required
to operate on the 53 MHz band. License ap-
plication forms can be obtained from your
local FCC office.
1
- -
----~--
