Viz-Art Automation SPAV PRO Quick Start Manual

Advertisement

VIZ-ART SPAV PRO LIFT
Projector lift:
•VIZ-ART SPAV PRO 30/420; •VIZ-ART SPAV PRO 30/780;
•VIZ-ART SPAV PRO 30/1560; •VIZ-ART SPAV PRO 30/1960;
•VIZ-ART SPAV PRO 30/2800; •VIZ-ART SPAV PRO 30/3500;
•VIZ-ART SPAV PRO 30/4200
LIST OF COMPONENTS:
Lift
Ceiling closure panel
Push-button switch
Installation template
Installation manual
Mounting kit

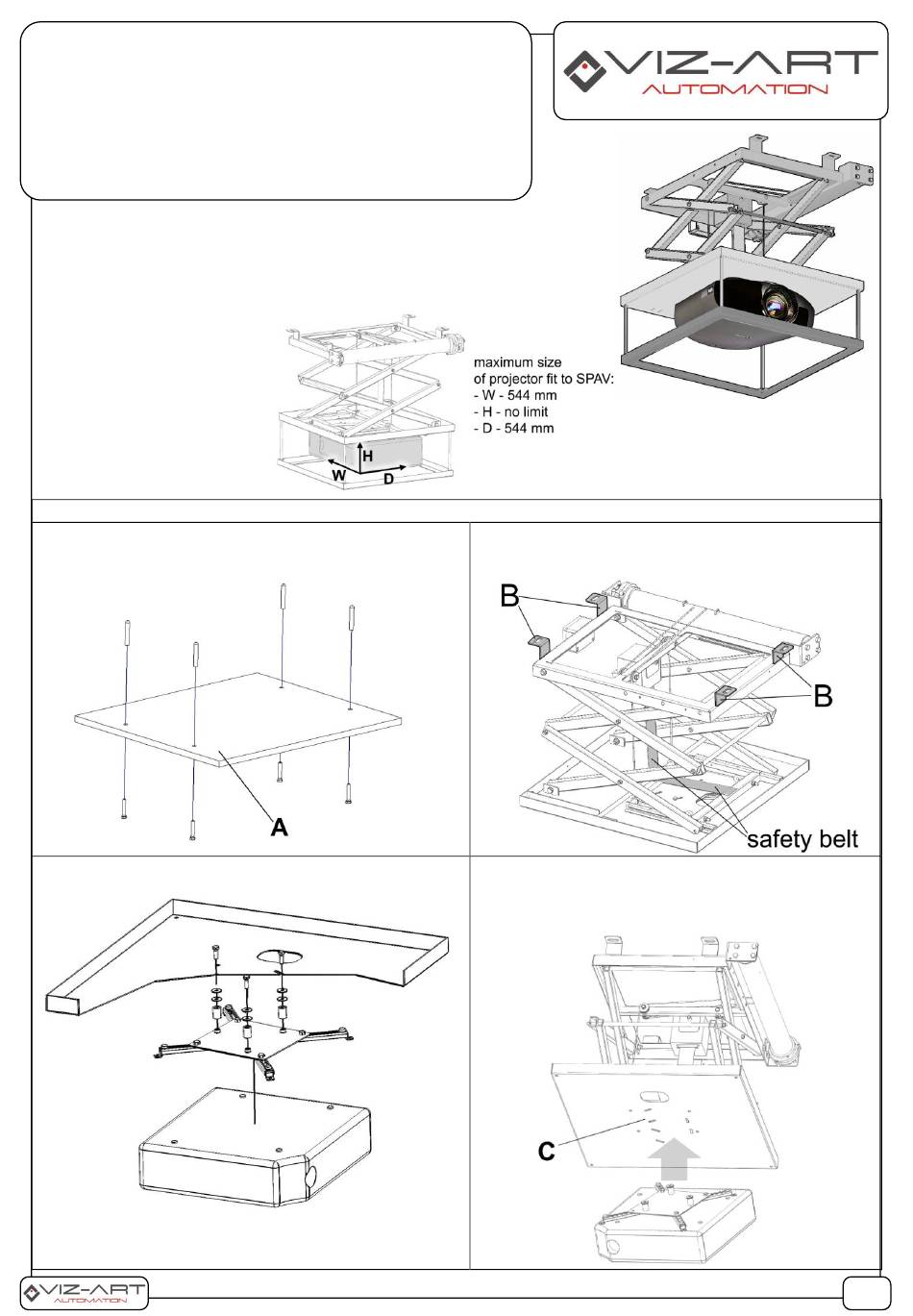

1. INSTALLATION:
A.
Determine the mounting location for the lift in the
structural ceiling using the template (transport plate A). Drill
holes and insert wall plugs (included in the mounting kit).
C.
Install the universal projector bracket using screws included
in the mounting kit.
B.
Raise the lift and fit it to the structural ceiling using
screws (marked B). SAFETY BELT is an additional
safeguard for the lift.
4 points
mounting
system
D.
Mount the projector along with the mounting
component (adaptor) to the base of the lift –
mechanical platform. "C" openings in the platform
allow you to adjust the projector mounting distance.
1/5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPAV PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Viz-Art Automation SPAV PRO

  • Page 1 VIZ-ART SPAV PRO LIFT Projector lift: •VIZ-ART SPAV PRO 30/420; •VIZ-ART SPAV PRO 30/780; •VIZ-ART SPAV PRO 30/1560; •VIZ-ART SPAV PRO 30/1960; •VIZ-ART SPAV PRO 30/2800; •VIZ-ART SPAV PRO 30/3500; •VIZ-ART SPAV PRO 30/4200 LIST OF COMPONENTS:  Lift ...
  • Page 2: Settings And Adjustment

    6-10 mm for each side of the ceiling closure panel. SETTINGS AND ADJUSTMENT: SPAV PRO 30 lift - features: 1. has electronic limit switches that can be set from the floor level 2. has the option of lowering to maximum reach in service mode LIFT CONTROLLER –...
  • Page 3: Protective Measures

    lower threshold and end of programming. The lift can now move between the upper and lower programmed thresholds. SERVICE REMOTE DESCRIPTION: 1. LED diode 2. "PROG" programming button 3. Move “Up” button 4. Move “Down” button SERVICE MODE: It allows you to lower the lift to its maximum reach, bypassing the electronic limit switches. Warning! Lay enough signal and power cords to the projector to allow the lift to fully extend and not damage the cables and sockets on the projector.
  • Page 4: Electrical Connection

    Only persons with appropriate authorization may connect the lift to a 230V power supply. The connection must follow the diagram and the instructions. 6. TECHNICAL DATA: Extension: 420 mm – SPAV PRO 30/420 780 mm - SPAV PRO 30/780 560 mm - SPAV PRO 30/1560 1960 mm - SPAV PRO 30/1960...
  • Page 5: Declaration Of Conformity

    30/780; VIZ-ART SPAV 30/1560; VIZ-ART SPAV 30/1960; VIZ-ART SPAV 30/2800; VIZ-ART SPAV 30/3500; VIZ-ART SPAV 30/4200; VIZ-ART SPAV PRO 30/420; VIZ-ART SPAV PRO 30/780; VIZ-ART SPAV PRO 30/1560; VIZ-ART SPAV PRO 30/1960; VIZ-ART SPAV PRO 30/2800; VIZ-ART SPAV PRO 30/3500; VIZ-ART SPAV PRO 30/4200; VIZ-ART SPAVMAX 60/420; VIZ-ART SPAVMAX 60/780;...
