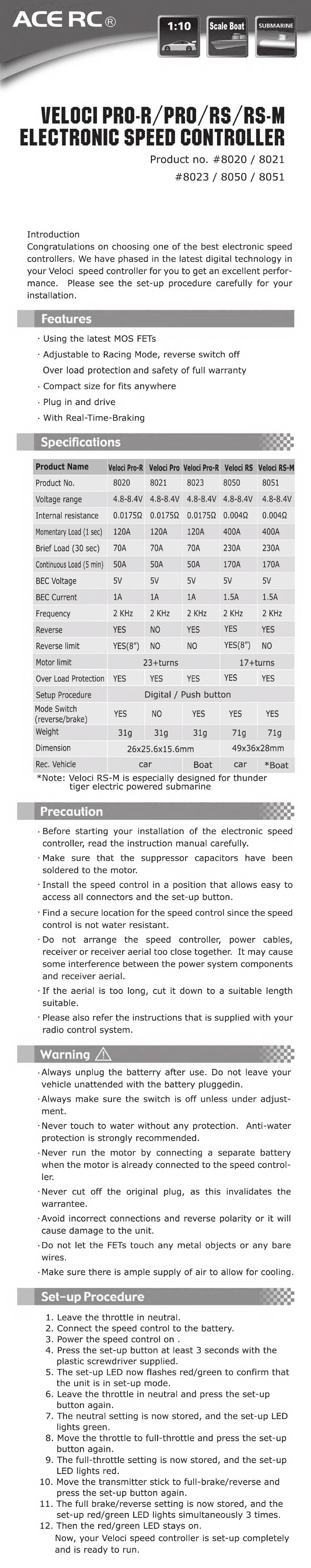

ACE RC VELOCI PRO-R Quick Start Manual

Scale Boat | | susmarine
VELOCI PRO-R/PRO/RS/RS-M
ELECTRONIC SPEED CONTROLLER
Product no. #8020 / 8021
#8023 / 8050 / 8051
Introduction
Congratulations on choosing one of the best electronic speed
controllers. We have phased in the latest digital technology in
your Veloci speed controller for you to get an excellent perfor-
mance. Please see the set-up procedure carefully for your
installation.
- Using the latest MOS FETs
- Adjustable to Racing Mode, reverse switch off
Over load protection and safety of full warranty
- Compact size for fits anywhere
- Plug in and drive
- With Real-Time-Braking
Specifications
Product Name Veloci Pro-R Veloci Pro Veloci Pro-R Veloci RS Veloci RS-M
Product No. 8020 8021 8023 8050 8051
Voltage range 4.8-8.4V 4.8-8.4V 4.8-8.4V 4.8-8.4V 4.8-8.4V
Internal resistance 0.01752 0.01752 0.01752 0.0042 0.0040
Momentary Load (1 sec) 120A 120A 120A 400A 400A
Brief Load (30 sec) 70A 70A 70A 230A 230A
Continuous Load (5 min) 50A 50A 50A 170A 170A
BEC Voltage 5V 5V 5V 5V 5V
BEC Current 1A 1A 1A 1.5A 1.5A
Frequency 2 KHz 2 KHZ 2 KHz 2 KHz 2 KHz
Reverse MES NO YES YES VES
Reverse limit YES(8") NO NO YES(8") NO
Motor limit 23+turns 17+turns
Over Load Protection YES ies YES YES YES
Setup Procedure Digital / Push button
Toae miton YES NO w a e
(reverse/brake)
Weight 31g 31g 31g 71g 71g
Dimension 26x25.6x15.6mm 49x36x28mm
Rec. Vehicle car Boat car *Boat
*Note: Veloci RS-M is especially designed for thunder
tiger electric powered submarine
Precaution
- Before starting your installation of the electronic speed
controller, read the instruction manual carefully.
-Make sure that the suppressor capacitors have been
soldered to the motor.
'Install the speed control in a position that allows easy to
access all connectors and the set-up button.
' Find a secure location for the speed control since the speed
control is not water resistant.
-Do not arrange the speed controller, power cables,
receiver or receiver aerial too close together. It may cause
some interference between the power system components
and receiver aerial.
-If the aerial is too long, cut it down to a suitable length
Suitable.
- Please also refer the instructions that is supplied with your
radio control system.
Warning /\ a
-Always unplug the batterry after use. Do not leave your
vehicle unattended with the battery pluggedin.
-Always make sure the switch is off unless under adjust-
ment.
-Never touch to water without any protection. Anti-water
protection is strongly recommended.
-Never run the motor by connecting a separate battery
when the motor is already connected to the speed control-
ler.
-Never cut off the original plug, as this invalidates the
warrantee.
'Avoid incorrect connections and reverse polarity or it will
cause damage to the unit.
-Do not let the FETs touch any metal objects or any bare
wires.
-Make sure there is ample supply of air to allow for cooling.
Set-up Procedure
1. Leave the throttle in neutral.
2. Connect the speed control to the battery.
3. Power the speed control on .
4. Press the set-up button at least 3 seconds with the
plastic screwdriver supplied.
5. The set-up LED now flashes red/green to confirm that
the unit is in set-up mode.
6. Leave the throttle in neutral and press the set-up
button again.
7. The neutral setting is now stored, and the set-up LED
lights green.
8. Move the throttle to full-throttle and press the set-up
button again.
9. The full-throttle setting is now stored, and the set-up
LED lights red.
10. Move the transmitter stick to full-brake/reverse and
press the set-up button again.
11. The full brake/reverse setting is now stored, and the
set-up red/green LED lights simultaneously 3 times.
12. Then the red/green LED stays on.
Now, your Veloci speed controller is set-up completely
and is ready to run.
