- Page 1 T O P M A S T 3 3 PTZ Camera User's Manual V1.33 www.envirocams.com...
- Page 2 WARNING! Installation and removal of the unit and its accessories must be carried out by qualified personnel. You must read all of the Safety Instructions supplied with your equipment before installation and operation. If the product does not work properly, please contact your dealer. Never attempt to disassemble the camera yourself.
- Page 3 This PORTABLE MOBILE PTZ is designed for rough service and mobile applications. This tough, weatherproof PTZ Camera is completely waterproof to IP66 standards. Compatible with IPC/ONVIF this rugged mobile PTZ camera has been designed to mount in any orientation on: •...
-
Page 4: Key Features

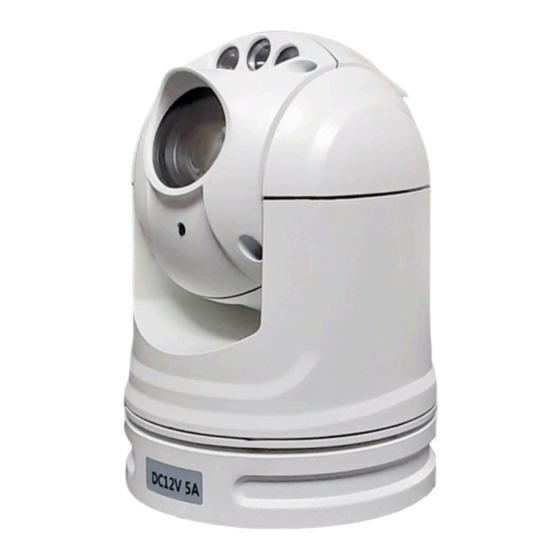

KEY FEATURES 33X Optical Zoom Lens: Ranges from 4.5mm to 135mm, allowing for detailed close-ups and wide-area coverage High-Strength Aluminum PTZ Case: Durable and robust construction. Powerful Auxiliary IR System: Provides a range of 30-50 meters. Optional Infrared or White Light Range: Choose between infrared or white light. - Page 6 ATTENTION Careful Transportation: Protect the product from heavy pressure, strong stacking, and soaking during transportation and storage. The product must be transported in split packages, both when delivered by suppliers and when returned to the factory for debugging. Any damage occurring during transportation after assembly is not covered under the guaranteed repair.
-
Page 7: Main Features
MAIN FEATURES Built-In Decoder: Programmable Digital Design: Retains data or actions after a power outage. Integrated design ensures high reliability. Memory Protection: Automatically resumes its prior position after rebooting from a power outage. Power-Up Memory Function: Settings automatically resume their previous state or action before the power outage, including home position preset, cruising tracks, pattern scan, right and left scan, and frame scan. -
Page 8: Functions Introduction
FUNCTIONS INTRODUCTION Self-Test Power On: When the dome camera is powered on, it automatically moves horizontally and vertically. Auto-Check: The screen displays an auto-check process. It verifies the pan and vertical origin points. If there is an error, the screen will display “horizontal error” or “vertical error.” If the pan and vertical origin points are not checked, inspect the camera. - Page 9 FUNCTIONS CONTINUED Settings and Call Preset Positions Preset Functions: The dome can store the position data of the PTZ’s pan angle, tilt angle, and camera lens zoom. Convenient Adjustment: Users can store and call preset positions using the control keyboard, adjusting the PTZ and camera to the desired position. Support: The dome supports up to 256 preset positions.
-
Page 10: Factory Default Parameters
FACTORY DEFAULT PARAMETERS Camera IP address: 192.168.1.13 Camera Username: admin (all lowercase) Camera Password: Admin123. (Case-Sensitive - Cap. "A", and a period (.) on the end) -
Page 11: Installation
INSTALLATION 5.98 in 8.78 in 2.5 in... -
Page 12: Installation Overview
INSTALLATION OVERVIEW RJ45 Ethernet (ETHERNET RJ 45) Power with 2 terminal rings (DC 12V, GND) Communication control rings (RS 485+, RS485-) CAMERA CONNECTIONS Note: BNC is unused; No Analog Video... -
Page 13: Camera Mounting
CAMERA MOUNTING The Top Mast 33x enclosure can be mounted to a mast mount, pedestal mount or order a rubber-coated magnet kit (Part # - EC-TMMagnets) Take the damper out of package and fix it to the PTZ plate with four correct screws to the four mounting holes, or order our rubber-coated magnet kits (Part # - EC-TMMagnets) to attach to mounting plate. - Page 14 GUARD VIEWER Initial Setup: When you first access the system, navigate to the “Device” section. Select the option to “ADD” a new device. Adding a Device: You have two options to add a device: Auto Search in LAN: This option will automatically search for devices connected to your Local Area Network (LAN).
- Page 15 COMPUTER CONNECTION METHOD Step 1. Open the web page, enter default IP address: http://192.168.1.13 Step 2. Input the authorized username and password. The defaults are: Camera IP address: 192.168.1.13 Camera Username: admin (all lowercase) Camera Password: Admin123. (Case-Sensitive - Cap. "A", and a period (.) on the end) The following page will be shown after correct login authentication “For optimal performance, use Edge in Internet Explorer mode.”...
