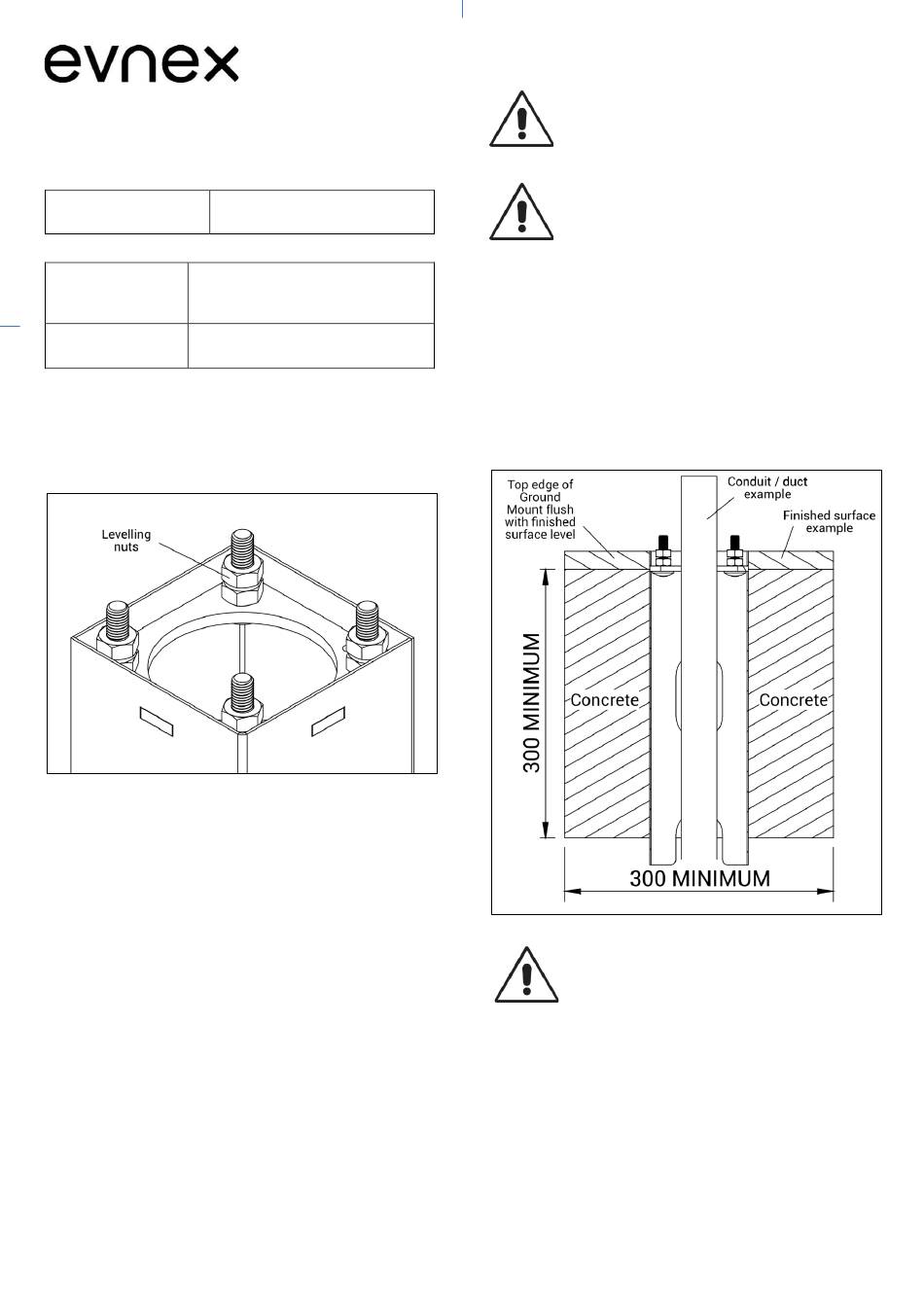

Evnex V230731 Installer's Manual

Ground Mount Base Installer Guide – V230731
This document is intended as a guide only and should be read along
with the relevant Pedestal Installer Guide. Please refer to appropriate
electrical and civil standards as required.
• LEVEL
As well as standard
• 17mm SPANNER OR SOCKET
installation tools, the
following is required:
• Ground Mount Base Installation Guide
Ground Mount Base
• 4 x M10 x 40 Stainless Coach Bolt
install kit contains:
• 4 x M10 x 21 Stainless Washer
• 12 x M10 Stainless Hex Nut
• Cover Assembly (for installations that
Optional
will not have a pedestal installed
immediately)
1. Assemble Ground Mount Base
For installations that will have pedestals installed immediately*, secure
bolts as shown below:
*For installations that will not initially have a pedestal installed, see
Cover Assembly section.
2. Setting the Ground Mount Base in place
The Ground Mount Base must be concreted in place
according to local building codes
Minimum recommended concrete footing 0.3m
60kg of concrete when installed in compacted AP20 or
AP40. Non-compacted soil may require a significantly
larger footing.
It is recommended that the top edges of the Ground Mount Base are
positioned flush with the top of the finished surface as shown below -
unless the base of the Pedestal is to be hidden below a finish such as
gravel or chip.
The Ground Mount Base must be installed level and in the correct
orientation. A limited amount of levelling can be achieved with the
provided nuts. Evnex pedestals can be rotated in 90° increments to
achieve required orientation.
For immediate installations, extending the conduit above ground level
is recommended (note that this will prevent the optional Cover
Assembly being fitted).
Concrete should enter the side entries of the Ground
Mount Base and fill at least half of the internal void.
3
or c.
