Recommended 2+ People for the install.
Recommended attach the included tip restraint prior to shelf installation.
Included:
•
4x Shelf Hanger Clips
•
1x 1.5mm Allen Wrench
•
1x 2.5mm Allen Wrench
•
1x 3.0mm Allen Wrench
Recommended Additional Tools:
•
Tape Measure
•
Level
Installation Steps
1. (Optional but recommended) Remove the case doors
a. Unlock the case, lift up on each individual door and tilt the bottom of the glass outward
to remove the doors.
2. Remove the hanging shelf hardware from the included kit.
a. Ensure the kit contains all the items listed in "Included"

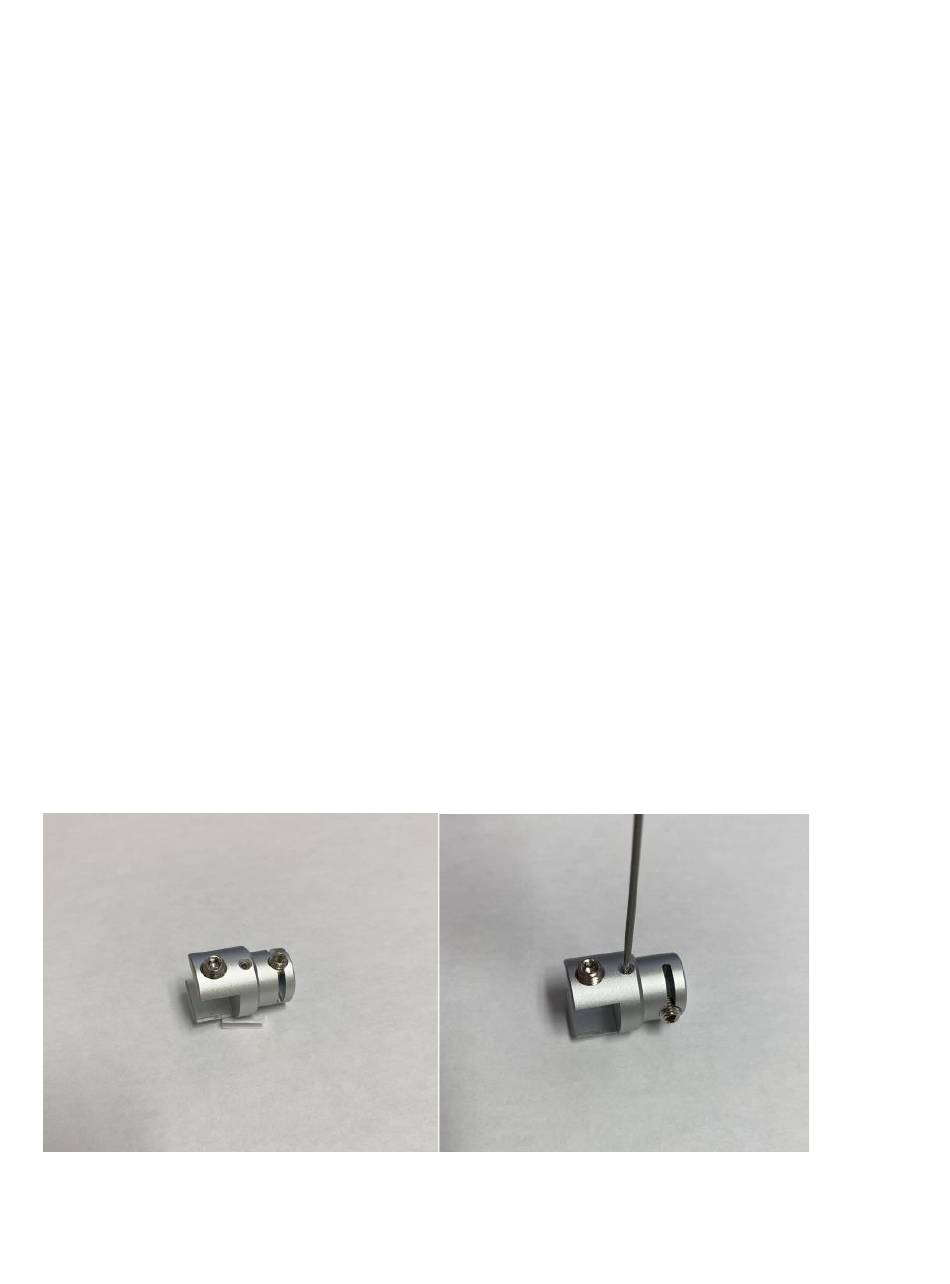

3. Inspect the Clips
a. Remove the "Clocking" screw (1.5mm). This will allow you to rotate the portion of the
clip that retains the glass relative to the wire. Set these at roughly 90° from the
orientation of the wire.
i. The orientation of these can be adjusted later to properly match the shelf.
b. Remove the wire retention screw (2.5mm) from each clip prior to installation.
Hanging Shelf Installation Guide
Advertisement
Summary of Contents for Waddell Solutions Group 374 Series
- Page 1 Hanging Shelf Installation Guide Recommended 2+ People for the install. Recommended attach the included tip restraint prior to shelf installation. Included: • 4x Shelf Hanger Clips • 1x 1.5mm Allen Wrench • 1x 2.5mm Allen Wrench • 1x 3.0mm Allen Wrench Recommended Additional Tools: •...
- Page 2 c. Back the shelf retention screw (3.0mm) most of the way to allow for the shelf to be inserted later. 4. Measure to the desired height for the shelf a. (Optional) Mark the wire with a marker at the desired height. i.
- Page 3 5. Install the clips in the desired positions. a. Tighten the wire retention screw to a “Hand Tight” point. It is not recommended that you fully tighten these at this point as you may deform the wire prematurely.
- Page 4 6. Install the shelf a. Carefully install the shelf sliding it into each the of clips. While one person holds the shelf in position have another person tighten the shelf retention screw. i. Note: you may need to adjust the “Clocking” of the shelf retention portion of the clip relative to the wire for the shelf to sit flush on the clip.
- Page 5 b. Once the clips are properly clocked you can fully tighten the shelf retention screws. c. Gently remove your hold on the shelf to insure the shelf is supported. 7. Leveling the Shelf a. Place a level on the shelf. Check the shelf positioning front-to-back and side-to-side. i.
- Page 6 b. Once the shelf is level, fully tighten the wire retention screws.
