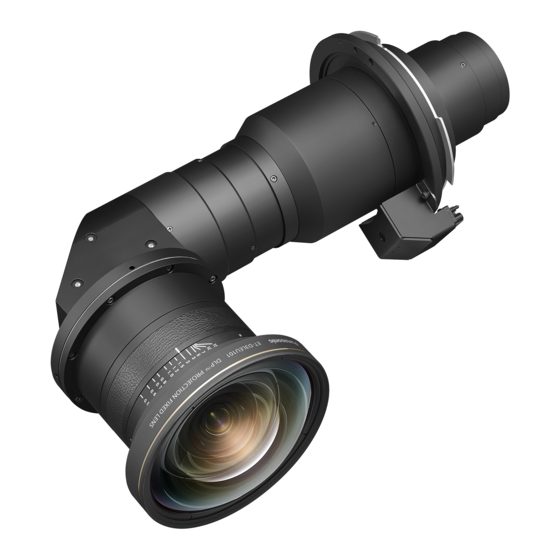

ET-D3LEU101

Read before use

This document is intended for the various projection lenses that can be attached to

and used in conjunction with Panasonic projectors.

For Model No. and model names, refer to the product list ( x page 4).

Thank you for purchasing this Panasonic product.

■ To ensure correct use of this lens, please read the operating instructions supplied

with the lens and the projector carefully.

■ Before using this product, be sure to read "Read this first!" (

■ Please save this manual for future use.

Operating Instructions

Projection Lens

Model No.

Commercial Use

ET-D3LEU101

ET-D3LEW201

Page 3).



DPQX1766ZA/X1

ENGLISH

FRANÇAIS

日本語

Table of Contents

Need help?

Do you have a question about the ET-D3LEU101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic ET-D3LEU101

Page 1 Read before use This document is intended for the various projection lenses that can be attached to and used in conjunction with Panasonic projectors. For Model No. and model names, refer to the product list ( x page 4). Thank you for purchasing this Panasonic product.
Page 2: Table Of Contents
█ Contents Read this first! ..................3 Before Use.....................4 Preparation....................5 Before replacing the projection lens ............5 Attaching and Detaching the Lens ............5 Peripheral focus adjustment function ............6 Lens calibration ..................7 Projection relationships..............10 Lens shift ranges ................15 Specifications ..................17 Dimensions ..................18 Projected image size and Projection distance..Appendix / Annexe / 付録...
Page 3: Read This First
Read this first! Always follow these precautions WARNING: Do not look at or place your skin into the light emitted from the lens while the projector is being used. Doing so can cause burns or loss of sight. z Strong light is emitted from the projector’s lens. Do not look at or place your hands directly into this light.
Page 4: Before Use
Models other than the above may also be supported. Refer to the operating instructions for your projector or the website (https://panasonic.net/cns/projector/). z If the projector you are using is PT-RQ32K / PT-RZ31K / PT-RS30K / PT-RQ22K / PT-RZ21K / PT-RS20K, you may not be able to use the projection lens depending on main version of the firmware.
Page 5: Preparation
Preparation Before replacing the projection lens Return the projection lens to the home position before replacing or removing it. For details on how to return the lens to the home position, refer to the operating instructions of the projector. Attention z Make sure that the projector power supply is switched off before attaching or detaching the projection lens.
Page 6: Peripheral Focus Adjustment Function
This shift in balance tends to increase proportionally with smaller throw ratios. The ET-D3LEU101 / ET-D3LEW201 is equipped with a peripheral focus adjustment function to correct the shift in focal balance between the center and peripheral areas of the screen.
Page 7: Lens Calibration
LENS HOME POSITION z The [LENS CALIBRATION] screen ACTIVE FOCUS OPTIMIZER appears. LENS CALIBRATION z When the ET-D3LEU101 is attached, MENU SELECT a confirmation screen appears when SUB MENU ENTER the <ENTER> button is pressed. In such cases, proceed to step 6.
Page 8 If lens calibration is not performed, the available zoom range of the ET-D3LEW201 will become narrowed. z If ET-D3LEU101 is used on the PT-RQ32K / PT-RZ31K / PT-RS30K, part of the image will be obscured when in the home position. Adjust the lens shift within the lens shift range as described on page 15.
Page 9 Preparation (continued) ■ Case 2 z PT-RQ13K / PT-RZ12K / PT-RS11K Press the <MENU> button. MAIN MENU Use the ▲ and ▼ buttons to PICTURE POSITION select [PROJECTOR SETUP], ADVANCED MENU and press the <ENTER> DISPLAY LANGUAGE button. 3D SETTINGS z The [PROJECTOR SETUP] screen DISPLAY OPTION appears.
Page 10: Projection Relationships
Projection relationships The dimensional relationship between the screen and the projector is shown below. ■ Dimensional relationship diagram Projected image Screen L (LW/LT) Lens optical axis Screen Note z This diagram assumes that the size and position of the projected image will be adjusted so that the image fills the entire screen.
Page 11 Projection relationships (continued) z Dimension for L1 (approximate values) (Unit: m) Dimension for L1 (approximate value) Projector model ET-D3LEU101 ET-D3LEW201 PT-RQ35K / PT-RZ34K 0.285 0.351 PT-RQ25K / PT-RQ18K / PT-RZ24K / PT-RZ17K / PT-RZ14K 0.286 0.352 PT-RQ32K / PT-RZ31K / PT-RS30K 0.26...
Page 12 Projection relationships (continued) Note z The illustrations of projectors in this manual are for informational purposes only and do not represent a specific projector model. Configurations may vary with the model. z If the screen is tilted downward, extend the adjustable feet on the sides of the projector until the projected image is rectangular.
Page 13 Projection relationships (continued) ■ [GEOMETRY] projection range [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen Screen Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above) Screen Screen L2: Projection L2: Projection distance distance R2: Arc radius R2: Arc radius...
Page 14 Projection relationships (continued) z ET-D3LEU101 Only [KEYSTONE] [KEYSTONE] and [CURVED CORRECTION] Only [CURVED used used together CORRECTION] used Projector Vertical Horizontal Vertical Horizontal model keystone keystone keystone keystone Min. value Min. value Min. value Min. value correction correction correction correction...
Page 15: Lens Shift Ranges
Moving the lens outside of the adjustment ranges may alter the focus. This occurs due to limitations in lens movement that are intended to protect the optical components. The following illustrations depict lens shift ranges for floor installations of the projector. z ET-D3LEU101 Projected image width H A[H]...
Page 16 Lens shift ranges (continued) z ET-D3LEW201 Projected image width H A[H] Projector y[H] model PT-RZ31K 0.15 0.48 0.12 0.05 0.35 PT-RQ32K 0.19 0.56 0.24 0.39 PT-RS30K 0.18 0.12 0.14 0.18 Projected image height V Standard projection position Origin position of Obscured part the lens mounter of image...
Page 17: Specifications
Specifications Check the specifications of each projection lens, and use the appropriate lens for your intended use. Model No. ET-D3LEU101 ET-D3LEW201 F number Focal Length (f) 8.0 mm (5/16") 13.8 mm (17/32") - 18.1 mm (23/32") Supported screen size 200" to 600"...
Page 18: Dimensions
Dimensions (Unit: mm) Model number Dimensions ET-D3LEU101 352.7 (13-7/8") 428.7 (16-7/8") 18-ENGLISH...
Page 19 Dimensions (continued) Model number Dimensions ET-D3LEW201 398.5 (15-11/16") 495.0 (19-1/2") ENGLISH-19...
Page 20 4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Importer: Panasonic Connect Europe GmbH English Hagenauer Strasse 43, 65203 Wiesbaden, Germany Authorized Representative in EU: Panasonic Connect Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany Производител: Panasonic Connect Co., Ltd. 4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Япония...
Page 21 4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japón Importador: Panasonic Connect Europe GmbH Español Hagenauer Strasse 43, 65203 Wiesbaden, Alemania Representante Autorizado para la UE: Panasonic Connect Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburgo, Alemania Fabriqué par : Panasonic Connect Co., Ltd.
Page 22 4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Importeur: Panasonic Connect Europe GmbH Nederlands Hagenauer Strasse 43, 65203 Wiesbaden, Duitsland Bevoegde vertegenwoordiger in de EU: Panasonic Connect Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Duitsland Produsert av: Panasonic Connect Co., Ltd.
Page 23 4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonsko Dovozca: Panasonic Connect Europe GmbH Slovenčina Hagenauer Strasse 43, 65203 Wiesbaden, Nemecko Autorizovaný zástupca v EÚ: Panasonic Connect Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Nemecko Proizvaja: Panasonic Connect Co., Ltd. 4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonska Uvoznik: Panasonic Connect Europe GmbH Slovenščina...
Page 24 Manufactured by: Panasonic Connect Co., Ltd. 4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Importer: Panasonic Connect Europe GmbH Hagenauer Strasse 43, 65203 Wiesbaden, Germany Authorized Representative in EU: Panasonic Connect Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany Importer for UK:...
Page 25: Projected Image Size And Projection Distance
Appendix / Annexe / 付録 ■ Projected image size and Projection distance ■ Taille de l'image projetée et Distance de projection ■ 投写画面サイズと投写距離 z ET-D3LEU101 （Unit / Unités / 単位 : m） When the screen aspect ratio is 16:10 PT-RQ25K / PT-RQ18K /...
Page 26 Appendix / Annexe / 付録（continued / suite / つづき）（Unit / Unités / 単位 : m） When the screen aspect ratio is 4:3 PT-RQ25K / PT-RQ18K / PT-RZ24K / PT-RQ22K / PT-RQ32K / PT-RQ13K Lorsque le rapport dʼaspect de l'écran PT-RZ17K / PT-RZ14K Throw ratio / Rapport de projection / スローレシオ...
Page 27 Appendix / Annexe / 付録（continued / suite / つづき） z ET-D3LEW201 （Unit / Unités / 単位 : m） When the screen aspect ratio is 16:10 PT-RQ25K / PT-RQ18K / PT-RQ22K / PT-RQ32K PT-RQ35K / PT-RZ34K / Lorsque le rapport dʼaspect de l'écran PT-RZ24K / PT-RZ17K / Throw ratio / PT-RZ21K / PT-RZ16K /...
Page 28 Appendix / Annexe / 付録（continued / suite / つづき）（Unit / Unités / 単位 : m） When the screen aspect ratio is 4:3 PT-RQ25K / PT-RQ18K / PT-RZ24K / PT-RQ22K / PT-RQ32K Lorsque le rapport dʼaspect de l'écran PT-RZ17K / PT-RZ14K Throw ratio / Rapport de projection / スローレシオ...
Page 29 Appendix / Annexe / 付録（continued / suite / つづき） Note z A ±5 % error in listed projection distances may occur. In addition, when [KEYSTONE] is used, distance is corrected to become smaller than the specified screen size. z The throw ratio is based on the value during projection with the projected image size of 5.08 m (200"). z The periods used in the numbers in the tables are decimal points.
Page 30 Les dimensions du tableau suivant peuvent présenter un léger écart. Les points sont utilisés pour indiquer les décimales dans les formules de calcul dans le tableau suivant. 次の表内の寸法は若干の誤差があります。 z ET-D3LEU101 （Unit / Unités / 単位 : m） When the screen aspect ratio is 16:10 PT-RQ25K / =0.3917 ×...
Page 31 Appendix / Annexe / 付録（continued / suite / つづき） z ET-D3LEW201 （Unit / Unités / 単位 : m） When the screen aspect ratio is 16:10 PT-RQ25K / =0.6798 × SD-0.1001 =0.8910 × SD-0.1076 Lorsque le rapport dʼaspect de l'écran est 16:10 PT-RQ18K / アスペクト比...
Page 32 Two Riverfront Plaza, Newark, NJ 07102 TEL: (877) 803 - 8492 Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 TEL: (905) 624 - 5010 パナソニックコネクト株式会社〒 571-8503　大阪府門真市松葉町２番 15 号　電話 0120-872-601 HS0524AM0 -PS © Panasonic Connect Co., Ltd. 2024 Printed in Japan...

This manual is also suitable for:

Et-d3lew201
