Summary of Contents for eltherm ELKM

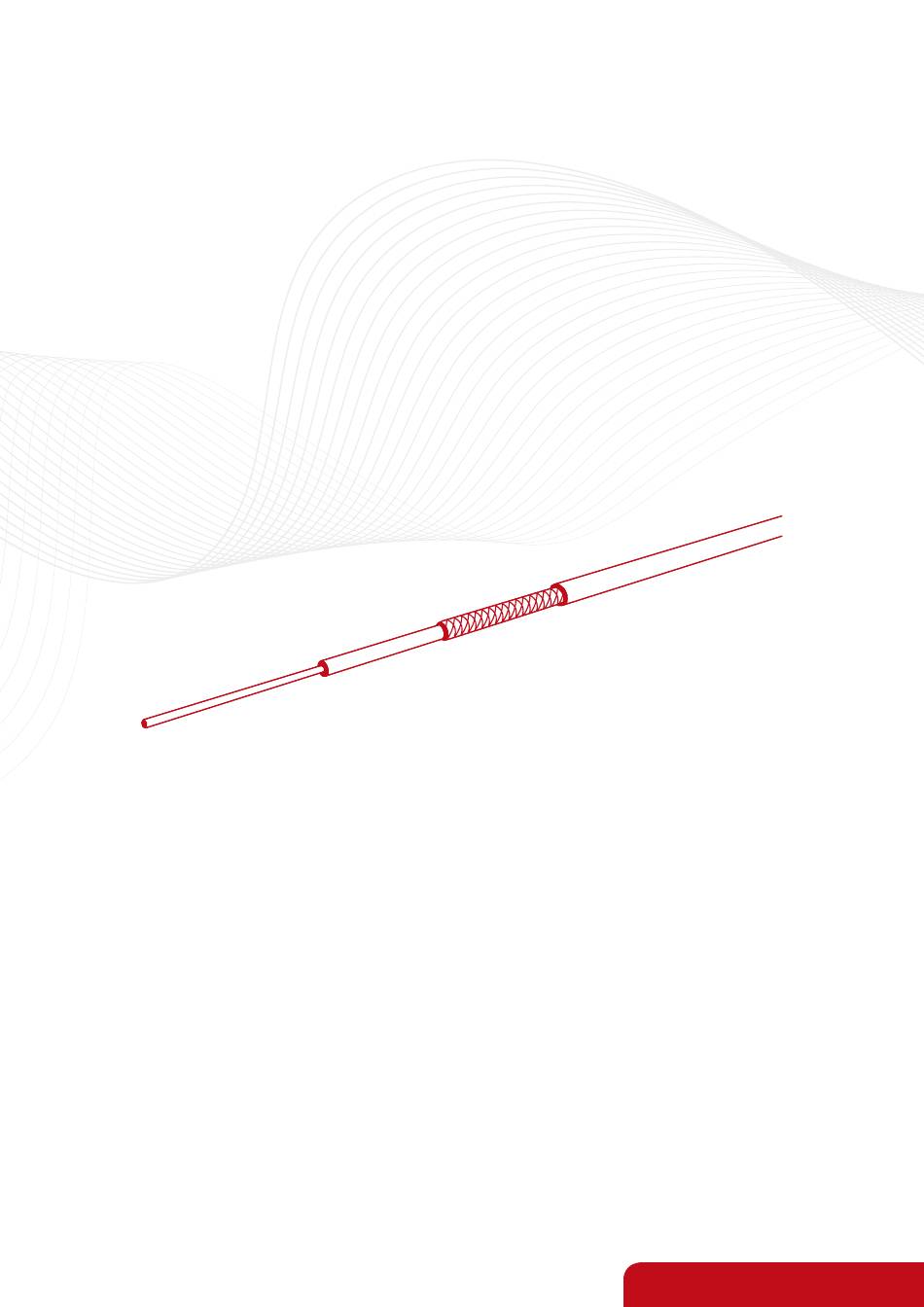

- Page 1 INSTALLATION MANUAL ELKM Installation and operation Fluorpolymer-insulated heating cables eltherm GmbH Ernst-Heinkel-Strasse 6 -10 57299 Burbach, Germany P.: +49 2736 4413-0 QAA 024 F.: +49 2736 4413-50 Rev.09 info@eltherm.com www.eltherm.com...
-
Page 2: Table Of Contents
CONTENTS Topic Page INTRODUCTION GENERAL INFORMATION WARRANTY INCOMING GOODS MARKING STORAGE LENGTH OF HEATING CIRCUIT MOUNTING SAFETY INSTRUCTIONS PREPARATION OF MOUNTING MOUNTING THE HEATING CABLE Preparation of the system Unrolling the heating cable Laying the heating cable Fastening the heating cable to the pipe Fastening the heating cable onto metal braiding Cover the heating cable with metal braiding Attach type plate... - Page 3 QAA 024 Installaton manual ELKM heating cables Revision 09 IMPORTANT INFORMATION - RETAIN FOR LATER USE - FOR DISPOSAL Please follow these instructions for proper and safe use of the The WEEE logo indicates that this product must not be disposed ELKM heating cables.
-
Page 4: Introduction
Carry out all measurements required for the respective materials (e.g. resistance and insulation measurement on eltherm. The desgin of „off the reel“ goods is to be done in the heating cables). accordance with the supplied product data sheet. The given... -
Page 5: Mounting
Installation must be carried out by personnel trained in mm for heating cables without an outer sheath the installation of heating cables. (ELKM-A, -AE, -AS and ELW-VA, -GS, -GN) and 2.5 x cable • Do not crush the heating cable or pull it over sharp diameter for heating cables with an outer sheath edges. -
Page 6: Mounting The Heating Cable
Lay heating cables in a spiral pattern only if the projects planning explicity calls for it. ATTENTION • Observe the specified length allowances in project planing or design (for example in eltherm Designer). Sensor Laying the heating cable on the pipe Heating cable ATTENTION •... -
Page 7: Fastening The Heating Cable To The Pipe
QAA 024 Installation manual ELKM heating cables Revision 09 Fastening the heating cable Fastening the heating cable to the pipe on pipe supports • Fasten the heating cable at intervals of 300 mm. • Use only fastening materials that have been defined as... -
Page 8: Cover The Heating Cable With Metal Braiding
Connect the heating cable to the junction box and carry out an commissioning test and report. eltherm GmbH Ernst-Heinkel-Str. 6-10 • 57299 Burbach, Germany Tel.: +49 (0) 27 36 - 44 13-0 • Fax: +49 (0) 27 36 - 44 13-50 info@eltherm.com • www.eltherm.com... -
Page 9: Inspection Of The Heating Circuit
The electrical connection and termination of the Trace heaters ELK-... and ELW-... generally operate mainte- heating cables must only be carried out using eltherm nance free. However it is recommended that the system be accessories in accordance with the relevant assembly checked by qualified personel in regular intervals for visual instructions. -
Page 10: Available Variants
This document can also be found on the eltherm website. Visit our download area. eltherm GmbH Ernst-Heinkel-Straße 6 -10 57299 Burbach. Germany T.: +49 2736 4413-0 F.: +49 2736 4413-50 info@eltherm.com www.eltherm.com...
