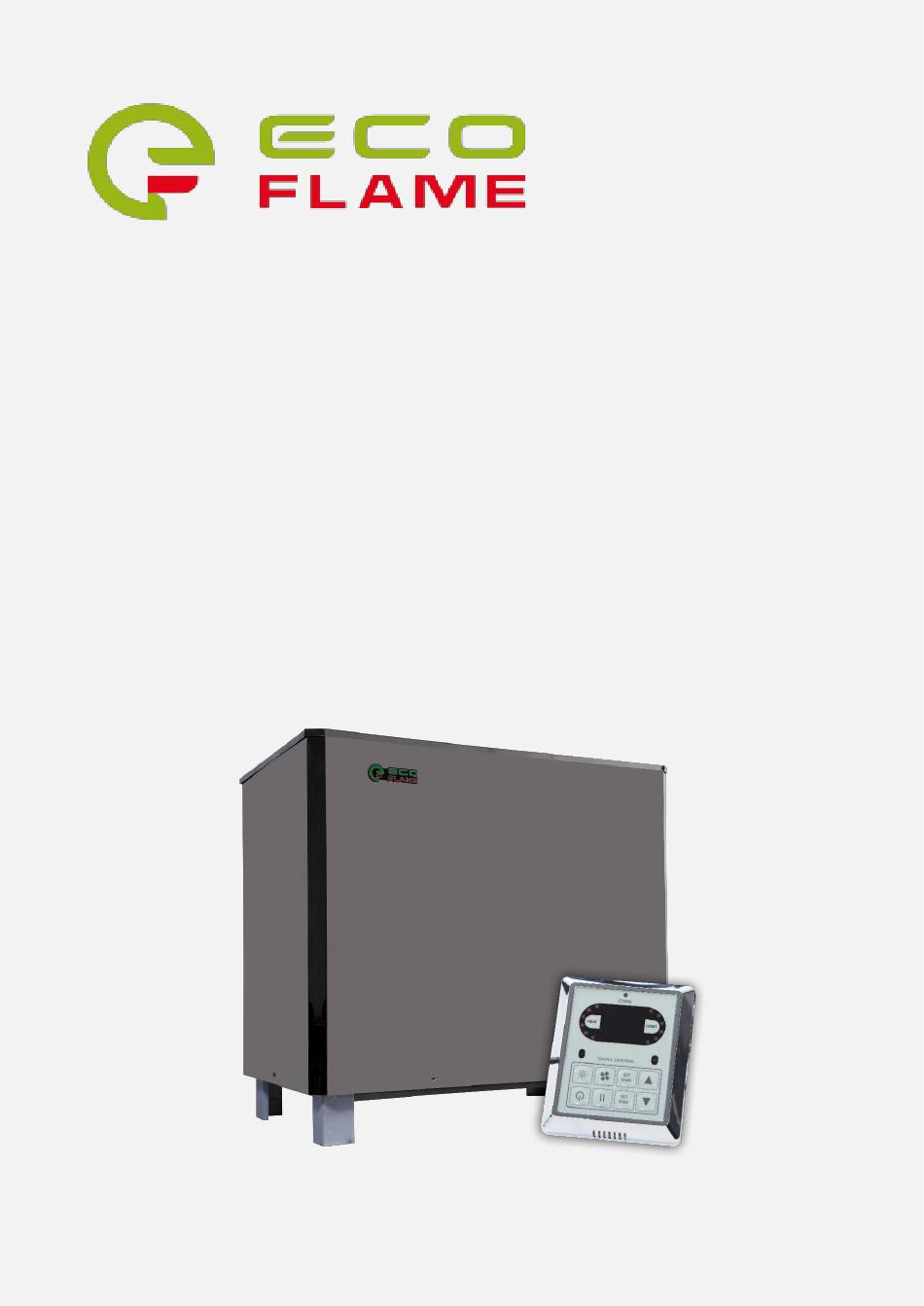

- Page 1 Product manual ELECTRIC SAUNA HEATER SAM 10.5 SAM 12 SAM 15 SAM 18 SAM 21 SAM 25...
-
Page 2: Heater Installation
Welcome to select SAM-B SAUNS HEATER series with rational design , reliable performance， steady effort and convenient installation. Sauna-bathing equipment is composed of SAUNS HEATER and SAUNA ROOM. After SAUNA-bathing, the people feel the flow of spirits, excrete virus in body, release the muscle and also good for keeping healthy. - Page 3 The heater gets very hot when working. To avoid the risk of accidental contact with the heater, it is recommended that a heater guard be provided. The guard is made into many kinds of patterns in accordance with the location places, but some size must be made as the chart 1. Chart 1 The location of heater An electrical supply must do the installation of the heater to ensure safety and reliability.
- Page 4 Chart 3 Pile stones INSULATION The door, ceiling and walls of sauna room must be insulated. When one square meter (m ) of uninsulated surface choose the heater input (refer to table 1), take following as example: 1 cubic volume increases to approximately 1.2m Make sure that moisture-proof is appropriate in SAUNA ROOM.
- Page 5 1. Air supply vent; 2. Optional air supply vent if mechanical exhaust ventilation is used, the opening is located 50cm above the heater; 3. Exhaust air vent; 4. Drying vent, which is closed during heating and bathing, the sauna room can also be dried by leaving the door open after bathing;...
-
Page 6: Heating Elements
Chart 2 Electrical connection Heating elements 380-415V SAUNA HEATER 3N～ 50/60Hz 10.5～15kW N U V W CONTROLLER or CONTROL BOX Heating elements 380-415V SAUNA HEATER 3N～ 50/60Hz 18～25kW CONTROL BOX U V W... - Page 7 MALFUNCTIONS If the heater does not work, check the following: (warning: switch off the heater before checking). 1. Front frame. 2. The heater side frame. 3. Iteming element. 4. Terminal Block (big). 5. Heating element holder with O-rings. 6. Cable holder. 7. Name plate. 8. Leveling governing Bolt. 9.
