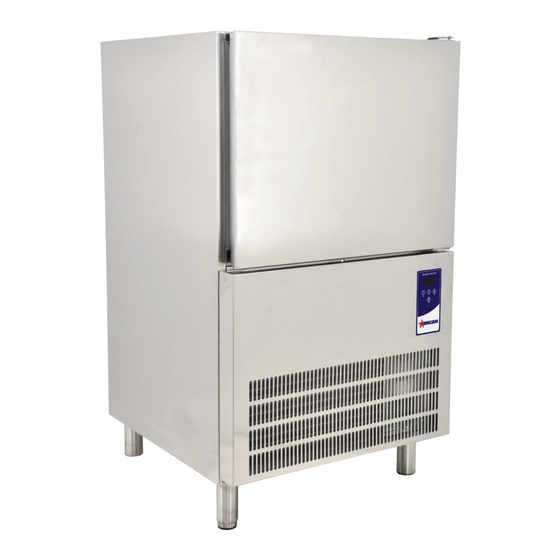

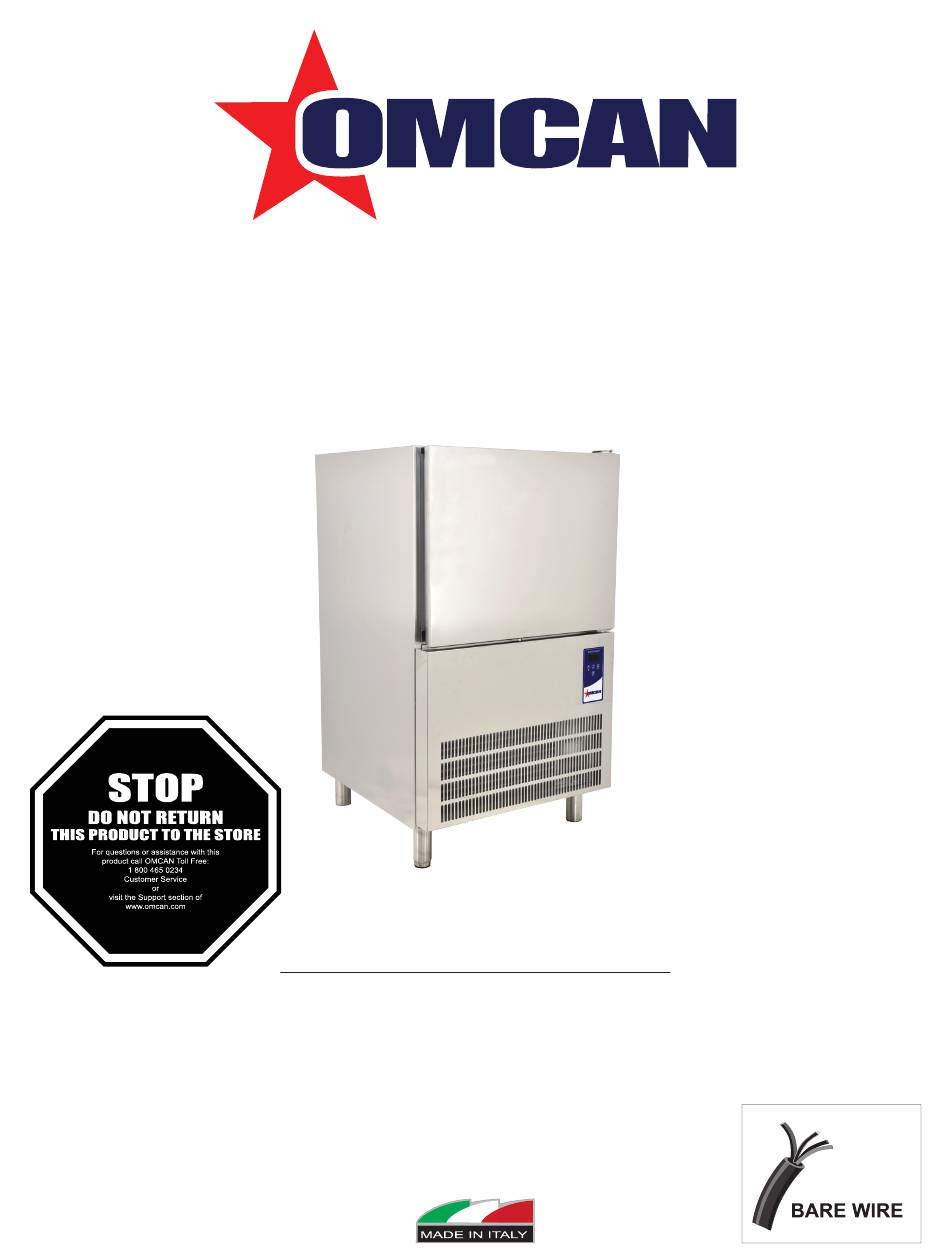

- Page 1 Blast Chillers Models BC-IT-0103, 0906 Items 41899, 41317 Instruction Manual Revised - 11/03/2016 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model BC-IT-0103 / Model BC-IT-0906 Section Page General Information ----------------------------------------------------------------------------------------- 3 - 4 Safety and Warranty ---------------------------------------------------------------------------------------- 4 - 5 Technical Specifications ---------------------------------------------------------------------------------------- 6 Installation ----------------------------------------------------------------------------------------------------- 6 - 7 Operation ----------------------------------------------------------------------------------------------------- 7 - 10 Maintenance ----------------------------------------------------------------------------------------------- 11 - 12... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: Technical Warnings
Shutdown the appliance in the event of a malfunction. For repairs contact Omcan and request the use of original spare parts. If in doubt do not use the appliance and contact Omcan. Not following the above conditions could risk the safety of those using the unit. -
Page 6: Technical Specifications
Technical Specifications Models BC-IT-0103 BC-IT-0906 Exterior Dimensions 620 x 650 x 650mm 820 x 825 x 1400mm 24.4” x 25.6” x 25.6” 32.3” x 32.5” x 55.1” Interior Dimensions 355 x 550 x 280mm 700 x 470 x 490mm 14” x 21.7” x 11”... -
Page 7: Operation
ACCORDING TO THE INSTRUCTIONS GIVEN IN THIS MANUAL, BY PROFESSIONALLY QUALIFIED PERSONNEL. THE ELECTRICAL SAFETY OF THIS APPLIANCE IS GUARANTEED ONLY WHEN IT IS CONNECTED TO AN EFFICIENT GROUNDED SOCKET. OMCAN IS NOT RESPONSIBLE FOR DAMAGES CAUSED BY NOT USING A EFFICIENT GROUNDED SOCKET. -
Page 8: Power Supply
Operation With controller running the cycle: pressing once stops the cycle. NOTE: In any condition the controller may be in, holding down for three seconds switches the controller off. CHILLING KEY: With the controller in standby: pressing once selects a chilling cycle. HARD KEY: With the controller in standby: pressing once selects a hard cycle. - Page 9 Operation SELECTION OF A CHILLING CYCLE With the controller in the standby status, press the CHILLING key. The TEMPERATURE icon and the CHILLING icon will flash. The display shows the temperature of the cell probe. Press the STANDBY key to start running the cycle.
- Page 10 Operation shows the temperature of the cell probe. During conservation, the set point is -18°C/-0.4°F. The maximum admissible time which can be reached by the product probe of the set point can only be established in 240 minutes. If these times are exceeded when switching over to conservation, the display shows the cell probe temperature, while the TIME icon flashes to indicate that the time has been exceeded.
-
Page 11: Errors And Alarms
Maintenance ERRORS AND ALARMS Er 1: Cell probe failure. In standby mode, it prevents the start-up of chilling/freezing. In the chilling/freezing modes it stops the cycle and the controller goes back to standby mode. In the conservation mode, the cycle is not stopped and the compressor is activated in cycles. - Page 12 “comb” the coil with the appropriate tool until the original condition is regained to optimize the air flow. POWER CABLE: Check that the power cable that connects the appliance to the power socket is not cut, cracked or altered in any way as to compromise the insulation. Contact Omcan if the power cable requires maintenance. REFERENCE...
-
Page 13: Parts Breakdown
Parts Breakdown Model BC-IT-0103 41899... - Page 14 Parts Breakdown Model BC-IT-0103 41899 Item No. Description Position Item No. Description Position Item No. Description Position 42066 Door Bush for BE-103L-HSO 42075 Filter 50x6mm for BE-103L-HSO 42115 Pressure Switch for BE-103L-HSO 42067 Black Feet for BE-103L-HSO 42105 Liquid Receiver 0.8 LT for BE-103L-HSO...
- Page 15 Parts Breakdown Model BC-IT-0906 41317...
- Page 16 Parts Breakdown Model BC-IT-0906 41317 Item No. Description Position Item No. Description Position Item No. Description Position Stainless Steel Flat Grate Zhiel for 42092 Door Bush for BE-906T-LDO 42102 Conic Orifice for BE-906T-LDO 42112 BE-906T-LDO 42093 Round Magnet for BE-906T-LDO 42103 Filter for BE-906T-LDO 42113...
-
Page 17: Electrical Schematics
Electrical Schematics Model BC-IT-0103 41899 Model BC-IT-0906 41317... -
Page 18: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 19: Product Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
