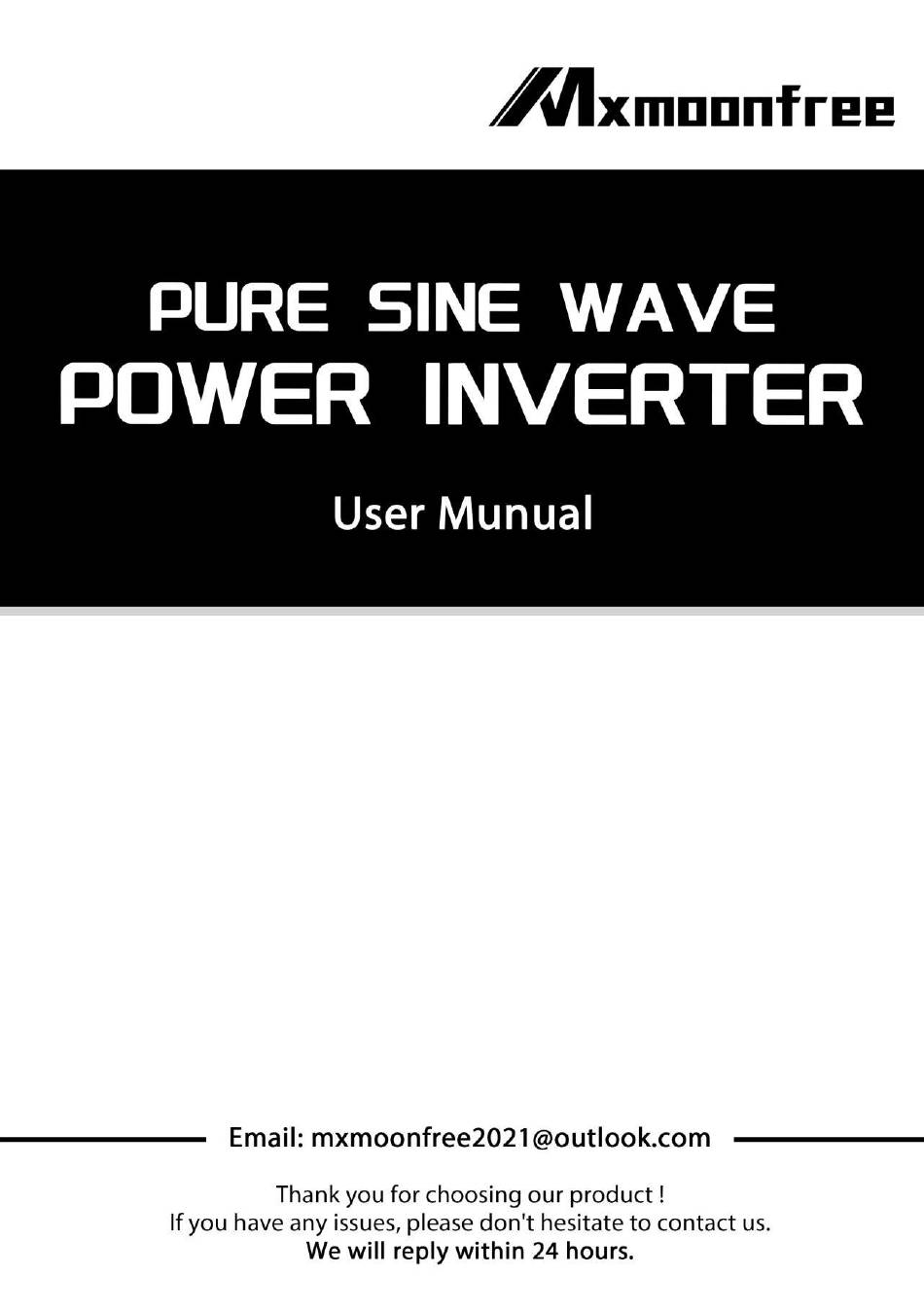

Summary of Contents for Mxmoonfree Pure Sine Wave
- Page 3 Ⅰ. SAFETY FIRST The function of the inverter is to convert DC 12V/24V/48V into AC 110V. Mxmoonfree’s pure sine wave power inverter has adapted the SPWM technology which makes it highly efficient and reliable. Incorrect installation or misuse of the inverter may result in danger to the user or hazardous conditions.
- Page 4 by a qualified, licensed electrician. CAUTION! Safety Instructions - Inverter Related Do not connect live AC power (City power/ Grid Electricity) to the inverter’s AC outlets. The inverter will be damaged even if it is switched OFF. Preventing Reverse Polarity on the DC Input Side ...
- Page 5 3000W 4000W 5000W Input Output DC12V/24V/48V Output Voltage AC 110V ± 10% Loss When No Load ≤0.8A ≤1A Output Wave Pure Sine Wave Surge Power ≤2000W ≤6000W ≤8000W ≤10000W Output Frequency 60 ± 0.5HZ Efficiency ≥88% Over Voltage ≥DC 15±0.5V /30±0.5V /60±0.5V Low Voltage ≤DC 10±0.5V /21±0.5V /40±0.5V...
-
Page 6: Front View
III. FRONT VIEW ①AC Outlets - 110V AC 60Hz. Maximum recommended output per outlet is 1500W. ②Power LED (Green) - When this green LED is lit, the inverter is operating. ③Fault LED (Red) - The red indicator turns on as the inverter shuts down due to overheating, overload, under voltage, or over voltage. -
Page 7: Rear View
National Electric Code (NEC) wiring gauge recommendations, 1000W excluded. Facing the front panel, the terminals are: Left Middle Right Neutral (N) Ground(G) Live(L) NEUTRAL and GROUND are bonded inside the inverter to comply with the National Electric Code (NEC) requirement that any AC source must have a neutral to ground connection. -
Page 8: Status Indication
DC to AC inverters require high amperage/low voltage DC power to low amperage/high voltage AC power. In order to reduce the risk of overheating due to DC side high currents, we set up second terminals on the same side (2 negative, 2 positive) and connect them in parallel. - Page 9 Short circuit protection: inverter is with short circuit protection. Over-heat protection: when the inside temperature of the inverter reach 176 F (80 Celsius), the RED indication light will be on. The inverter will stop working, once the temperature drops to accepted level, the inverter will automatically resume working.
- Page 10 Batteries used to start engines are not designed to repeatedly charge and discharge. Mxmoonfree recommends using "deep-cycle" or "marine" rated batteries. The following takes a 12V inverter as an example, the battery bank will be 12 volts...
-
Page 11: Installation
VII. INSTALLATION Getting Started When a motorized appliance or a tool turns on, there is an initial surge of power to start. This surge of power is referred to as the "starting load" or "peak load." Once started, the tool or appliance requires less power to operate. This is referred to as the "continuous load"... -
Page 12: Battery Connection
Battery Connection When connecting the inverter to the battery terminals, it is important to connect the "+" wire to the "+" terminal and the "-" wire to the "-" terminal. Do NOT reverse the polarity. It will void the warranty. Make sure you connect negative to negative and positive to positive. -
Page 13: Operation
DO NOT allow the wires to cross or touch each other. Install the cables facing away from each other and screw tightly. When connecting the battery cables to the terminals of the inverter, make sure they do not touch the case. Loose connections can result in a severe decrease in voltage that can cause damage ... -
Page 14: Ⅷ. Trouble Shooting
3. Turn on the inverter. 4. Turn the appliance on. 5. Plug in additional appliances and turn them on Ⅷ. TROUBLE SHOOTING PROBLEM: No Input Voltage Reason Solution Poor contact with battery Shut down inverter and disconnect. Clean terminals. terminals thoroughly and reconnect. Turn off inverter. - Page 15 Red light status, display shows, battery size and load. IX. FEEDBACK ＆ HELP Love it? Hate it? Let us know with a customer review. Mxmoonfree strive to provide the best quality and services for our customers. If you have any issues, please don't hesitate to contact us.
