This Operator's Manual is an integral part of the safe operation of this machine and
must be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual before operating the
equipment.
®
BUSH HOG
2501 Griffin Ave.
Selma, AL 36703
334-874-2700
www.bushhog.com
Made in China

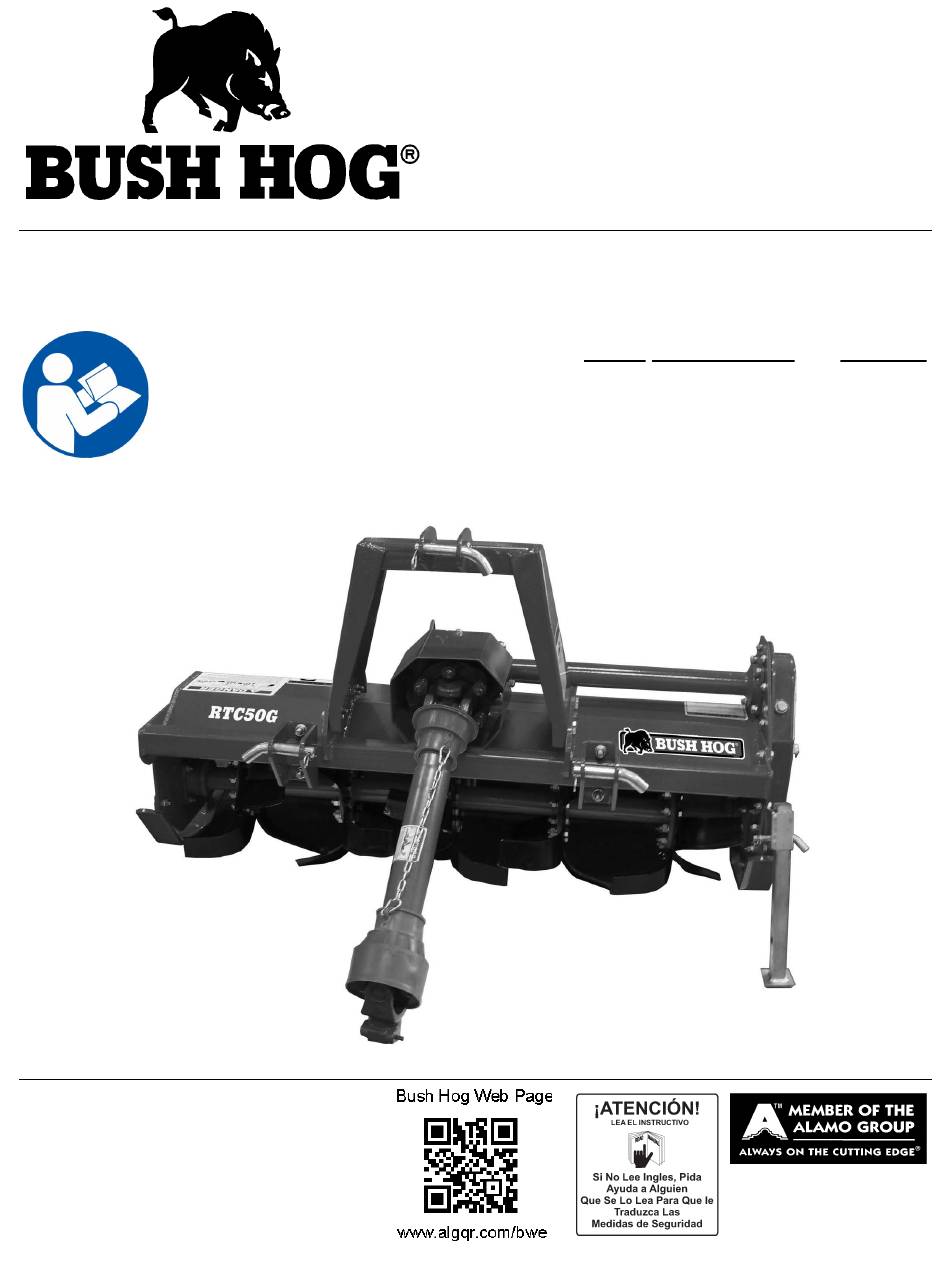

OPERATOR'S MANUAL
C01-Cover str
©2022 Alamo Group Inc.

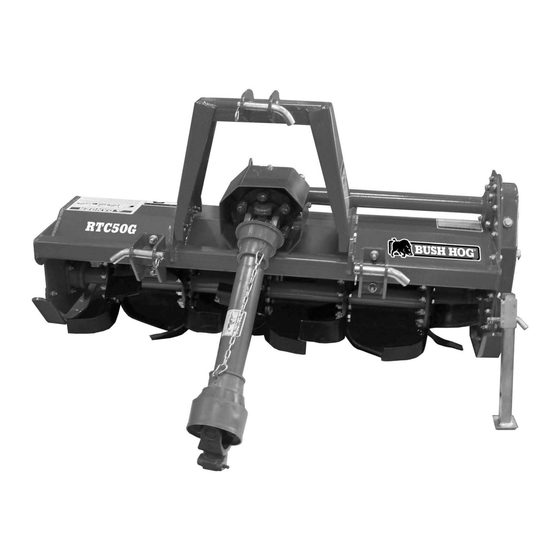

ROTARY TILLER
RTC50G
Part No. 50074036

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTC50G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bush Hog RTC50G

  • Page 1 RTC50G ROTARY TILLER Published 10/22 Part No. 50074036 OPERATOR’S MANUAL This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment.
  • Page 2: Warranty Information

    BEFORE YOU START! Read the safety messages on the implement and shown in your manual. Observe the rules of safety and common sense! For future reference, record your Bush Hog product model number and serial number. Dealer Telephone Model Number...
  • Page 3: Table Of Contents

    FEDERAL LAWS AND REGULATIONS ....................... 1 - 17 INTRODUCTION SECTION ................2 - 1 ATTENTION OWNER/OPERATOR ........................ 2 - 4 BUSH HOG LIMITED WARRANTY ........................ 2 - 5 ASSEMBLY SECTION...................3 - 1 GENERAL ............................... 3 - 2 DRIVELINE ATTACHMENT ........................... 3 - 4 LUBRICATION ..............................
  • Page 4 Table of Contents TILLER PRE-OPERATION INSPECTION ....................4 - 15 OPERATING THE TRACTOR AND IMPLEMENT ..................4 - 16 Foreign Debris Hazards........................... 4 - 16 Adjusting the Tiller for Work ........................4 - 17 Operating the Tiller ..........................4 - 17 Bystanders/Passersby Precautions......................
  • Page 5: Safety Section

    SAFETY SECTION Safety Section 1-1 © 2022 Alamo Group Inc.
  • Page 6: General Safety Instructions And Practices

    Safety Messages. Always use good common sense to avoid hazards. (SG-2) str Always maintain the safety signs in good readable condition. If the safety signs are missing, damaged, or unreadable, obtain and install replacement safety signs immediately. (SG-5)str RTC50G 10/22 Safety Section 1-2 © 2022 Alamo Group Inc.
  • Page 7 (SG-12) str Do not modify or alter this Implement. Do not permit anyone to modify or alter this Implement, any of its components or any Implement function. (SG-8)str RTC50G 10/22 Safety Section 1-3 © 2022 Alamo Group Inc.
  • Page 8: Operator Safety Instructions And Pratices

    Do not put hands or feet under implement as it can result in death or serious injury. Stay away until all motion has stopped and the frames are securely blocked up. (STL-3) RTC50G 10/22 Safety Section 1-4 © 2022 Alamo Group Inc.
  • Page 9: Equipment Operation Safety Instructions And Practices

    (SG-23) str Do not exceed the rated PTO speed for the Implement. Excessive PTO speeds can cause Implement driveline or component failures resulting in serious injury or death. (SG-26) str RTC50G 10/22 Safety Section 1-5 © 2022 Alamo Group Inc.
  • Page 10: Transporting Safety Instructions And Practices

    Such an impact could cause the Implement and Tractor to pivot violently resulting in loss of steering control, death, or serious injury. Never allow the Implement to contact obstacles. (S3PT-12)str RTC50G 10/22 Safety Section 1-6 © 2022 Alamo Group Inc.
  • Page 11: Maintenance And Safety Instructions And Practices

    (SG-14)str Never attempt to lubricate, adjust, or remove material from the Implement while it is in motion or while tractor engine is running. (SG-20)str RTC50G 10/22 Safety Section 1-7 © 2022 Alamo Group Inc.
  • Page 12 Be alert to worn component surfaces which have sharp edges. Sharp surfaces can inflict severe laceration injuries if proper hand protection is not worn. (SG- 37) str Cancer and Reproductive Harm www.P65Warnings.ca.gov RTC50G 10/22 Safety Section 1-8 © 2022 Alamo Group Inc.
  • Page 13 (SG-6)str In wet conditions where there is a likelihood of material collecting on the Implement, make certain that this material is removed before traveling on public roadways. (STL-7) str RTC50G 10/22 Safety Section 1-9 © 2022 Alamo Group Inc.
  • Page 14: Storage And Parking Safety Instructions And Practices

    These parts are made and tested to Bush Hog specifications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of “will fit” parts may reduce equipment performance, void warranties, and present a safety hazard. Use genuine Bush Hog parts for economy and safety.
  • Page 15: Decal Location

    SAFETY DECAL LOCATION NOTE: Bush Hog supplies safety decals on this product to promote safe operation. Damage to the decals may occur while in shipping, use, or reconditioning. Bush Hog cares about the safety of its customers, operators, and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping and handling charges may apply).
  • Page 16: Decal Description

    SAFETY DECAL DESCRIPTION RTC50G 10/22 Safety Section 1-12 © 2022 Alamo Group Inc.
  • Page 17 SAFETY RTC50G 10/22 Safety Section 1-13 © 2022 Alamo Group Inc.
  • Page 18 SAFETY RTC50G 10/22 Safety Section 1-14 © 2022 Alamo Group Inc.
  • Page 19 SAFETY RTC50G 10/22 Safety Section 1-15 © 2022 Alamo Group Inc.
  • Page 20 SAFETY RTC50G 10/22 Safety Section 1-16 © 2022 Alamo Group Inc.
  • Page 21: Federal Laws And Regulations

    (Refer to U.S. Dept. of Labor, Employment Standard Administration, Wage & Home Division, Child Labor Bulletin #102.) RTC50G 10/22 Safety Section 1-17 © 2022 Alamo Group Inc.
  • Page 23: Introduction Section

    INTRODUCTION SECTION Introduction Section 2-1 © 2022 Alamo Group Inc.
  • Page 24 Indicates a hazardous situation that, if not avoided, MAY result in MINOR OR MODERATE INJURY. Identifies special instructions or procedures that, if not strictly observed, could result in dam- age to, or destruction of the machine, attachments or the environment. RTC50G 10/22 Introduction Section 2-2 © 2022 Alamo Group Inc.
  • Page 25 INTRODUCTION Thank you for purchasing your Bush Hog RTC50G Series Tiller. Your rotary tiller is designed to be used on CAT 1 540 RPM tractors. It is important to properly maintain and keep in place all safety guards and shields that came with your tiller.
  • Page 26: Attention Owner/Operator

    NOTE: Warranties are honored only if completed “Owner Registration and Warranty” forms are received by Bush Hog within thirty days of delivery of the implement. 3. Record the Model and Serial Numbers on the Warranty page provided to with your Operator’s and Part’s manual package.
  • Page 27: Bush Hog Limited Warranty

    2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Bush Hog have been used in connection with the unit, if, in the sole judgment of Bush Hog such use affects its performance, stability or reliability.
  • Page 29: Assembly Section

    ASSEMBLY SECTION Assembly Section 3-1 © 2022 Alamo Group Inc.
  • Page 30: General

    ASSEMBLY GENERAL Bush Hog RTC series Tillers are shipped from the factory partially assembled in a shipping crate and requires some assembly before being placed into service. Follow these instructions listed to safely remove the Tiller from the shipping crate and prepare for assembly 1.
  • Page 31 Never work under the Implement, the framework, or any lifted component unless the Implement is securely supported or blocked up to prevent sudden or inadvertent falling which could cause death or serious injury. (SG-14)str RTC50G 10/22 Assembly Section 3-3 © 2022 Alamo Group Inc.
  • Page 32: Driveline Attachment

    Safety Manual for more information on the safe use of a driveline during normal operation and maintenance. Or type in your internet browser the following web address: www.algqr.com/dme Ops-0009-MISC str RTC50G 10/22 Assembly Section 3-4 © 2022 Alamo Group Inc.
  • Page 33: Lubrication

    2. Pour the gear oil into the vent plug hole slowly until the oil starts to come out of the small hole at the rear. DO NOT OVERFILL THE GEARBOX! 3. Replace the small Inspection Plug and the Vent Plug. Clean up any excess gear oil. RTC50G 10/22 Assembly Section 3-5 © 2022 Alamo Group Inc.
  • Page 34: Side Gearbox

    2. Pour the gear oil into the vent plug hole slowly until the oil starts to come out of the small hole on the side. DO NOT OVERFILL THE GEARBOX! 3. Replace the small Inspection Plug and the Vent Plug. Clean up any excess gear oil. RTC50G 10/22 Assembly Section 3-6 © 2022 Alamo Group Inc.
  • Page 35: Operation Section

    OPERATION SECTION Operation Section 4-1 © 2022 Alamo Group Inc.
  • Page 36: Standard Equipment And Specifications

    OPERATION BUSH HOG RTC50G TILLER OPERATING INSTRUCTIONS The Tiller is manufactured with quality material by skilled workers. This implement is ideal in horticultural, agricultural, or commercial applications, especially for landscapers, rental yards, vineyards, vegetable farms, and nurseries. The implement is equipped with protective deflectors to prevent objects being thrown from the implement by the blades, however, no shielding is 100% effective.
  • Page 37: Operator Requirements

    Serious injury or death to the operator or others could result if the operator is under the influence of drugs or alcohol. (SG- 27) str RTC50G 10/22 Operation Section 4-3 © 2022 Alamo Group Inc.
  • Page 38: Tractor Requirements

    15 HP. Operating the implement with a tractor that does not have adequate power may damage the tractor engine. Exceeding required HP may cause implement damage by overpowering the unit. RTC50G 10/22 Operation Section 4-4 © 2022 Alamo Group Inc.
  • Page 39: 3-Point Hitch

    Serious bodily injury and/ or equipment failure can result from using a PTO adapter. Consult an authorized dealer for assistance if the Implement driveline does not match the Tractor PTO. (S3PT-14) str RTC50G 10/22 Operation Section 4-5 © 2022 Alamo Group Inc.
  • Page 40: Getting On And Off The Tractor

    Place the tractor shift lever into a low range or parking gear to prevent the tractor from rolling. Never dismount a Tractor that is moving or while the engine is running. Operate the Tractor controls from the tractor seat only. (SG-9)str RTC50G 10/22 Operation Section 4-6 © 2022 Alamo Group Inc.
  • Page 41: Starting The Tractor

    Start tractor only when properly seated in the Tractor seat. Starting a tractor in gear can result in death or serious injury. Read the Tractor operators manual for proper starting instructions. (SG-13) str RTC50G 10/22 Operation Section 4-7 © 2022 Alamo Group Inc.
  • Page 42: Connecting The Implement To The Tractor

    IMPORTANT: Scan this QR Code with your smart phone to link to the PAMI Safe Implement Hitching Manual for more information on correctly connecting agricultural tractors to implements. Or type in your internet browser the following web address: www.algqr.com/hme Ops-0008-MISC str RTC50G 10/22 Operation Section 4-8 © 2022 Alamo Group Inc.
  • Page 43: Setting Implement Height

    Shortening or extending will allow for deck leveling from side to side. 6. Securely block up the implement at this height RTC50G 10/22 Operation Section 4-9 © 2022 Alamo Group Inc.
  • Page 44: Driveline Attachment

    At its shortest length, there must be at least a 1” clearance between each profile end and opposite profile universal joint. At its farthest operating extension, a minimum profile engagement of 9” must be maintained. RTC50G 10/22 Operation Section 4-10 © 2022 Alamo Group Inc.
  • Page 45 NOTE: When raising the tiller, at least 1” clearance must be maintained between the driveline and the tiller. If necessary, place an upper lift stop on the 3-point hitch control lever to limit the height the tiller can be raised. OPS-T-0015 str RTC50G 10/22 Operation Section 4-11 © 2022 Alamo Group Inc.
  • Page 46: Pre-Operation Inspection And Service

    Engine coolant level and condition • Power brake fluid level • Power steering fluid level • Fuel condition and level • Sufficient lubrication at all lube points • Air filter condition OPS-U-0030 str RTC50G 10/22 Operation Section 4-12 © 2022 Alamo Group Inc.
  • Page 47: Implement Pre-Operation Inspection/Service

    Ensure the manual canister is secured to the equipment with the operator’s manual inside. • Ensure all safety signs are in place and legi- ble. Replace missing, damaged, and illegible decals. OPS-U- 0011 str RTC50G 10/22 Operation Section 4-13 © 2022 Alamo Group Inc.
  • Page 48 The engine coolant fluid level is full The radiator is free of debris The air filter is in good condition Operator’s Signature: ____________________________________________ DO NOT OPERATE an UNSAFE TRACTOR or IMPLEMENT RTC50G 10/22 Operation Section 4-14 © 2022 Alamo Group Inc.
  • Page 49: Tiller Pre-Operation Inspection

    Tiller tines are not chipped, cracked or bent Tiller tines are tight Rear deflector shield is in place and in good condition Operator’s Signature: ____________________________________________ DO NOT OPERATE an UNSAFE TRACTOR or IMPLEMENT RTC50G 10/22 Operation Section 4-15 © 2022 Alamo Group Inc.
  • Page 50: Operating The Tractor And Implement

    The seat belt is your best protection from falling off the tractor and the ROPS provides protection from being crushed during a tractor roll-over. OPS-T-0003 str RTC50G 10/22 Operation Section 4-16...
  • Page 51: Adjusting The Tiller For Work

    The adjustment bolts for both right and left sides should be positioned in the same adjustment hole. This allows the tiller to till the same depth on each side. Adjust the tailgate, with regulating chain, until the desired mulching effect is achieved. RTC50G 10/22 Operation Section 4-17 © 2022 Alamo Group Inc.
  • Page 52: Bystanders/Passersby Precautions

    PTO immediately. Inspect the implement to determine the cause of the noise or vibration and repair the abnormality. OPS-U- 0027 str RTC50G 10/22 Operation Section 4-18 © 2022 Alamo Group Inc.
  • Page 53: Pto Rpm And Ground Speed

    OPS-T-0007 str RTC50G 10/22 Operation Section 4-19 © 2022 Alamo Group Inc.
  • Page 54: Disconnecting The Implement From The Tractor

    Seasonal Clutch Maintenance of the maintenance section in this manual. OPS-T-0010 RTC50G 10/22 Operation Section 4-20 © 2022 Alamo Group Inc.
  • Page 55: Transporting The Tractor And Implement

    OPS-U- 0012str Never run the Tractor engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health. (SG-23) str RTC50G 10/22 Operation Section 4-21 © 2022 Alamo Group Inc.
  • Page 56 The implement can then be raised to the maximum lift height. OPS-T-0011 str RTC50G 10/22 Operation Section 4-22 © 2022 Alamo Group Inc.
  • Page 57: Brake And Differential Setting

    PTO output shaft. Secure the driveline to the implement deck to prevent driveline damage or loss during transport. OPS-T-0012 str RTC50G 10/22 Operation Section 4-23 © 2022 Alamo Group Inc.
  • Page 58: Transporting On Public Roadways

    Consult an authorized tractor dealer for lighting kits and modifications available to upgrade the lighting on older tractor models. OPS-U- 0021str RTC50G 10/22 Operation Section 4-24 © 2022 Alamo Group Inc.
  • Page 59: Hauling The Tractor And Implement

    OPS-U- 0025 str RTC50G 10/22 Operation Section 4-25 © 2022 Alamo Group Inc.
  • Page 60: Troubleshooting Guide

    Low oil level in gearbox. Add oil. Slip clutch is slipping. Reduce load to machine or adjust slip clutch. Oil Leaking from Gearbox Damaged seals. Replace seals. Gearbox overfilled. Drain to proper level. RTC50G 10/22 Operation Section 4-26 © 2022 Alamo Group Inc.
  • Page 61: Maintenance Section

    MAINTENANCE SECTION Maintenance Section 5-1 © 2022 Alamo Group Inc.
  • Page 62: Maintenance

    NOTE: Make sure the Gearbox is level prior to removing the Inspection Plug. Tilting forward may result in over filling. Tilting back may result in under filling. Use GL5-85W 140 or Triple Zero Grease which can be poured and has an “EP” Extreme Pressure Additive. RTC50G 10/22 Maintenance Section 5-2 © 2022 Alamo Group Inc.
  • Page 63: Top Gearbox

    2. Pour the gear oil into the vent plug hole slowly until the oil starts to come out of the small hole at the rear. DO NOT OVERFILL THE GEARBOX! 3. Replace the small Inspection Plug and the Vent Plug. Clean up any excess gear oil. RTC50G 10/22 Maintenance Section 5-3 © 2022 Alamo Group Inc.
  • Page 64: Side Gearbox

    2. Pour the gear oil into the vent plug hole slowly until the oil starts to come out of the small hole on the side. DO NOT OVERFILL THE GEARBOX! 3. Replace the small Inspection Plug and the Vent Plug. Clean up any excess gear oil. RTC50G 10/22 Maintenance Section 5-4 © 2022 Alamo Group Inc.
  • Page 65: Driveshaft Lubrication

    Safety Manual for more information on the safe use of a driveline during normal operation and maintenance. Or type in your internet browser the following web address: www.algqr.com/dme Ops-0009-MISC str RTC50G 10/22 Maintenance Section 5-5 © 2022 Alamo Group Inc.
  • Page 66: Slip Clutch Adjustment

    It may be necessary to completely disassemble the clutch to free them up. 6. After ensuring all discs are free, tighten the compression nuts, uniformly, exactly 2 revolutions to reset the clutch original pressure. RTC50G 10/22 Maintenance Section 5-6 © 2022 Alamo Group Inc.
  • Page 67: General Maintenance

    NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal engine oil. They do not apply if special graphited or molydisulphide greases or other extreme pressure lubricants are used. This applies to both UNF fine and UNC coarse threads. RTC50G 10/22 Maintenance Section 5-7 © 2022 Alamo Group Inc.
  • Page 68 MAINTENANCE RTC50G 10/22 Maintenance Section 5-8 © 2022 Alamo Group Inc.
  • Page 69 TO THE OWNER/OPERATOR/DEALER To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily find the information you need. The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety requirements of tractor operators: REQUIRED OF THE OWNER:...
  • Page 70: Rotary Tiller

    RTC50G ROTARY TILLER 50074036 RTC50G Tiller - 10/22 Printed U.S.A...
