Summary of Contents for PureLink Vuelogic VL-PSU110

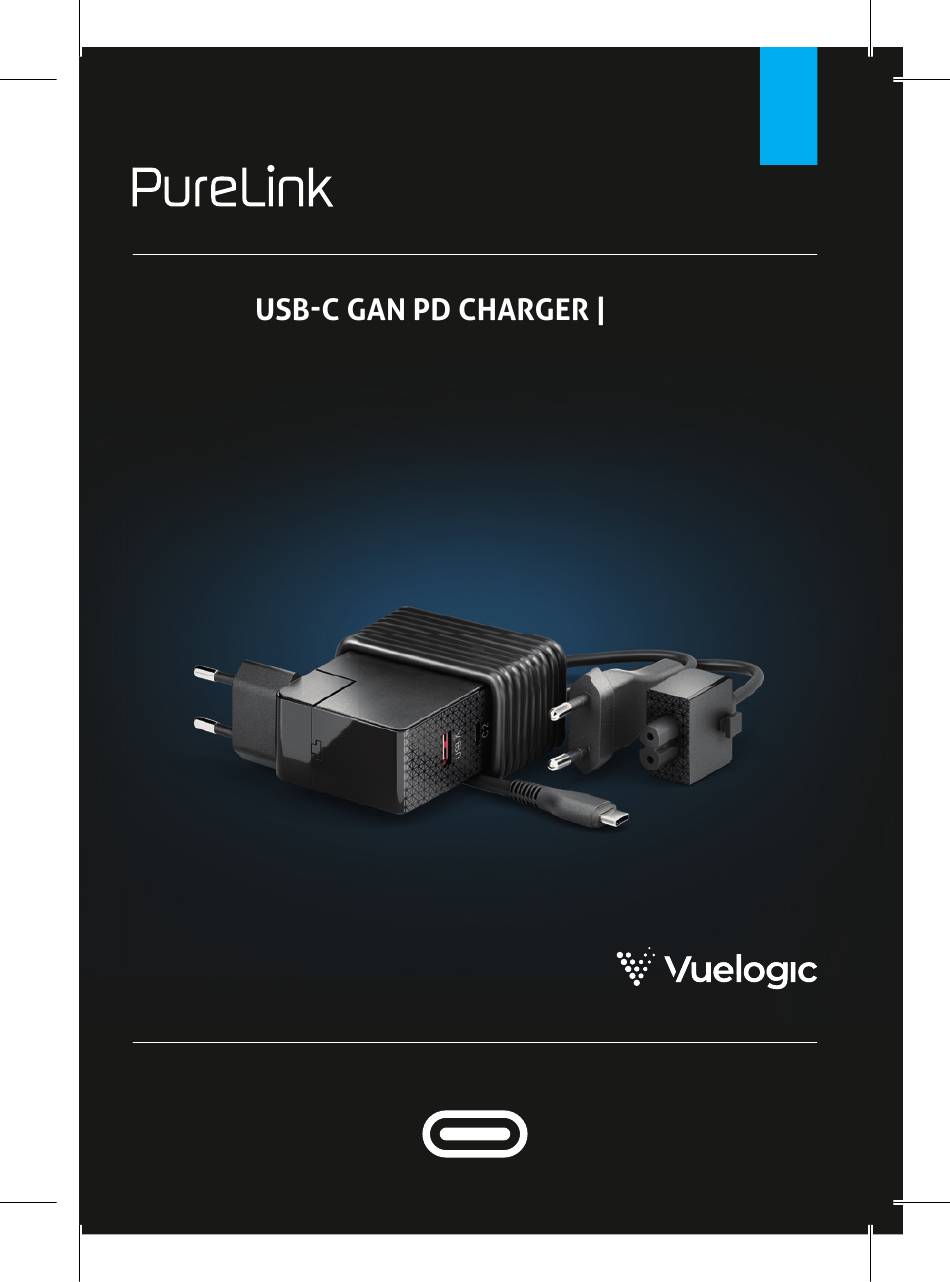

- Page 1 100W USER MANUAL VL-PSU110 USB-C...
- Page 2 General Notes .......................3 Safety Instructions ....................3-5 Delivery Contents .......................6 Features ..........................6 ......................7-8 Description and Function ..................9 CE Conformity ......................10 Disposal of device ....................10 Warranty and Liability ....................11 Disclaimer of liability .....................11 Trademark ........................11...
- Page 3 Please read this user manual in its entirety and carefully. It forms part of the product and contains important notes for operating and storing. Please keep this document in a safe place for other users or for personal reference. This product is intended for indoor use only. Please do not use it in any outdoor areas.
- Page 4 Only use the mains cable supplied with the power supply unit. Do not attempt to modify or replace it. Before use, check that the plug on the mains cable is compatible with the sockets in your country. Ensure that the PSU has adequate space around it for ventilation and heat dissipation.
- Page 5 Keep the PSU and its cables out of reach of children and pets to prevent accidental injury or damage. the PSU and unplug it from the power outlet when not in use. Regularly inspect the PSU and its cables for any signs of damage or wear.
- Page 6 1x 100W GaN Multiport Power Supply Unit (PSU) 1x User Guide FEATURES • This USB-C charger can be used to power common digital devices on the market with a USB-C and USB-A connection • Ideal for USB-C and USB-A devices such as docking stations, notebooks, smartphones, tablets and much more •...
- Page 7 Input voltage 100-240V, 2A max. Input AC frequency 50/60Hz Output 100W max. (20.0V/5.0A) • USB-C1 output (integrated USB-C cable): 100 W max. (5V/3A; 9V/3A; 12V/3A; 15V/3A; 20V/5A), PD 3.0 • USB-C2 output (USB-C socket): 100 W max. (5V/3A; 9V/3A; 12V/3A; 15V/3A; 20V/5A), PD 3.0 •...
- Page 8 Schematic visualization of output power combinations: C1/C2 only PD100W max. C1+C2: C2+A1: 60W+45W 65W+15W C1+A1: C1+C2+A1: 90W+15W 60W+30W+10W Protection against short circuit, overload, overvoltage, undervoltage and overheating.
- Page 9 • If you want to replace the mains cable or the adapter plug with it to the mains and the devices. The optional country adapters must be purchased directly from the manufacturer (Purelink GmbH). We accept no responsibility for the use of third-party accessories with this power supply unit.
- Page 10 RoHS directive (2011/65/EC; amendend by 2015/863/ EU), EMC Directive (2014/30/EU) and Low Voltage Directive (2014/35/EU). PureLink GmbH hereby declares that this product is in compliance with the essential requirements of the Electromagnetic Compatibility Regulations 2016 and all other applicable UK regulations.
- Page 11 Your dealer will repair the fault either on site, or send the de- vice PureLink. Please describe the possible faults in de- tail – only then you can be assured that faults, occurring only rarely, will be found and repaired with certainty! Any use other than described in this user`s manual is not permitted.
- Page 12 For further support or questions please contact us under https://www.purelink.de/en/anfrage-formular-purelink.de or scan the QR- code below...
- Page 14 V1 | 2024-05 Von-Liebig-Str. 10 Carpenter Court, D - 48432 Rheine 1 Maple Road Germany Bramhall, Stockport www.purelink.de Cheshire SK7 2DH WEEE-Reg.-No. DE 93 847 290 United Kingdom...
