Summary of Contents for Rioned MINI VICTOR

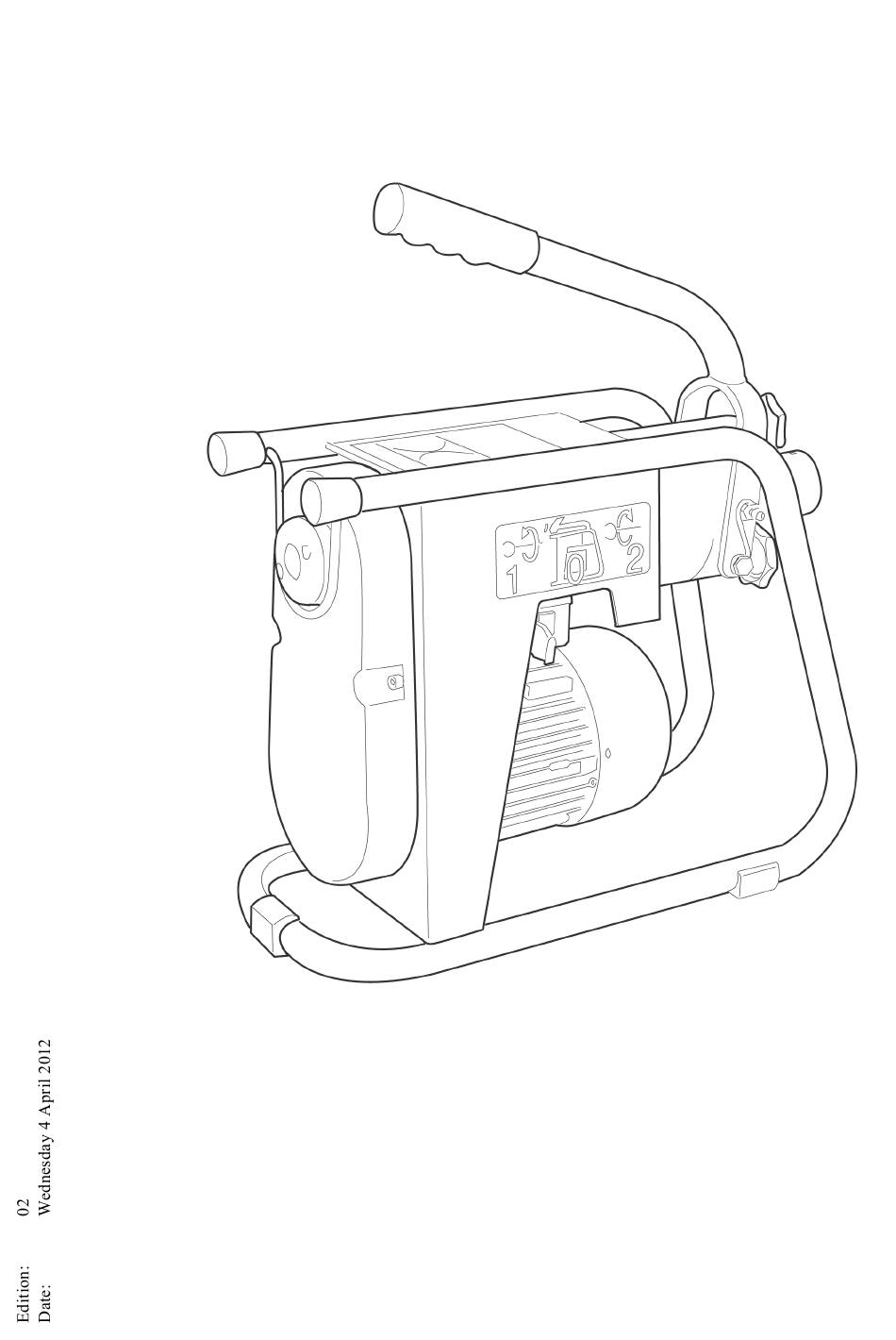

- Page 1 USER’S MANUAL MINI VICTOR RIONED P.O. Box 5070 5004 EB Tilburg The Netherlands Telephone : +31 13 5479100 Fax : +31 13 5479104...
- Page 2 RIONED. This restriction also holds for the corresponding drawings and diagrams. RIONED has the right to change parts at any time without any prior or direct warning to the client. Also, the contents of this manual can be changed without any prior warning.
- Page 3 Foreword This user’s manual is a manual for the professional user. This user’s manual has the purpose to control the machine in a safety manner and must be saved with the machine. The photos and drawings help you understand the text easier. First the user’s manual gives you an overview of the most important safety aspects.
- Page 4 04/12...
-
Page 5: Table Of Contents
ACCESSORIES ......................... 21 Auxiliaries that can be coupled: ................21 EXPLODED VIEWS ......................25 Mini Victor ........................ 26 Mini Victor with Dual Drive ..................27 Adaptor drum......................28 APPENDIX......................... 29 EC declaration Of Conformity For Machinery ............29 Sales Managers......................30... - Page 6 Safety instructions ..................... 31 INDEX ..........................33 04/12...
-
Page 7: Introduction
INTRODUCTION RIONED wishes to thank you for your purchase of the RIONED drain and sewer-clearing machine. We recommend that you read this manual thoroughly and see that the machine is handled and main- tained in the proper manner. If your machine should give trouble and need servicing, when you want to order parts, or if you have any questions, contact your RIONED dealer. - Page 8 04/12...
-
Page 9: Security
SECURITY Be responsible for other people when you are working with this machine. This manual contains instructions for fundamental conditions that must be followed by use and maintenance of this machine. That is why it is necessary that authorised and qualified personnel must read the user's manual and the user’s manual must always be available with the machine. -
Page 10: Personnel Qualification And Education
Before starting the machine again, you must follow the instructions correctly. 2.10 Making Changes to the machine are only permitted if Rioned has given written authorisation. The use of changes and fabri- original spare parts and accessories are for the safety necessary. Rioned is not responsible for inju- cate spare parts ries or damages if other spare parts are used. -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS General Description (symbol) Unit Type : Mini Victor. Total length (l) : 0,452m Total height (h) : 0,560 m control lever up 0,430 m control lever down Total width (b) : 0,210 m Weight (dry) (m) : 17,5 kg... -
Page 12: Engine
Engine Description (symbol) Unit Type : AEG AE 71B 4T Number of revolutions (n) : 1330 rpm Power (P) : 0,450 kW 1 HP Voltage (U) : 230 V according to IEC38 Frequency (f) : 50 Hz. Current (I) : 3,3A Condensator : 20 MF Security... -
Page 13: Construction
CONSTRUCTION The machine contains the following main parts: Electric engine Illustration 4.1 Housing Star knobs Control lever Security for control lever Switch Clamping system housing Frame Place frame number Security V-belt Afbeelding 4.1 Veermachine Mini Victor 04/12... - Page 14 04/12...
-
Page 15: Control
CONTROL If you control, maintain or inspect the machine, you must have the right qualifications for this job. If you do not have the necessarily knowledge, you may not use the machine. Further, you must convince yourself that you understand this manual thoroughly. - Page 16 control lever or push it upwards, the spring stops turning. Spring loose Spring clamped Switch position 1: In this position, you start the machine. The main axle begins to turn. Switch position 0: In this position the rotation stops. Switch position 2: In this position main axle rotates the other direction.
-
Page 17: Before Unblocking
5.3 Before In type "Dual Drive", adjust the position of the belt in: unblocking Low speed (rear position against the frame) for use with adapter drum. High speed (front position, to guard against) for use of eg 16 mm spring. Method:: Unplug the power cord. -
Page 18: Unblocking
Put the spring into the machine and into the security guide hose. Working site Protection hose Connect the desired cleaning aid to the spring (see chapter 7.1 Auxiliaries that can be coupled: page: 21). Feed the spring in the drain or sewer opening until you notice any resistance. Couple, if necessary, a second spring after the first spring if the blockage is not reached You can couple the end of the first spring at the coupling on the front of the frame when you put the second spring into the machine. -
Page 19: Maintenance
MAINTENANCE Warning! Always stop the engine and take the plug out of the wall socket before serving or repairing the machine. 6.1 General The machine is maintenance free except the clamping system. Use only original spare parts. 6.2 Cleaning the The clamping system is outside the machine. -
Page 20: Maintenance Schedule
6.6 Maintenance Description Interval schedule Cleaning the clamping system : Every time before using the machine and by strong pollution. Checking clamps : Once a month. Change by wastage. Cleaning the body of the machine : Weekly or by strong pollution. Lubrication moving parts : Every 50 hours or at least once every 6 months. -
Page 21: Accessories
ACCESSORIES 7.1 Auxiliaries that Retrieving hook: can be coupled: To remove obstacles from pipes. For example: cloth, rags, napkins, sheets, etc. 4-blade drill and 6-blade drill: To mill pipes that are clogged with frying fat. Cutting knife: To mill big pipes. The knife diameter can be chosen for the right kind of sewer. Chain head: To clean steel and iron pipes. - Page 22 Inlet guide tube: To guide the spring to difficult places. Reparation and quick couplings: To connect springs or to repair broken springs. Drilling head: For light unblocking in polluted pipes. Root cutter: To saw tree roots. Funnel drill: For long bended pipes. 04/12...
- Page 23 Pointed head: For pipes cocked with lime or uric stones. Adaptor drum: The 8 mm and 10 mm springs are working in the Victor by means of a adaptor drum. With these springs you can unclog small pipes. Assembling tools: To mount and dismantle spring couplings and auxiliaries.
- Page 24 04/12...
-
Page 25: Exploded Views
EXPLODED VIEWS 04/12... -
Page 26: Mini Victor
8.1 Mini Victor... -
Page 27: Mini Victor With Dual Drive
8.2 Mini Victor with Dual Drive 04/12... -
Page 28: Adaptor Drum
8.3 Adaptor drum POS_NUM NUM_UNT EENHEID ART_NUM BENAMING 05-150-807-019 achtertrommel 13-250-001-017 veertrommel leeg blauw 13-250-001-130 pakking voor trommel 13-276-001-029 huis klemtang victor 13-280-001-025 aandrijfbuis adaptertrommel 30-500-010-021 vergrendelknop 31-025-500-150 zekeringsring 36050-050001 31-026-072-140 borgring R72140 DIN 905 32-214-105-008 bolverzonken schroef M5 x 8 45-000-061-807 kogellager 61807 73-045-003-032 spanstift 3 x 32 DIN 1481 13-280-001-027 veer tbv sterknop... -
Page 29: Appendix
Of Conformity For Centaurusweg 45, Tilburg, The Netherlands, Machinery Herewith declares that: Spring cleaning machine Mini Victor , • is in compliance with the Machinery Directive (2006/42/EC); • is in conformity with the provisions of the following other EEC directives: 2004/108/EC, 2006/95/EC •... -
Page 30: Sales Managers
EXPORT D.Maas / H. de Laat Centaurusweg 5015 TC Tilburg Tel.: +31 13-547 91 00 Fax: +31 13-547 91 04 REPAIR THE NETHERLANDS Rioned Centaurusweg 45 5015 TC Tilburg Tel.: +31 13-547 91 00 Fax: +31 13-547 91 04 04/12... -
Page 31: Safety Instructions
Warning: When using electric tools, basic safety precautions should always be 9.3 Safety instructions followed to reduce the risk of fire, electric shock, and personal injury, including the following. Read all these instructions before attempting to operate this product and safe these instructions. - Page 32 Check damaged parts. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mount- ing, and any other conditions that may affect its operation.
- Page 33 4-blade drill ........21 gloves ..........9 6-blade drill ........21 grease ........... 19 responsible ........9 retrieving hook ......21 rioned ......2 accessories ........10 injuries ......... 10 root cutter ........22 adaptor drum ........23 inlet guide tube ......22 rust ..........19 adaptor drum ......
