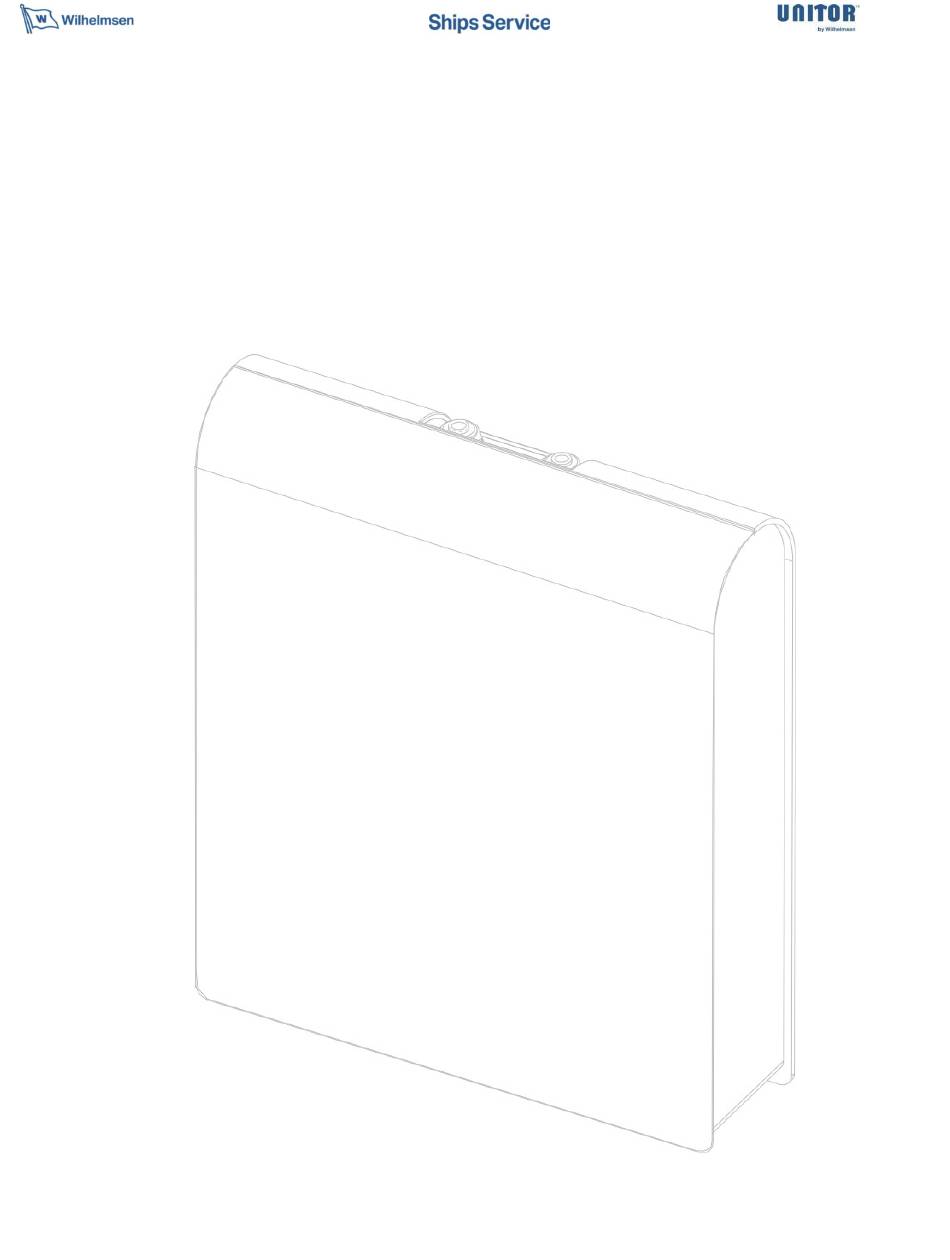

- Page 1 UNITOR AQUAFILTER SYSTEM STARTER PACK Product Code (625575 & 779250) INSTRUCTIONS AND OPERATIONS MANUAL...
-
Page 2: Safety Precautions Before Installation
Use only genuine Aquafilter replacement parts, filter cartridges and membrane elements. In case of use of other manufacturers' parts, Wilhelmsen Ships Service is not responsible for any damage caused in the course of product use. - Page 3 Scope of Supply (Included in the Box) Water Filter System Chrome filter Adapter Teflon tape Shut-off valve Flexible tubing Flexible tubing Quick (779237) faucet (779248) (779247) (779249) (779241) (779242) connectors (779240) (1/2” MIP x 1/2” FIP (Blue) (Yellow) wrench x 1/4” FIP) (779246) Wrench for with mounting bracket...
- Page 4 4. Connection Diagram Water Supply Inlet Filtered Water Outlet...
-
Page 5: System Installation
5. System Installation IMPORTANT NOTE! The manufacturer is not responsible for any damages that result from improper installation or use of system. Connecting the water source to the Pre-filter housing (779229) Shut off incoming water supply from drinking water fountain Unscrew flexible tubing from the shut-off valve (the adapter). -
Page 6: Installing The Faucet
Press down plastic inlet ring to insert yellow tubing into the [IN] of the system’s water inlet and secure yellow tubing into place with blue clip fastener To connect system to water cooler Remove blue clip fastener from blue plug and remove the blue Press down plastic inlet ring to insert blue tubing into the [OUT] plug with upward force of the system’s water outlet and secure blue tubing into place... -
Page 7: Pre-Filter Cartridge
8. Pre-filter Cartridge (779231) Shut off water supply valve Open filter faucet to release pressure from the system Unscrew filter housing sump from filter cap by hand or using Remove old filter cartridge wrench (779245) perpendicularly to the filter housing Unpack the new cartridge out of plastic foil. - Page 8 8. System Cartridge Replacement Shut off water supply valve Open filter faucet to release pressure from the system Before replacing the membrane, disconnect all flexible tubing Remove front panel of the system's housing from the system (inlet / outlet). Remove cartridge from housing bracket To disconnect tubing from the inlet elbows of filter cartridge detach the safety clips from elbow inlet and outlet of the cartridge.
- Page 9 Install (screw in) connectors into new filter cartridge. Connect the OUTLET elbow from filter cartridge with INLET elbow of filter cartridge using flexible tubing. NOTE! During installing (screwing in) individual connectors do NOT withdraw (unscrew) them at any time. Do the following: This may result in connection damage and future water 1) Make sure that the input will be connected in the direction leaks.
-
Page 10: Cartridge Type
9. Filter Cartridges (625576 or 779260) Cartridge Type Service Length* Description 3 – 6 months AIPRO-1M-AQ The cartridge is made of pure polypropylene, a surfactant-free depth filter ensures low pressure drops, with exceptional dirt holding capabilities. cartridge is highly effective for filtering / absorption of sand, silt, clay, rust and other sediments. -
Page 11: Compliance With Standards
