Sony SSC-M256 Service Manual

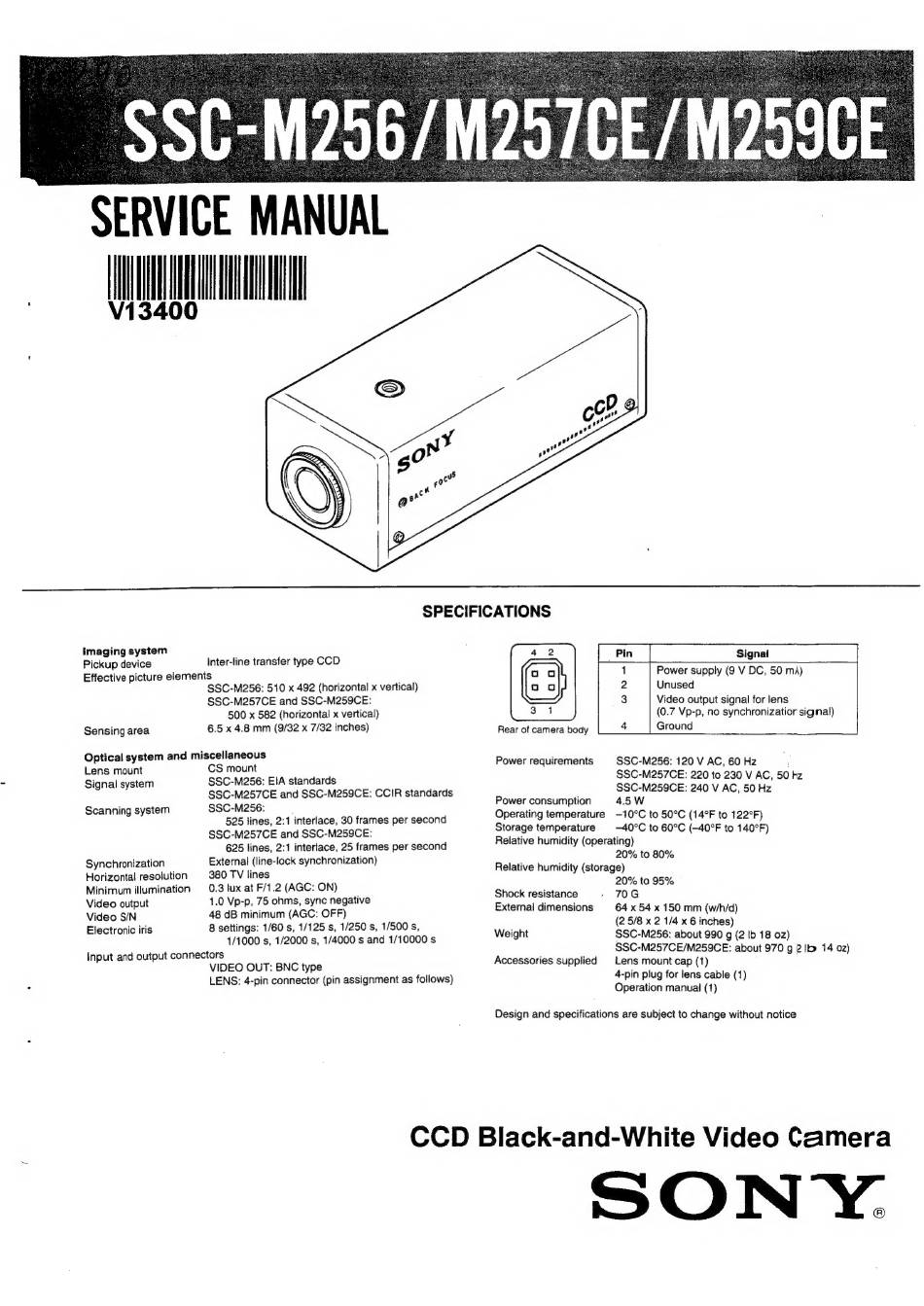

SERVICE MANUAL
HN
SPECIFICATIONS
500 x 582 (horizontal x vertical)
Sensing area
6.5 x 4.8 mm (9/32 x 7/32 inches)
Optical system and miscellaneous
Lens mount CS mount
Signal system
SSC-M256: EIA standards
SSC-M257CE and SSC-M25SCE: CCIR standards
SSC-M256:
525 lines, 2:1 interlace, 30 frames per second
SSC-M257CE and SSC-M259CE:
625 lines, 2:1 interlace, 25 frames per second
External (line-lock synchronization)
380 TV lines
0.3 lux at F/1.2 (AGC: ON)
1.0 Vp-p, 75 ohms, sync negative
48 dB minimum (AGC: OFF)
8 settings: 1/60 s, 1/125 s, 1/250 s, 1/500 s,
1/1000 s, 1/2000 s, 1/4000 s and 1/10000 s
Input and output connectors
VIDEO OUT: BNC type
LENS: 4-pin connector (pin assignment as follows)
Scanning system
Synchronization
Horizontal resolution
Minimum illumination
Video output
Video S/N
Electronic iris
Rear of camera body
Power requirements
Power consumption
Operating temperature
Storage temperature
1 Power supply (9 V DC, 50 mA)
Unused
3 Video output signal for lens
(0.7 Vp-p, no synchronizatior signal)
4 Ground
SSC-M256: 120 V AC, 60 Hz :
SSC-M257CE: 220 to 230 V AC, 50 hz
SSC-M259CE: 240 V AC, 50 Hz
45W
~10°C to 50°C (14°F to 122°F)
—40°C to 60°C (-40°F to 140°F)
Relative humidity (operating)
20% to 80%
Relative humidity (storage)
Shock resistance
External dimensions
Weight
Accessories supplied
20% to 95%
70G
64 x 54 x 150 mm (w/h/d)
(2 5/8 x 2 1/4 x 6 inches)
SSC-M256: about 990 g (2 Ib 18 oz)
SSC-M257CE/M259CE: about 970 g 2 Ib 14 02)
Lens mount cap (1)
4-pin plug for lens cable (1)
Operation manual (1)
Design and specifications are subject to change without notice

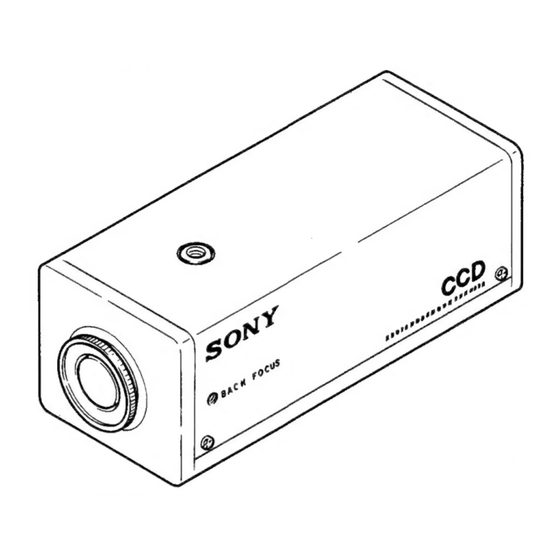

CCD Black-and-White Video Camera
