- Page 1 ExotonAudio.com S-1502 BARON SERIES 600W Powered 8 Channel Mixer S-1502 BARON SERIES User’s Manual FOR MORE INFORMATION, PLEASE FOLLOW EXOTON'S SOCIAL MEDIA PLATFORM.
-
Page 3: Table Of Contents
600W Powered 8 Channel Mixer CONTENTS IMPORTANT SAFETY INSTRUCTIONS INTRODUCTION POWERED MIXER FEATURES FRONT PANEL SECTION FEATURES CONNECTIONS CONNECTING WITH BLUETOOTH MIXER CONNECTED TO PASSIVE SPEAKERS S-1502 MIXER SIZE TO PURCHASE ADDITIONAL GEAR AND ACCESSORIES SERVICE AND REPAIR WARRANTY INFORMATION CUSTOMER SERVICE AND TECHNICAL SUPPORT... -
Page 4: Important Safety Instructions
1.0 IMPORTANT SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED PERSONNEL The lightning flash with arrowhead symbol, within an equilateral triangle,is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 5: Introduction
Congratulations on your purchase of the S-1502 BARON Series Powered 8 Channel Mixer EXOTON BARON series have an attractive impact-resistant design. The molded enclosure is made of highly durable polypropylene, which is designed for parties, meetings, indoor or outdoor performances. -
Page 6: Front Panel Section Features

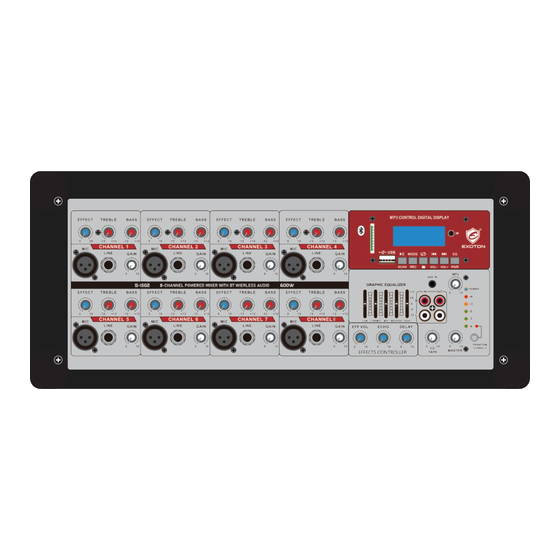

3.0 FRONT PANEL SECTION FEATURES <7> <1> <2> <3> <4> <5> <6> 1、MIC INPUT Electronic Balanced inputs acceptable a standard XLR male connector . It is designed to accept a balanced low impedance input signal , Phantom power(15 volts) for condenser microphones is always on and available . - Page 7 3、GAIN This is function to adjust the volume of a signal connection into each channel and adjust the volume of output , together with the master fader. 4、EFFECT This is a send control to the reverb bus . It controls the amount of reverberation added to the input signals. 5、TREBLE This control gives you up to 15 db of boost or cut at 10 kHz and above, and it is also flat at the detent.
-
Page 8: Master Volume
<2>Press once to jump next mode. We provide 4 modes (FM Radio，MP3,Bluetooth.Reader Folder).Press and hold to enter recording mode. <3> It is repeat button. We provide 3 modes , Repeat one ,Repeat all , Random. Press once to jump next mode Long press and enter the folder mode. -
Page 9: Connections
4.0 CONNECTIONS You will need a lot of cables for different purposes - see the following figures to make sure you have got the right cables.Unbalanced equipment may be connected to a balanced inputs/outputs. Either use mono 1/4 " plugs or connect ring and sleeve of TRS plugs. Balanced use of Power output Headphones... -
Page 10: Connecting With Bluetooth
1.Activate the BT-function on your device (Mobile phone, tablet etc.) from which you want to play the music. See the operating instructions for that device. 2 Press the "1" button and activate BT-function. 3. Select the Bluetooth name "EXOTON" on your device to connect. 4.2 MIXER CONNECTED TO PASSIVE SPEAKERS 4.3 S-1502 MIXER SIZE 9.8in... -
Page 11: To Purchase Additional Gear And Accessories
（https://www.facebook.com/profile.php?id=100074241061145） 5.2 WARRANTY INFORMATION EXOTON is committed to providing the best warranty service for each product. From the date of original purchase, EXOTON provides a warranty of 1 year for any material or workmanship problems arising out of strict compliance with the instructions. EXOTON may repair the product within this warranty period. - Page 12 FOR MORE INFORMATION, PLEASE FOLLOW EXOTON'S SOCIAL MEDIA PLATFORM.
