ADP 45XX
Programme selector knob
Start button
Switches "on" when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
Programme chart
Programmes
Pre-Rinse
Quickwash
40°C
1)
50°C
Normal
Normal
65°C
Intensive
70°C
1)
Reference programme for energy label in compliance with
EN 50242 regulations;
2)
Refer to "User instructions";
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: "nk_customer@whirlpool.com".
Whirlpool is a registered trademark of Whirlpool USA
Before using the dishwasher, read the user instructions!
Quick Reference Guide
Loading instructions
cold
Crockery to be washed later.
Lightly soiled crockery with no dried-on
food.
Normally soiled crockery.
Normally or heavily soiled crockery.
Recommended programme for heavily
soiled crockery, especially suitable for
pans and saucepans.
Indicators
Add regeneration salt
Only add regeneration salt immediately
before starting a wash programme.
Add rinse aid
ON / OFF button
2)
Detergent
A
B
-
-
X
-
X
X
X
X
X
X
3)
Program data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.:
different loads, water temperatures - above or below 15°C -
as well as water hardness and power supply voltage, etc.
5019 396 98056
(We reserve the right to make technical modifications)
GB
3)
Consumption
Litres
kWh
Minutes
5.0
0.02
10
13.0
0.70
30
19.0
1.05
160
16.0
1.65
100
17.0
1.90
135
WH/I/B/GB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Whirlpool ADP 45 Series
Summary of Contents for Whirlpool ADP 45 Series
- Page 1 Important information for Test Laboratories: For detailed information on the EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”. 5019 396 98056 Whirlpool is a registered trademark of Whirlpool USA...
- Page 2 INSTRUCTIONS FOR USE BEFORE USING THE DISHWASHER/ CONNECTIONS ELECTRICAL CONNECTION PRECAUTIONS AND GENERAL RECOMMENDATIONS HOW TO FILL THE SALT CONTAINER HOW TO FILL THE RINSE AID DISPENSER HOW TO FILL THE DETERGENT DISPENSER CARE AND MAINTENANCE...
- Page 3 BEFORE USING THE DISHWASHER/ CONNECTIONS 1. Removing the packaging and controls: 4. Electrical connection: After unpacking, make sure that the dishwasher is • Closely adhere to local Electricity Board undamaged and that the door closes correctly. If in regulations. doubt, contact a qualified technician or your local •...
-
Page 4: Electrical Connection
3) Socket outlet / plug (valid for both countries) If the fitted plug is not suitable for your socket outlet, please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations. -
Page 5: Precautions And General Recommendations
PRECAUTIONS AND GENERAL RECOMMENDATIONS 1. Packing: • If a fault occurs, switch off the appliance and turn off the water tap. The packing box may be fully recycled as • On completion of the programme switch off the confirmed by the recycling symbol dishwasher and turn off the water tap. -
Page 6: How To Fill The Salt Container
HOW TO FILL THE SALT CONTAINER From a water hardness category of 1-2 (medium), before using the dishwasher, fill the salt container with regeneration salt (to find out the hardness level of water in your area, contact your local Water Board or check the last bill you received). -
Page 7: How To Fill The Rinse Aid Dispenser
HOW TO FILL THE RINSE AID DISPENSER The rinse aid facilitates drying and prevents the formation of unsightly spots and streaks on crockery. Before using the dishwasher for the first time, fill the rinse aid dispenser. Only use rinse aids recommended for use in domestic dishwashers. -
Page 8: How To Fill The Detergent Dispenser
HOW TO FILL THE DETERGENT DISPENSER Only use detergents recommended for use in domestic dishwashers. Only fill the detergent dispenser prior to starting a wash programme (see the Quick Reference Guide). 1. Press button C to open the cover. 2. How to fill the detergent dispenser. •... -
Page 9: Care And Maintenance
CARE AND MAINTENANCE Before cleaning or carrying out maintenance, switch off the appliance, disconnect the mains plug and turn off the water tap. Cleaning the outside of the appliance: To clean the outside of the appliance, use a neutral detergent and a damp cloth. - Page 10 CARE AND MAINTENANCE Cleaning the filters 1. Rotate the microfilter counter-clockwise (in the direction of the arrow “0”) and extract it (E). 2. Remove the wide-mesh filter (F). 3. Remove the fine-mesh filter (G). 4. Clean all filters under running water, paying attention not to bend the fine-mesh filter.
- Page 11 How to use the appliance Further indications are given in the single chapters and in the user instructions. Switch on the appliance Press the ON/OFF button. Large compartment A: With each wash cycle. How to fill the detergent dispenser Small compartment B: For programmes with pre-wash only.
- Page 12 Dishwasher loading instructions and racks provided Upper rack: depending on the model Multi-purpose support (A): Depending on the position, for long- handles utensils, cups and glasses. May be used in three different positions. Crockery holders (B): Depending on the position, for example plates, cups and long-stemmed glasses.
- Page 13 What to do if... If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see also the corresponding chapter in the user instructions). Problem Cause Remedy The appliance is not •...
Need help?
Do you have a question about the ADP 45 Series and is the answer not in the manual?
Questions and answers

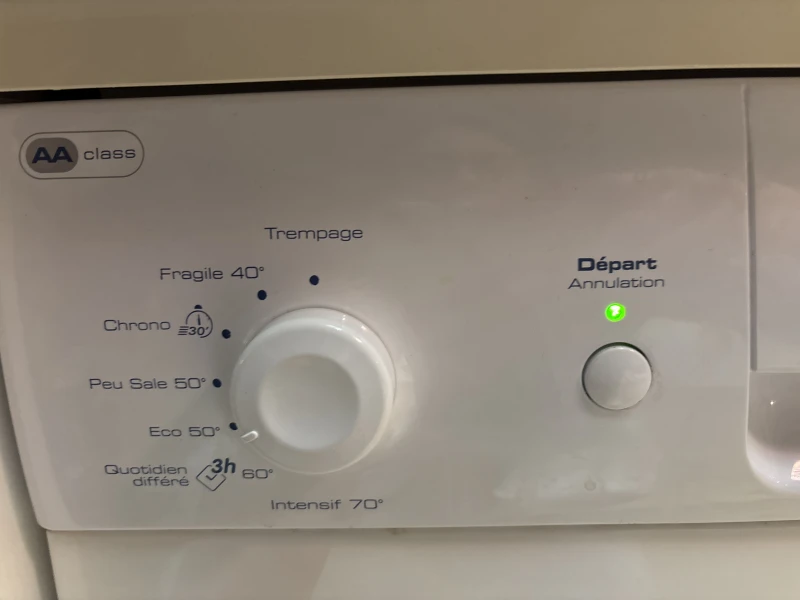

I have just bought a house with an ADP 4507 dishwasher. It’s French. The on button pushes in and the light goes on above the start button. But that button doesn’t push in or out. It just lights up. The machine is not starting
A non-functional start button on a Whirlpool ADP 4507 dishwasher could be due to the following issues:
1. Power Supply Issue: Ensure the dishwasher is properly plugged in and the power supply is working. If the appliance was switched off during a cycle, it should resume when powered on.
2. Door Not Closed Properly: The start button will not function if the door is not fully closed.
3. Control Panel Malfunction: If the electric indicator on the control panel is not working, the button may not register input.
4. Programme Not Selected: The start button only works after selecting a programme. Ensure a programme is set and its indicator lamp is lit.
5. Start Button Procedure: The start button must be pressed for 2 seconds to activate. If not held long enough, it may not function.
6. Mechanical or Electrical Fault: There could be internal faults in the start button mechanism or the control board.
Check each of these factors to diagnose the issue.
