- Page 1 PORTABLE POWER STATION OPS Series User Manual...
-
Page 2: Table Of Contents
Catalog I. Precautions For Use II. OPS Function Introduction III. Function Of The Button IV. LCD display Explanation V. ECO & SPORT Mode Explanation VI. Technical Performance Parameters VII. Frequently Asked Questions VIII. Packaging instructions IX. Product Transportation, Storage And MAaintenance... -
Page 3: Precautions For Use
I.Precautions For Use This manual records the important safety matters for correct useand maintenance of por table energy storage equipment to preventpersonal injury or property loss to users and others. Please read the text on the basis of fully understanding the followingcontents (signs and icons), and be sure to observe the safety precautions recorded In case of product damage, property loss and personal injury caused by non-compliance with the regulations, the manufacturer will not bear any legal liability. -
Page 4: Ops Function Introduction

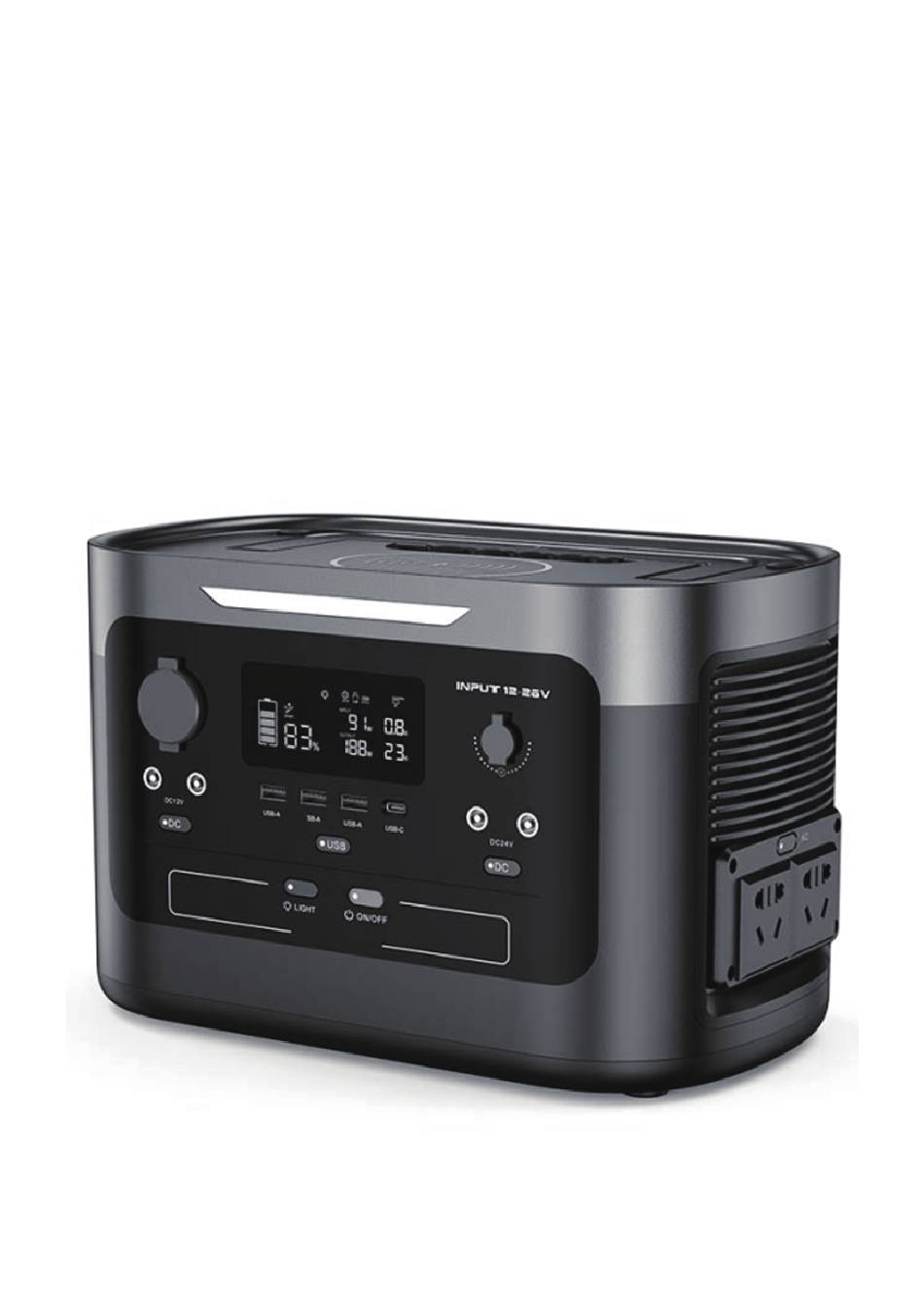

II.OPS Function Introduction Front View ③ ② ⑦ ① ⑤ ⑥ ④ Left Side View ⑫ ⑩ ⑧ ⑨ ⑪ Vertical View ⑬ ⑭... - Page 5 DC-12V Control button,(Cigarette lighter*1, DC output*2),DC-12V ① output indicator light ② LCD display ③ Adjustable LED light ④ Fast Charge USB-A port*3 ⑤ Fast Charge USB-C port*1 DC-24V Control button, DC output*2, DC-24V output indicator light ⑥ ⑦ Foldable Solar Panel, adaptor, Cigarette lighter input interface AC output control button, AC output indicator ⑧...
- Page 6 B. About USB output（USB-A*3 output ,USB-C*1 output） Press the switch button of USB output, when USB and TYPE-C indicator icons are displayed on the screen, it means USB-A and USB-C have started the output function. Press the USB output switch again. When the USB and TYPE-C indicators disappear on the screen, it means USB-A and USB-C have turned off the output function;...
- Page 7 E. Explanation of main power switch and screen icon Click the button ON/OFF to turn the system on or off When the system is started, long press the power button to switch between environmental protection mode and sports mode. (Please refer to other pages for mode details) In the environmental protection mode: After 2 minutes without any operation, the display screen will automatically shut down, the power indicator will flash slowly, and the system will enter the sleep mode.
-
Page 8: Function Of The Button
H. Wireless charging 15W wireless charging supports wireless charging of most mobile phones on the market; When charging wirelessly, the 'Wireless' icon will be displayed on the screen Support 5V/1.35A 9V/1.45A 9V/1.6A 9V/2A MAX:15W , III.Function Of Buttons ⑤ ④ ①... -
Page 9: Iv. Lcd Display Explanation
III.In the environmental protection mode : After 2 minutes without any operation, the display screen will automatically shut down, the power indicator will flash slowly, and the system will enter the sleep mode. If the sleep mode lasts for more than one hour, the system will automatically shut down and stop running. - Page 10 Number Icons explanation Details High and low When the battery voltage is too low, the icon ○ voltage alarm icon will flash When the device is in a high temperature environme nt or the battery temperature is too high during High temperature ○...
- Page 11 When the AC inverter is started, this icon will light up. AC output display ○ When the AC inverter is turned off, the icon goes out. icon Long press the AC button to switch the frequency. 0.It means that the remaining power is 0% 1.It means that the remaining power is 1~20% 2.It means that the remaining power is 21~40% ○...
-
Page 12: Eco & Sport Mode Explanation
When the device is outputting, the system will Duration of automatically calculate how long the battery can be ○ remaining used after the device is fully charged according to the power available current output power of the device. 1.0H means 1 hour, 0.1 means 6 minutes. -
Page 13: Technical Performance Parameters
VII.Technical Performance Parameters Specifications Model Battery Capacity(±2%) Net weight OPS600W 519Wh/140400mAh 6.5kg 23.4Ah OPS800W 732Wh/198000mAh 7.2kg 33.0Ah OPS1000W 923Wh/249600mAh 8.2kg 41.6Ah Executive Standards Q/LN 001-2021 UN38.3 FCC ROHS CE PSE Output Max 13.6V Cigarette lighter: x 1 : dc/10A Max power：120W DC12V output DC5525 x 2 : Max Dc/5A USB-A(x3) 5V/3A, 9V/2A, 12V/1.5A... - Page 14 Input Charging time of standard ad OPS600-AC Adapter 24V/100W,(support 12V~26V)/4A apter: 5H~6H Charging time of standard ad 24V/120W,(support 12V~26V)/5A OPS800-AC Adapter apter: 5H~6H Charging time 24V/150W,(support 12V~26V) OPS1000-AC Adapter of standard ad /6.25A apter: 6H~7H Solar Panel 18V dc support 60W~ 120W solar panel. Car charger 12V dc/5A MAX 70W 24V dc/MAX 100~150W Battery...
-
Page 15: Frequently Asked Questions
VIII.Frequently Asked Questions Outdoor activities: photography, video shooting, VR shooting, unmanned aerial vehicles, computers, car refrigerators, water boiling, cooking and other living electricity needs. Application scenario Outdoor work: electric soldering iron, cutting machine, electric rotor, surveying and mapping exploration and other engineering power demand. Fishing enthusiasts: mobile phones, water bottles, lighting, leisure and entertainment, etc. - Page 16 The system will automatically calculate the service life of the equipment and make records. When the Service life of battery life decreases, the system will automatically equipment adjust the output power. When the device is not charged, the current battery Meaning of battery temperature and automatic shutdown time will be display icon...
- Page 17 If these icons flash during operation. It means that the output is overloaded, overcurrent, or short circuited, and the system will automatically disconnect the output to ensure that the equipment What these icons is not damaged.Overload, overcurrent and short mean when they flash circuit belong to destructive tests, which cannot be operated continuously for more than 3 seconds.
-
Page 18: Packaging Instructions
When the system prompts that the Disable output. battery temperature is outside - 18~60 ℃ When the system In this case, the device will perform automatic prote prompts that the ction mode when charging, and the optimal charging battery temperature temperature of the device is 20 ℃~30 ℃, which can is outside 0~45 ℃... -
Page 19: Product Transportation, Storage And Maaintenance
DC Charging Line Color box (Containing pearl cotton) Warranty Card Adapters (adapters of different sizes are delivered according to different models) X.Product Transportation, Storage And Maintenance Product transportation, storage and maintenance Transportation Power off is required for transportation Please store the equipment in a dry place to avoid direct contact with water.To prolong the battery life, please Storage keep the battery power at 30%~50%, then turn off the...
