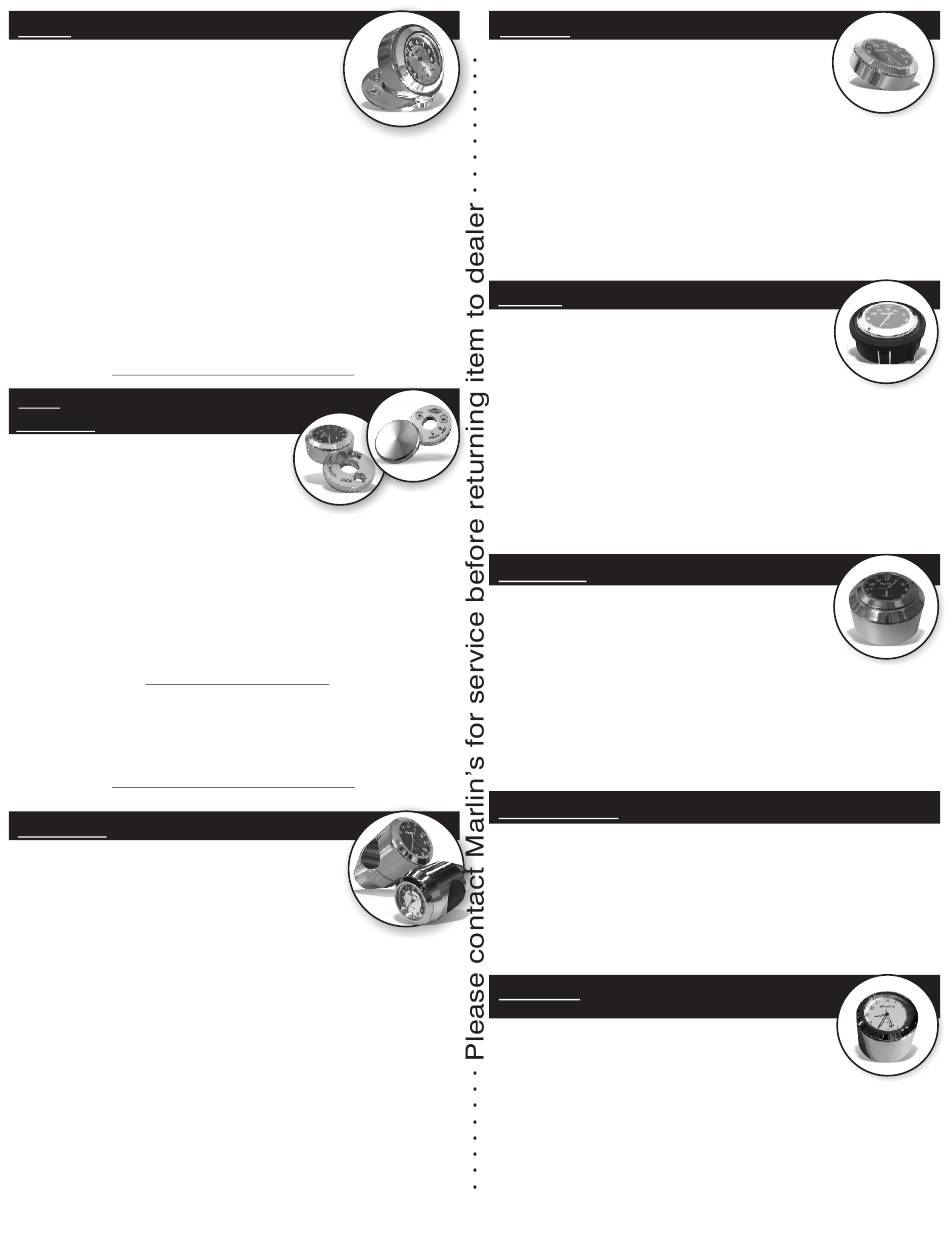

Marlin's Genuine Accessories RKF Installation And Operation Instruction

RKF
Roadking - All models 94'-Present ®
®
The RoadKing Flip Fork Lock Cover Clock or Thermometer takes the
place of the factory installed fork lock plate. The RKF comes with
either a clock or thermometer, one extra rubber compression ring, two
screws, one clear plastic spacer and billet mount.
1) Carefully remove the item from its package.
2) To remove the clock pry slowly under the edge of the clock with the long
flat side of a knife or similar object in a screwdriver style motion or use the "Pull Here" tab if so
equipped, you may also be able to push through the hole in the bottom of the holder. Make sure
that the clock does not fall and become damaged.
3) Carefully pry off factory plastic fork lock plate from your bike that has Unlock-Lock on it.
4) Then remove the two Phillips screws beneath the lock plate.
5) Open the mount by pulling the top half up from the base, place the mount and the clear
rubber spacer that goes under the mount in position over the two exposed screw holes.
®
6) Apply LOCTITE 242 blue to the thread of the screws provided and install the screws to hold
®
the cover in place. (The LOCTITE prevents loosening of threaded fasteners.)
7) Close the Fork Lock Cover.
8) After setting the time per instructions on
holder/mount securely as per instructions on in the General Care section of these instructions.
Lubricate spring loaded ball bearing that holds cover open and closed periodically.
NO KEY MODIFICATION IS REQUIRED FOR RKF
RKS
®
Roadking - All models 94'-Present
RKSFLC
®
Roadking - All models 94'-Present
®
The Road King Swivel Fork Lock Cover with or without
Clock or Thermometer takes the place of the factory
installed fork lock plate. The unit comes with billet mount,
two screws, one clear plastic spacer and if equipped either
clock or thermometer, one extra rubber compression ring.
1) Carefully remove the item from it's package.
2) Carefully pry off factory plastic fork lock plate from your bike that has Unlock-Lock on it.
3) Then remove the two Phillips screws beneath the lock plate.
4) Open the mount by rotating the top half clockwise, place the mount and the clear rubber
spacer that goes under the mount in position over the two exposed screw holes.
®
5) Apply LOCTITE 242 blue (or similar thread lock) to the thread of the screws provided and
install the screws to hold the cover in place. (The LOCTITE prevents loosening of threaded
fasteners.)
6) The Fork Lock Cover turns counterclockwise to close.
7) YOU WILL NOT need to modify your key to use the factory fork lock after installation.
Lubricate the pivot point and the spring loaded ball bearings hidden near pivot, periodically.
If Equipped with Clock of Thermometer
8) To remove the clock or thermometer pry slowly under the edge at the bottom with the long flat
side of a knife or similar object in a screwdriver style motion, you may also be able to push
through the hole in the bottom of the holder. Make sure that the clock does not fall and become
damaged.
9) Set the time and install the clock or thermometer into the holder/mount securely as per
instructions in the General Care section of these instructions.
NO KEY MODIFICATION IS REQUIRED FOR RKS
BBCS2
Most 7/8"-1"-1 1/4" Bars
The Bullet Billet Clock or Thermometer fits on 1" bars or 7/8" bars
utilizing the included clear plastic spacer.
The Bullet Billet 1 1/4" Clock or Thermometer fits on 1 1/4" bars.
Please note how the unit is assembled so you can re-assemble it
properly on the bar.
The BBCS2 comes with either a clock or thermometer, one extra rubber
compression ring, two internal screws, one clear plastic spacer, one hex head wrench and billet
mount.
(The BBCS2 1 1/4" has an additional face plate including two additional screws.)
1) Carefully remove the item from its package.
2) To remove the clock pry slowly under the edge of the clock with the long flat side of a knife or
similar object in a screwdriver style motion or use the "Pull Here" tab if so equipped. Make sure
that the clock does not fall and become damaged.
3) Remove the two internal screws, separating the two bullet halves.
3a) The BBCS2 1 1/4" requires the removal and re-installation of a face
plate via two additional screws that the clock will insert into.
4) Place the BBCS2 mount halves in the position of your choice on the bars (a flat area looks
best, keep away from curves or areas the bar may not be a consistent thickness), re-insert the
supplied screws and tighten gently and evenly (for the mount to tighten properly there should be a
small gap between the two halves, no bar is the same so the gap will vary
4a) The BBCS2 1 1/4" requires the removal and re-installation of a face
plate via two additional screws that the clock will insert into.
5) After setting the time per instructions on
holder/mount all the way as per instructions in the General Care section of these instructions.
this sheet , install the clock or thermometer into the
®
- do not over-tighten ).
this sheet , install the clock or thermometer into the
TOCS
Installs to any flat surface or Roadking tank panel
The Tape on Billet (TOCS) Clock or Thermometer can be installed by using the
supplied industrial grade two sided adhesive on any flat surface you would like,
or using the supplied 1/4" x 20 screw for bolt down applications like the
®
Roadking tank panel.
The TOCS comes with either a clock or thermometer, one extra rubber
compression ring, two adhesive pads, one 1/4"x 20 screw and billet mount.
1) Carefully remove the item from its package.
2) To remove the clock pry slowly under the edge of the clock with the long flat side of a knife or similar
object in a screwdriver style motion or use the "Pull Here" tab if so equipped, you may also be able to push
through the hole in the bottom of the holder. Make sure that the clock does not fall and become damaged.
3) To install on the center console / tank panel of your Road King just remove the screw from the center
console washer and replace factory screw and washer assembly with the TOCS mount holder, using the
supplied screw.
3a) For double sided adhesive application make sure the area you are mounting to is clean and free of
debris and oils. A flat, smooth, clean surface is best suited for optimal holding strength.
4) After setting the time per instructions on
holder/mount all the way as per instructions in the General Care section of these instructions.
FLHT
All "Glide" Models
®
The FLHTC/FLHTCI ELECTRA GLIDE CLASSIC clock or thermometer takes
the place of the existing factory fairing plugs. The FLHTC/FLHTCI ELECTRA
®
GLIDE CLASSIC clock or thermometer comes with, one extra rubber
compression ring and factory style fairing mount.
1) Carefully remove the item from its package.
2) To remove the clock pry slowly under the edge of the clock with the long flat side of
a knife or similar object in a screwdriver style motion or use the "Pull Here" tab if so equipped, you may
also be able to push through the hole in the bottom of the holder. Make sure that the clock does not fall
and become damaged.
3) The installation instructions of your fairing/windshield, from your owners manual or service manual to
will give you the information on removal and replacing the factory fairing plugs.
4) After setting the time per instructions on
holder/mount all the way as per instructions in the General Care section of these instructions.
Installation tip from a valued customer:
"It took me longer to get my drill out to cut a hole in the plugs than it did to install the clock and
thermometer! I did not have to remove the fairing at all. I wish all things were that easy to install. ;-) Once I
cut a 1/2" hole, put my finger in it and pulled, the factory plug came out and the new parts just snapped
right into place!"
FSBC2
®
Fits FXDWG , All 06'- Present Dynas
And 91'- Present Softails (Except Springers )
The FSBC2, Large Fork Stem Clock or Thermometer, takes the place of the
factory chrome fork stem bolt cap/cover.
The FSBC2 comes with clock or thermometer,
ring, one 1/4"x 20 screw and billet mount.
1) Carefully remove the item from its package.
2) To remove the clock pry slowly under the edge of the clock with the long flat
side of a knife or similar object in a screwdriver style motion or use the "Pull
Here" tab if so equipped, you may also be able to push (the bolt) through the hole in the bottom of the
holder. Make sure that the clock does not fall and become damaged.
3) Carefully remove the factory chrome cap from over the fork stem bolt by holding firmly and turning
counterclockwise.
4) Place the FSBC2 mount in position over the exposed screw hole in the fork stem nut, insert the
supplied screw and tighten.
5) After setting the time per instructions on
holder/mount all the way as per instructions in the General Care section of these instructions.
FSBC2/a
Fits Newer Sportsters® and V-Rods®
The FSBC2/a, Large Fork Stem Clock or Thermometer, covers the factory fork stem bolt.
The FSBC2/a comes with clock or thermometer, one extra rubber compression ring, two adhesive pads
and billet mount. 1) Carefully remove the item from its package. 2)
the edge of the clock with the long flat side of a knife or similar object in a screwdriver style motion. Make
sure that the clock does not fall and become damaged. 3) To affix mount to stem bolt use the included
adhesive pad/s, pre-clean back of mount and top of stem bolt with isopropyl alcohol or similar agent to
ensure proper adhesion. 4) Place adhesive pad on back side of mount. 5) Stick mount to stem bolt. If
bottom edge of mount prevents mount from securely sticking to bolt add second pad for additional height.
6) After setting the time per instructions on this sheet, install the clock or thermometer into the
holder/mount all the way as per instructions in the General Care section of these instructions.
FSBC1
®
Fits All Sportsters , FXRS , FXRS-SP , FXRS-CON
®
FXLR and Later FXD & Pre-06' Dyna Glide Models.
The FSBC1 Small Fork Stem Clock or Thermometer, takes the place of the
factory chrome fork stem bolt cap/cover or covers the exposed stem nut. The
FSBC1 comes with clock or thermometer,
one 1/4"x 20 screw and billet mount.
1) Carefully remove the item from its package.
2) To remove the clock pry slowly under the edge of the clock with the long flat side of a knife or similar
object in a screwdriver style motion or use the "Pull Here" tab if so equipped, you may also be able to
push (the bolt) through the hole in the bottom of the holder. Make sure that the clock does not fall and
become damaged.
3) Carefully remove the factory chrome cap from over the fork stem bolt by holding firmly and turning
counterclockwise. (if your bike is not equipped with the chrome cap and doesn't have a 1/4" tapped hole in
the bolt we can supply a replacement tapped bolt at a low cost.)
4) Place the FSBC1 mount in position over the exposed screw hole in the fork stem nut, insert the
supplied screw and tighten.
5) After setting the time per instructions on
holder/mount all the way as per instructions in the General Care section of these instructions.
®
®
this sheet , install the clock or thermometer into the
this sheet , install the clock or thermometer into the
®
® ®
