Summary of Contents for Zebronics ZEB-A3L2

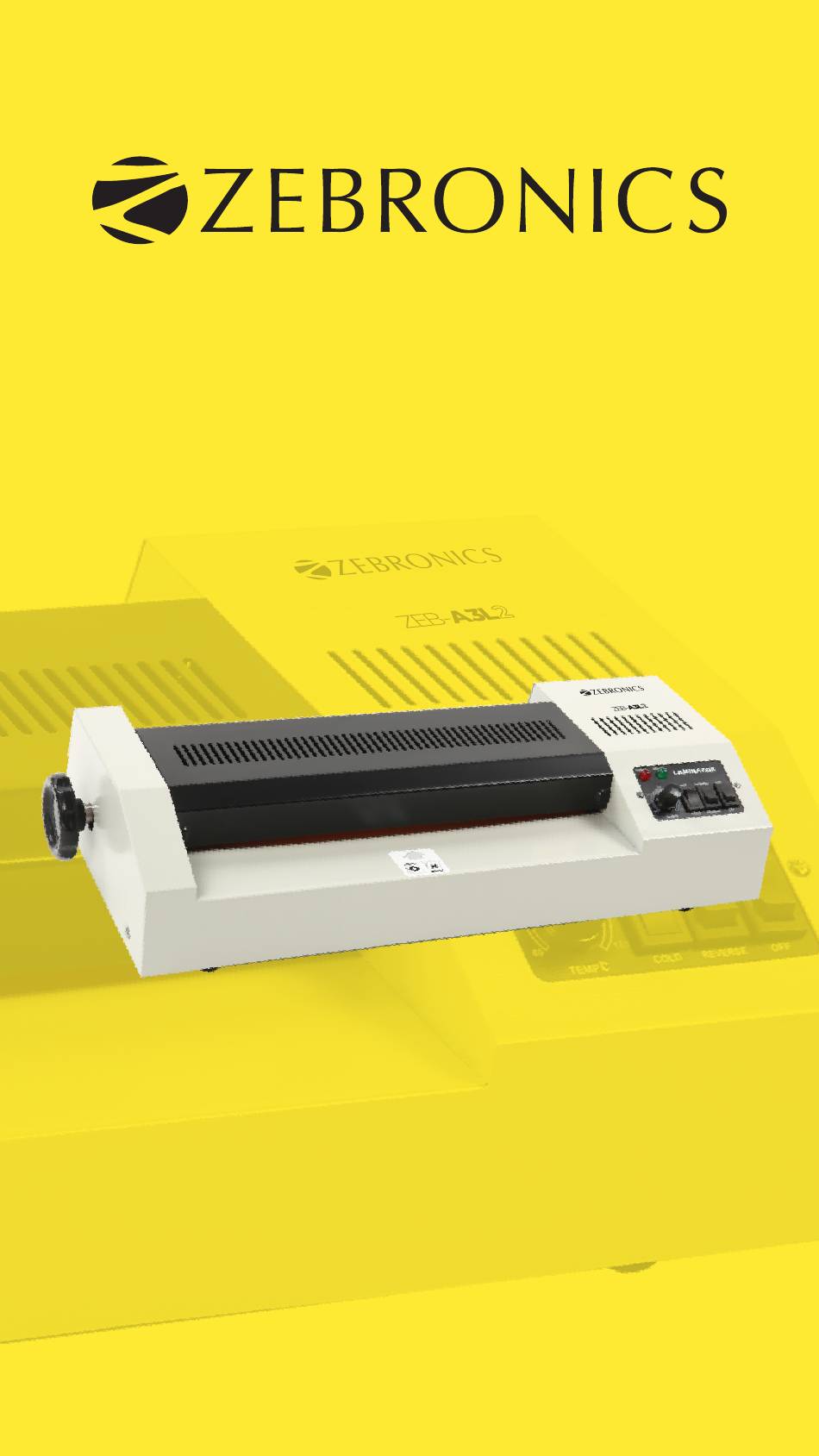

- Page 1 Thermal Laminator ZEB-A3L User Manual www.zebronics.com...
- Page 2 Bubble free & smooth lamination Anti-Jam system Two way lamination with quad rollers Shock proof Excellent gumming quality Silent & effective drive Quick Warm-Up Specifications Model : ZEB-A3L2 Max. Power Consumption : 620W Max. Laminating Width : 330mm Max. Lamination Thickness : 1mm...
- Page 3 Min-Max. Pouch Thickness : 50-250 microns Lamination Type : Thermal Pouch Max. Laminating Speed : 500mm/min Heating System : Quartz Tube Min-Max Temperature Controller : 80-180°C No. of Rollers : 4nos. Roller Diameter : 25mm Warm-up time : 3-5min Supported paper Sizes : A3/A4/A5/A6 Cable Length : 1.2m...
-
Page 4: Product Description
Product Description 1. Power indicator 2. Ready indicator 3. Temperature controller 4. Hot/Cold switch 5. Forward/Reverse switch 6. Power On/Off 7. Sheet Exit 8. Jam release knob 9. Sheet Entrance... - Page 5 Temperature Settings Temperature Range Thickness of film 250mic 160~180ºC 200mic 140~160ºC 175mic 135~140ºC 150mic 130~135ºC 125mic 125~130ºC 100mic 115~125ºC 75mic 105~115ºC 50mic 80~105ºC How to use: 1. Place it on a flat surface. 2. Kindly make sure there is enough space & do not keep anything beside the laminator.
-
Page 6: Troubleshooting
Damaged rollers or adhesive on rollers machine clean rollers Maintenance: 1. After usage make sure to unplug and keep it in a Safe ambient temperature. 2. When the machine is not in use for a long time Please Cover it. ISO 9001:2015 Certified Company www.zebronics.com...
