JADEMAR LIGHTING PVR Series Installation Instructions

PVR SERIES GARAGE & CANOPY
INSTALLATION REQUIREMENTS
WARNING:
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
• Only licensed electricians should install it to prevent personal injury or product damage.
• Disconnect power before a emp ng installa on or servicing to avoid electric shock or component damage.
• This product must be installed following the na onal electric code (NEC) and all applicable federal, state, and local electric codes and safety
standards
• Disconnect the product and allow cooling before servicing.
• Any altera on or modifica on of this product is expressly forbidden as it may cause serious personal injury, death, property damage, and/or
product malfunc on.
• This product must be properly grounded to prevent product malfunc on and/or electrical shock.
• This luminaire is designed to operate in ambient temperatures ranging from -40°c to 40°c and to be horizontally mounted with the LEDs
facing down.
• This product is unavailable for several special environments, such as places with corrosive gas liquids or high-pressure water vapor.

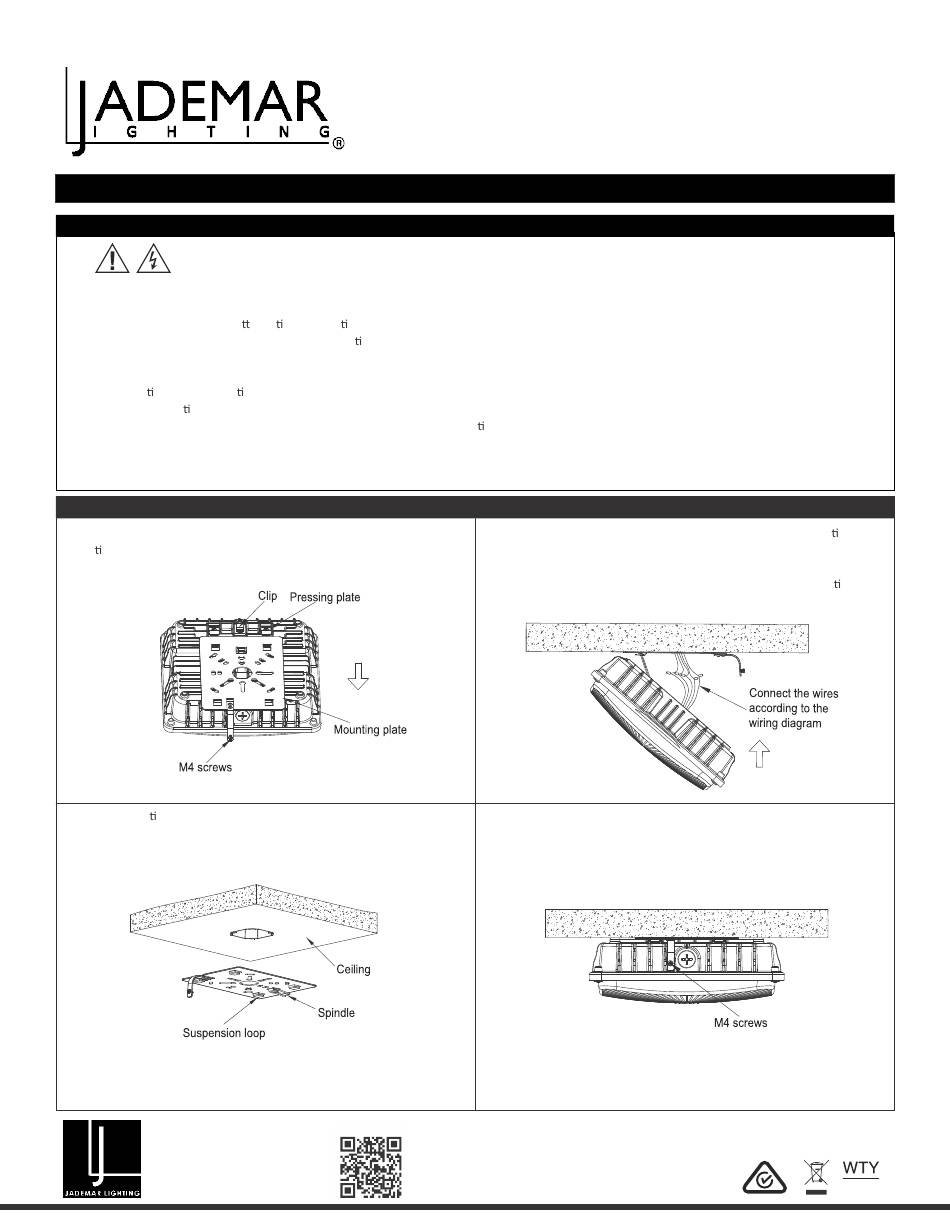

1.0 INSTALLATION STEPS - SURFACE MOUNTED WITH J-BOX (DEFAULT)
1. Loosen and remove the side M4 screws which used to fix the
moun ng plate.
2. Fix the moun ng plate to the ceiling with the screws.
Miami, FL USA - info@jademar.com
T: 305.640.0465 - F: 305.640.0468
WWW.JADEMAR.COM
INSTALLATION INSTRUCTIONS
Risk of electric shock and serious injury. SHUT OFF BREAKER AT PANEL BEFORE INSTALLING.
Revised 05/2023
Page 1 of 2
3. Connect the clip on the fixture top the spindle of the moun ng plate
to make sure the fixture will not slip and fall. Connect the line voltage
to the wires coming out from the fixture following the wiring diagram.
Push the pressing plate into the suspension loop on the moun ng
plate.
4. Lock the M4 screws to complete the installation.
