Buckingham ErgoLite Instructions Manual

Saddles
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

"ErgoLite" P/N 17904, 17906 & J17904, J17906 "Alta Verde" P/N 179061 Series Saddles
Warning: Do not use this product if you cannot understand and follow the instructions and warnings that come with it and
complete all necessary functions.
The "ErgoLite" arborist saddle is designed for the professional arborist. It is fully adjustable at the waist, legs and suspension
bridge to provide ease of use, comfort, adjustability, versatility and safety. The "ErgoLite" offers advantages over a
conventional saddle including:
multiple adjustments to obtain a custom fit.
the ability to change the length of or replace the suspension bridge.
* Prefix J denotes product is CE certified (EN 358-2018 & EN 813-2008) in accordance with the PPE Regulation (EU)
2016/425. The declaration of conformity is also supplied with every unit.
** Buckingham arborist saddles labeled with product numbers prefixed with H denotes product conforms to Australian
standard AS/NZ 1891.1:2007 section 3.3.3

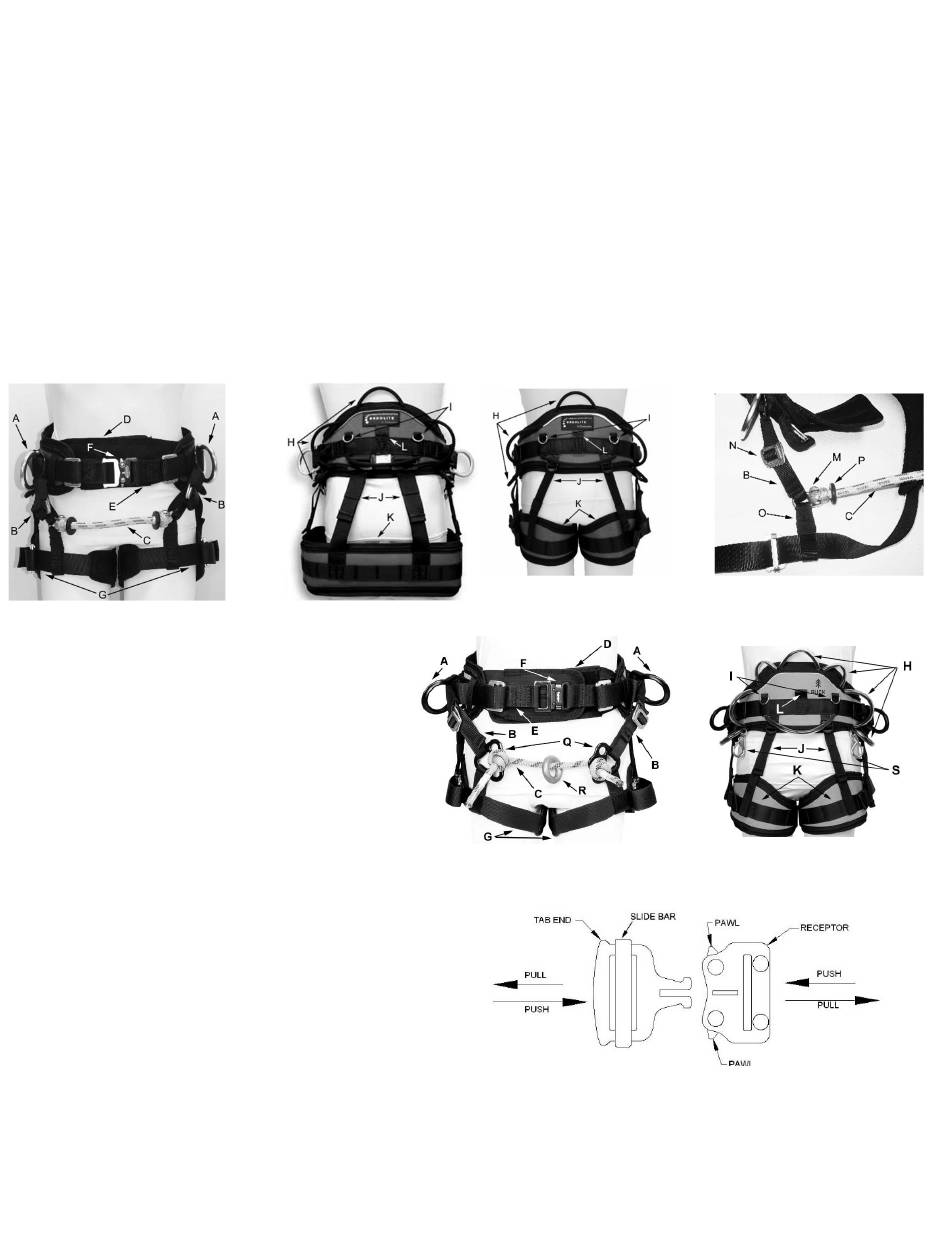

A-Work Positioning Dee Ring
B- Suspension Bridge Adjustment Strap
C-Suspension Bridge
D-Abdominal Stabilizer System
E-Waist Belt Strap
F-Waist Belt Quick Connect Buckle
G-Leg Strap with Quick Connect Buckle
H-Accessory Loops
(PN17904 & 17906 series have 6 Loops)
(PN179061 series has 8 Loops)
I-Accessory Rings
J-Leg Pad Adjustment Straps
K- Batten Seat (Model 17904)
K - Leg Pads (Model 17906 & 179061)
L-Suspender Attachment Loop
M -Clevis Shackle
N-Interlocking Buckles
O-Leg Pad Attachment Strap
P- Suspension Bridge Bumpers
(Model 1704 & 17906)
Q- Suspension Bridge Paws (Model 179061)
R- Full Floating Suspension Ring (Model 179061)
S- Chainsaw attachment snaps
ErgoLiteInst.doc
PN 230291 (Rev 8/18/23)
BUCKINGHAM MFG.
Instructions/Warnings
Model 17904 (rear view)
Model 179061 (front view)
Figure 1
Model 17906 (rear view)
Model 179061 (rear view)
page. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ErgoLite and is the answer not in the manual?

Questions and answers

Related Manuals for Buckingham ErgoLite

Summary of Contents for Buckingham ErgoLite

  • Page 1 The “ErgoLite” arborist saddle is designed for the professional arborist. It is fully adjustable at the waist, legs and suspension bridge to provide ease of use, comfort, adjustability, versatility and safety. The “ErgoLite” offers advantages over a conventional saddle including: ...

  • Page 2: Wearing Instructions

    Suspension Bridge. Use only replacement Suspension Bridges (manufactured from approved tree climbing rope) supplied by Buckingham Mfg. Use bridge PN W3-size for PN 17904 & 17906. Use bridge PN WE10 or WE10R for PN 1790671. Attaching the Waist Straps Instructions: (For use only when waist straps have been removed) Lay the Back Pad inside down on a flat surface.
  • Page 3 NOT the individual.  Buckingham arborist saddles are manufactured in accordance with the ASTM F887, EN 358 and EN 813 standards and are intended for use as personal protection equipment only, not for towing or hoisting and when properly used, comply with the requirements of the ANSI Z133-17 standard.
  • Page 4  Never punch additional holes in or alter any belt or harness in any way.  This equipment should be a personal issue to the employee using it.  Only Buckingham Mfg. Co. or those people authorized in writing by Buckingham Mfg. Figure 9a Co.
  • Page 5 Maintenance: Lubricate pawls weekly or as often as required to maintain smooth operation (no binding) with a lightweight lubricant such as WD-40 . Wipe any excess lubricant off with a clean dry cloth. Buckingham's primary concern is to provide a quality product to ®...
  • Page 6 Moderate Buckingham recommends cleaning hardware in this condition using an ultrafine Scotch Brite scouring pad (3M part number 14049 available at distributors such as Grainger), cut to approximately a 1” x 1” square, and with WD-40 Multi-Use Product or Hilco Lube lubricant cleaner (also available at retail distributors such as Grainger), scrub the areas that exhibit rust in a back and forth motion until all surface rust has been removed.
  • Page 7 All users must comply with OSHA/ANSI/ASTM standards prior to and in using such equipment. For more information regarding safe and appropriate use of equipment, please contact Buckingham Manufacturing at 1-800-937-2825.

  • Page 8: Our Guarantee

    Before use of the product, ensure to register and confirm the product at www.buckinghammfg.com/register. BUCKINGHAM MFG. BINGHAMTON, NY 1-800-937-2825 www.buckinghammfg.com Information contained in these written instructions supersedes all other information (written, audio, video etc.) produced by Buckingham Mfg. prior to the revision date of this document ErgoLiteInst.doc page. 8 PN 230291 (Rev 8/18/23)

This manual is also suitable for:

Alta verde1790417906J17904J17906179061
