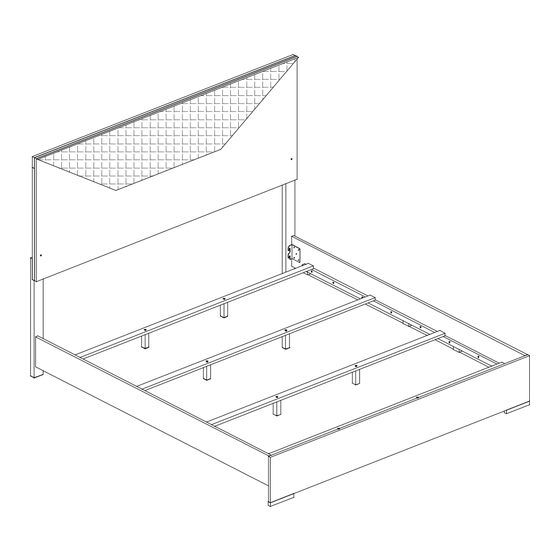

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 224971KE(B1&B2) Eastern King Bed REVISION 0 : 07/05/2024 PAGE 1 OF 5 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
224971KE(B1&B2) ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. WARNING! 1. -
Page 3: Hardware Identification
224971KE(B1&B2) ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. WARNING! 1. - Page 4 224971KE(B1&B2) ITEM: ASSEMBLY INSTRUCTIONS STEP 1 STICKER(R) STICKER (L) ** BACK VIEW STEP 2 COASTERFURNITURE.COM PAGE 4 OF 5...
- Page 5 224971KE(B1&B2) ITEM: ASSEMBLY INSTRUCTIONS STEP 3 leveler STEP 4 COMPLETE POWER OUTLET ON&OFF TOUCH SWITCH BUTTON PLUG HEAD POWER CABLE CONNECTOR WIRE COASTERFURNITURE.COM PAGE 5 OF 5...
- Page 6 224971KE(B1&B2) ITEM: Inner Size : 77.00"W X 80.50"D 79.25" 20.00" 76.75" 76.75" 59.50" 6.75" 3.75" 12.50" 2.00" 1.00" 81 . 00" 64.25" 83.00" 78.50" Note : Dimension tolerance ±5% COASTERFURNITURE.COM...
