Summary of Contents for Pakton Kencove EKD16

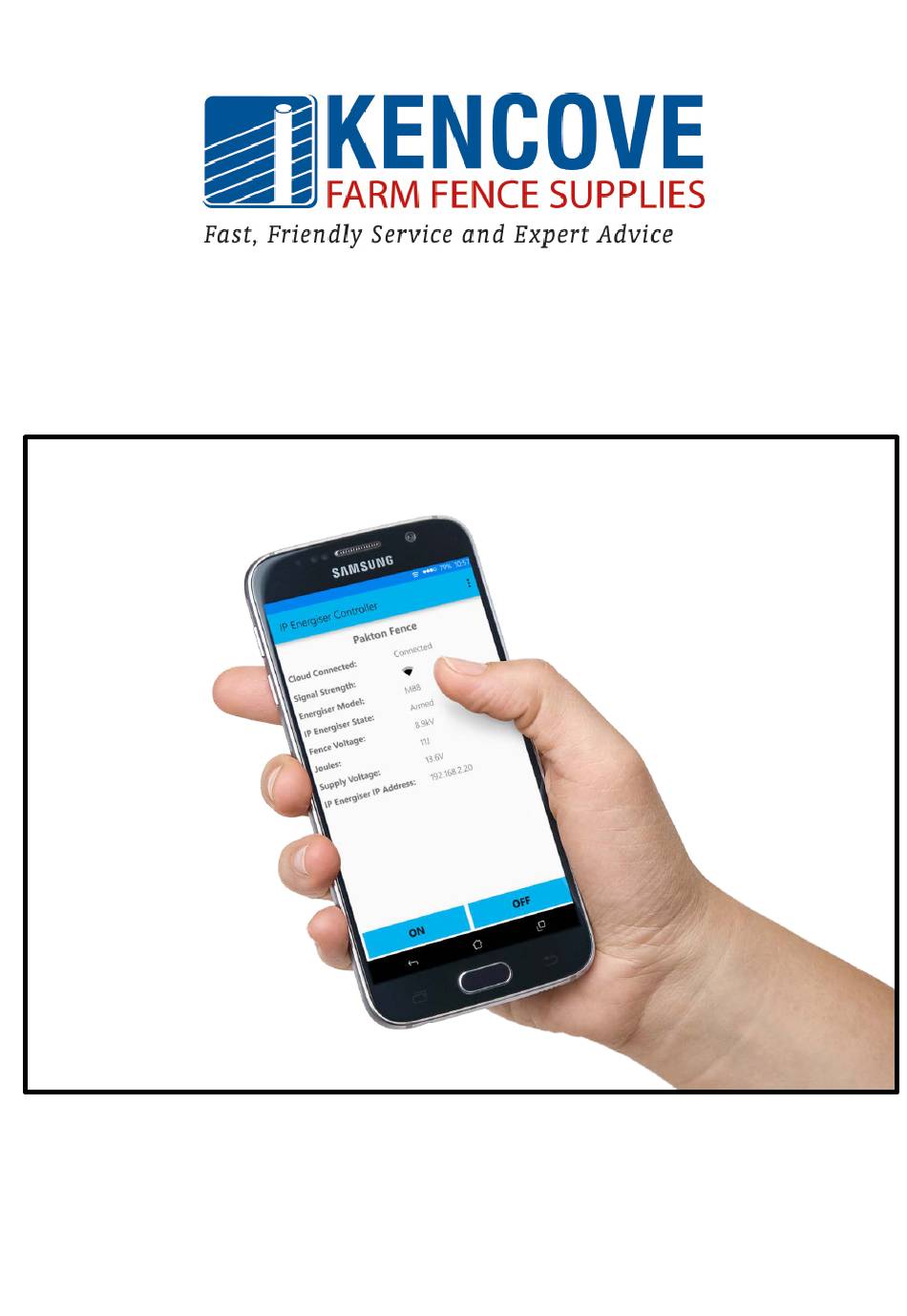

- Page 1 Energizer Wi-Fi Setup Instructions...
- Page 2 Wi-Fi Energizer Instructions Version: Wi-Fi Energizer Controller 1.1 Introduction In order to allow remote control of the EKD16 Energizer, you will need to set up its Wi-Fi connection. If you do not need the remote control feature, you may simply connect the energizer to the fence, and turn it on and off via the front panel on/off switch.
- Page 3 7. The Wi-Fi Energizer Controller App from Kencove (see below) Get Set: Setting up the Energizer Android 1. Plug the energizer into the power supply and turn it on. Be aware that the energizer could start pulsing. If it does, turn it off using the ‘Power’ button on the front of the energizer. 2.
- Page 4 4. Open the navigation menu and tap settings. Press Configure IP Energizer. Choose the SSID of your home Wi-Fi network from the drop down box, and enter the password if your network requires one. Next, enter the energizer serial number, and finally, choose a password. You will need this password again later when adding a site.
- Page 5 5. Press submit. You will see the following screens as it configures the energizer with the details you have entered. 6. Look at the screen on the front of your energizer. If you have entered in the Wi-Fi details correctly, it should connect to your home Wi-Fi network and display ‘IP-3’.
- Page 6 4. Open the navigation menu and tap settings. Press ‘Configure IP Energizer’. 5. Exit the app and go to your device’s Wi-Fi settings and select the network ”IPEnergizer”. Now return to the IP Energizer App.
- Page 7 6. You should be on the ‘Configure IP Energizer’ page. From here enter your Wi-Fi SSID and password, as well as the energizer serial number and a password. Click 'Submit', and it will attempt to configure your energizer. 7. Look at the screen on the front of your energizer. If you have entered in the Wi-Fi details correctly, it should connect to your home Wi-Fi network and display ‘IP-3’.
- Page 8 Go: Take Control of Your Energizer Android 1. To control the energizer from your Android device, you simply need to add a site. Go to the Settings screen and press add site. Refer to part 4 under the ‘Get Set: Setting up the Energizer’ section of this manual if you need a reminder as to how to get to the settings.
- Page 9 3. The Home screen should show ‘Cloud Connected: Connected’ indicating that you have successfully connected to our cloud servers. Below this is a list of your energizer sites. These show the fence voltage and two buttons to turn your energizer on and off. For a more in-depth view of one of your sites, you can press the site name, in our case ‘Horse Paddock’.
- Page 10 10. You can edit the Sites settings at any point via the edit button or stop monitoring a site by deleting it using the trash can icon. To do this, navigate to the edit sites page. Congratulations. You can now monitor and control your energizer from anywhere in the world! If you have not already done so, you can now connect the energizer to the fence (as per the installation instructions in the Installation and User Manual), making sure that it remains in range of your home Wi-Fi network.
- Page 11 iOS Device 1. To control the energizer from your iOS Device, you simply need to add a site. Go to the Settings screen and press add site. Refer to part 4 ‘Get Set: Setting up the Energizer’ above if you need a reminder as to how to get to the settings.
- Page 12 From here the Site Name you entered will appear at the top of the screen, followed by the status information of your energizer, which includes: h. Signal Strength: This indicates how well your energizer is connected to your Wi-Fi network. It is not the signal strength of your mobile phone. Energizer Model: This shows the model name of your energizer.
- Page 13 Congratulations. You can now monitor and control your energizer from anywhere in the world! If you have not already done so, you can now connect the energizer to the fence (as per the installation instructions in the Installation and User Manual), making sure that it remains in range of your home Wi-Fi network.
- Page 14 Energizer LCD Display After it is turned off, the energizer will display the DC supply voltage for a few seconds and then show the IP Energizer status. 24 10 DC Supply Voltage (in this case, 24.1 V). IP-1 The energizer is waiting for you to set the Wi-Fi Network details. IP-2 Connecting to the saved Wi-Fi network name (SSID).
- Page 16 Manufactured for Kencove Farm Fence Supplies by Pakton Technologies Version 1.1...
