Summary of Contents for Rexing J1772
- Page 1 Level 1 EV Charger User Manual The information in this manual is subject to change without notice. www.rexingusa.com...
- Page 2 (877) 740-8004 Our support team will respond to you as soon as possible. Always a surprise with Rexing Check us out here. • https://www.facebook.com/rexingusa/ • https://www.instagram.com/rexingdashcam/ • https://www.rexingusa.com/support/registration/...
- Page 3 Warning • This portable Level 1 EV charger requires an electrical outlet that has a Ground Fault Circuit Interrupter (GFCI) or Residual Current Device (RCD) installed at the electrical supply panel or the electrical outlet itself. • Do not use this charger if it shows signs of damage •...
- Page 4 Charging Cable Safety Thanks for using adjustable IC-PCD, please read instructions carefully before using the product in order to help you use the product correctly. Caution The symbol means: In the case of many or some extent endager the safety of personal and property or damage the product facilities, give a reminder to avoid accidents.
-
Page 5: What's In The Box

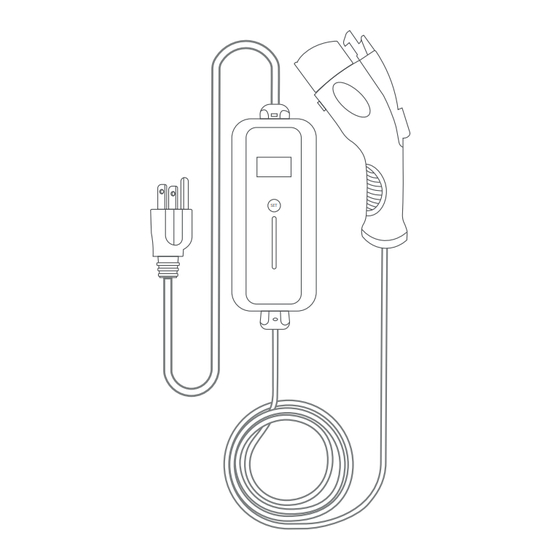

What’s in the box? Level 1 EV Charger User Manual The information in this manual is subject to change without notice. www.rexingusa.com Evmobile Charger User Manual... -
Page 6: Product Overview
Product Overview Front panel display information 26 C 11.8 V Device temperature KWh charged 0V 0.0A 0.0kw Charging current Current settings 00:00:00 Charging voltage Charging speed (KW) 0:00kwh Connector Light Indicator Screen Status Status R/G/B/Blinking Self-inspection interface Disconnected Self-inspection Blue on Function interface Disconnected Standby... - Page 7 Connector Light Indicator Screen Status Status Red on Overcurrent Protection Connected Charging fault Red on Overtemperature Protection Connected Charging fault Red on Relay Fault Connected Charging fault Red on Communication Failure Connected Charging fault...
-
Page 8: Basic Operation
Basic Operation Charging your vehicle To check whether the local voltage is consistent with the rated voltage. Charging operation steps Insert Plug into appropriate wall outlet. Outlet Configuration Voltage Recommended Current Nema 5-15 110V AC 12 AMP 240V AC 16 AMP Nema 6-20 Nema 14-50 240V AC... - Page 9 Plug into power supply, the LED will power on, the equipment start to self-inspection, it will be for 5s. then you can see the charging interface. EV Charger ZL-ABRA-M&P EV Charger ZL-ABRA-M&P AC7K02 AC7K02 ZL-Demo-E2 ZL-Demo-E2 Self-inspection interface 27 C 5.8 V 214 V 15.2A 3.3kw 00:00:00...
- Page 10 Current Setting When the blue indicator light is on (not blinking), press and hold SET for 3s in charging interface. The function interface is on. Three options you can see. 11.8 V 29 C POWER 11.8 V 29 C POWER TIME TIME Self-inspection interface...
- Page 11 Press and hold SET for 3s, the currents interface will be on. Press the SET, the current will be charged, select the current you want (8A/10A/12A/16A). Press and hold SET for 3s, the screen will be back to charging interface. The current setting finished.
- Page 12 Charging Timer Settings When the blue Indicator light is on (not blinking), press and hold SET for 3s in charging interface. The function interface is on. Three option you can see. 11.8 V 29 C POWER 11.8 V 29 C POWER TIME TIME...
- Page 13 Press SET, choose time option (the arrow is here). Press and hold SET for 3s, the time interface will be on. 11.8 V 30 C 30 C 11.8 V TIME 1 6A TIME 16 A 01:00:00 00:00:00 No time setting 30 C 11.8 V TIME...
- Page 14 Ground protection settings The EV charger has activated the ground protection by default. When the blue indicator light is on (not blinking), press and hold SET for 3s. charging interface. The function interface is on. Three option you can see. Press the SET to select the GHD option (arrow here).
- Page 15 Press SET and you will see two options, select the “No grounding” option (arrow here). After selection, the screen will show “No grounding”, turn off the grounding protection setting successfully. Connect charger to EV. Connect the charger to the car and the socket, you need to wait for a while for your car to match with the charger, after successful connection the indicator blue turns green and starts charging.
-
Page 16: Product Specs
Output Voltage 95-270V AC Service Life >10 000 Times Insulation Resistance >500M (DC500V) Operating Temperature -40°F to 131°F Storage Temperature -40°F to 176°F MAX Voltage 1500V Charging Cable Length 17ft Cable Material Wall Plug Type NEMA 5-15 plug EV Connector SAE-J1772... -
Page 17: Warranty And Support
Warranty & Support Warranty The Rexing Level 1 EV Charger comes with a full 12-month warranty. If you register your product on our official site (https://www.rexingusa.com/support/registration), you can extend the warranty to 18 months. Support If you have any questions regarding your product, please do not hesitate to contact us at care@rexingusa.com, or call us at... - Page 18 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
