SimpleAccess 800 Series Installation Manual

Heavy duty commercial lever
Hide thumbs

Advertisement

Table of Contents

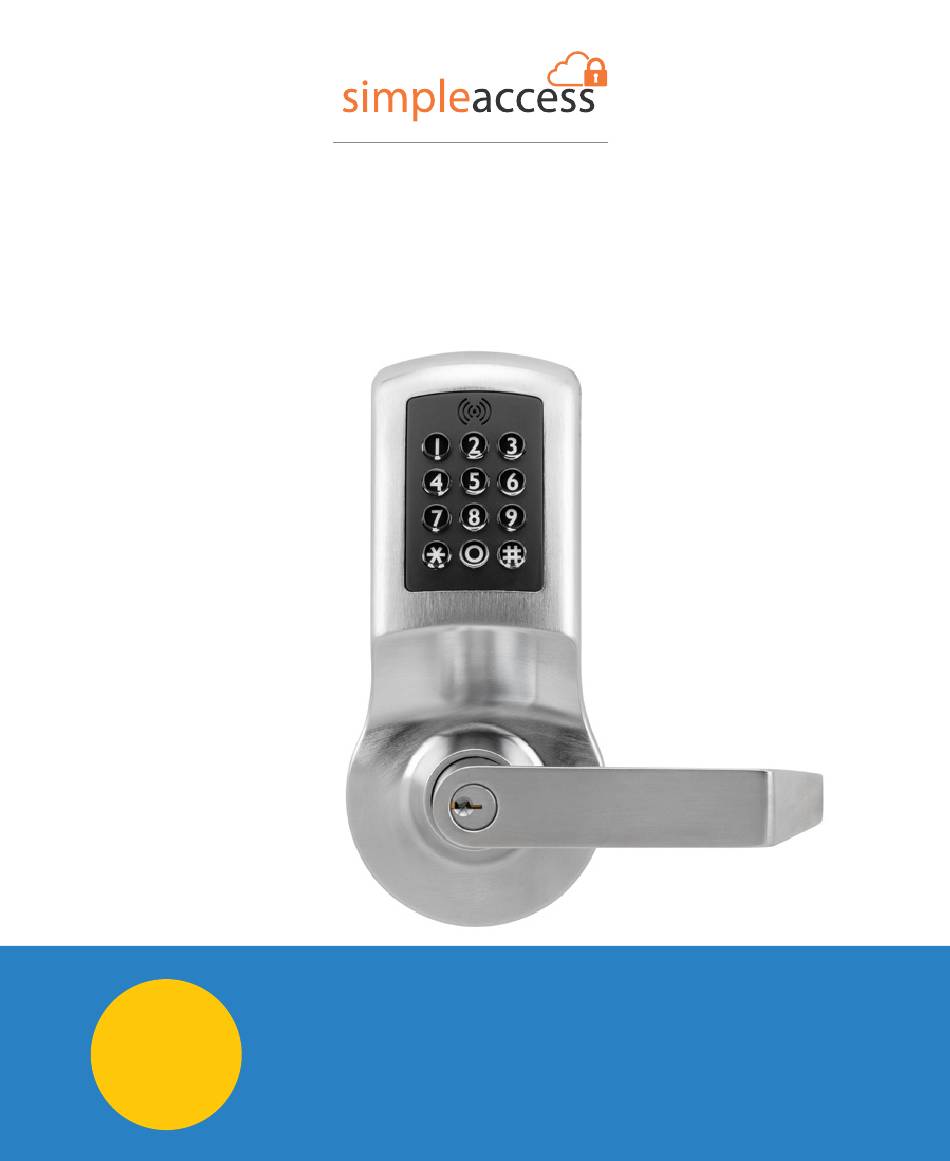

800 SERIES
HEAVY DUTY COMMERCIAL LEVER
1
Hardware Installation
Do this first:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 800 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SimpleAccess 800 Series

Summary of Contents for SimpleAccess 800 Series

  • Page 1 800 SERIES HEAVY DUTY COMMERCIAL LEVER Hardware Installation Do this first:...

  • Page 2: Need Some Help

    Power Drill 2-⅛” Hole Saw (optional if the door is not preconfigured Visit us online. with this hole) simpleaccess.devicewebmanager.com 1” (25mm) Drill Bit (for the middle hole and edge borehole if the door is not preconfigured) ⅜” (10mm) Drill Bit...

  • Page 3: What's In The Box

    What’s in the box? Let’s make sure you have everything you need. If you’re missing anything, contact support@simpleaccess.com. 2¾” (70mm) latch Battery Gaskets Strike Plate Mounting Plate 2 Keys Lock Body Exterior Rose Interior Rose Latch & Strike Interior Screws...
  • Page 4 Use this Hardware Installation troubleshooting tips, be sure to visit our online Guide to get your lock installed. support site: simpleaccess.devicewebmanager.com Get connected. Or contact us via phone or email: Use the Connection Guide to get 1 (833) 413 0212 your lock online and registered.
  • Page 5 Drilling new holes? Let’s get Most doors will have an existing hole drilled for a started. lever installation. If your door needs to be drilled, you’ll need to drill a 2 ⅛“ (54mm) face bore hole for the lockset on the face of the door, as well as a 1” edge bore hole for the latch on the edge of the door.
  • Page 6 Position the template. STEP 1 Exterior of Door Crease the template along Door Edge dotted line. Place the template on the door and position with the existing face bore hole. Once the template is aligned, tape it to the door. Quick Tip View the template from the other side of the...
  • Page 7 Mark carefully and drill. STEP 2 Exterior of Door Use a thumbtack or sharp object to mark the center of each hole you will drill. Mark the seven holes on the exterior of the door. Then apply the template to the Interior of Door other side of the door and mark the holes from this side as well.
  • Page 8 Remove the template. Make sure the markings are aligned precisely from one side of the door to the other and double check all the measurements and markings before drilling. Use a chisel to create the shallow notches on each side of the face bore hole.
  • Page 9 Repeat these steps for the 1” middle hole. Drill the 1” holes halfway through on the first side. Then drill the remaining half from the other side of the door. 1” (25mm) Drill Bit...
  • Page 10 Confirm door thickness STEP 3 Remove Lock Place on Door and adjust. The lock body comes prepped for a 1 ¾” thick door. Ensure the setup is correct by removing the lock body from the lock housing and inserting the lock body in the face bore hole.

  • Page 11: Install Latch

    Install latch. STEP 4 Exterior of Door Install the latch using the screws provided, with the bevel towards the door frame. Quick Tip Make sure the latch plate lays flush with the door. If the latch plate is not flush with the door, draw an outline around the faceplate edge and chisel a rebate to allow the latch to lay flush with the door edge.
  • Page 12 Confirm lock handing. STEP 5 PLEASE NOTE: Locks are supplied right handed. To reverse lock handing, perform the following steps. If handing is correct, move onto STEP 6. To Reverse Outside Handle: A. Turn key clockwise to vertical position. B. Depress the lever catch with the pin wrench provided. C.
  • Page 13 D. Remove the lever retractor spindle from the outside housing. E. Rotate 180 degrees. F. Place back into the housing. G. Replace the lever back onto the lock in the left-hand position. Ensure key is in the vertical position and push lever on fully until it “clicks”...
  • Page 14 To Reverse Inside Handle: A. Depress the lever catch with the pin wrench provided. B. Pull off lever. C. Remove the lever spring cage from the inside housing, rotate 180 degrees, then place back into the housing. D. Position the lever in the left-hand position and slide onto lever spring cage.
  • Page 15 Place the outside lock. STEP 6 Exterior of Door Slide the lock body into place on the outside lock assembly, ensuring that the slide clip of the retractor is facing the latch side of the door. Place the rubber gasket on the backside of the front lock RETRACTOR housing, then install onto the door.
  • Page 16 Install interior rose STEP 7 Interior of Door mounting plate. Place the interior rose mounting plate over the spindle, ensuring that the cable hooks are on top and the motor cable passes through one side of the center hole. The interior rose will be secured in a later step with screws.
  • Page 17 Install battery mounting STEP 8 Interior of Door plate. Place the battery mounting plate against the interior of the door, passing power cables and antenna through the hole in the center of the plate. Pass two inner mounting bolts through the top of the mounting plate and door and tighten into the outside lock.

  • Page 18: Connect Wires

    Connect wires. STEP 9 Plug in the red cable from the to the battery cable connector. Also connect the black outside cable to the black motor plug. Push any excess cable back into the hole through the door. IMPORTANT: Make sure cables are not pinched. Utilize the cable hooks as shown.
  • Page 19 Install interior lock. STEP 10 Interior of Door Remove the battery cover from the interior lock body if still secured. Pass the antenna cable through the battery cover opening and position the interior lock body over the lever retractor spindle, ensuring it fits flush on the door. Secure the interior lock with two through mounting bolts above and below the lever and two short mounting bolts at the top of the lock.
  • Page 20 Install batteries and STEP 11 battery cover. Install four AA batteries into the battery compartment. Plug the antenna cable into the antenna plug on the battery cover. Push the plug firmly until you feel and hear it click into place. Fit battery cover into place and secure with screw provided.

  • Page 21: Operational Check

    Operational Check STEP 12 Exterior of Door Exterior of Door Before closing the door, check the operation of the lock. Depress the internal lever to retract the latch. Ensure that the latch retracts, then fully springs back into place. Test the outside of the lock by entering the default code 4321.
  • Page 22 Congratulations! Next: Your lock is Use the now installed. Connection Guide to finish setup.
  • Page 23 Once your lock is installed and connected to Wi-Fi, you Auto-Lock: Enabled can easily control your lock, add and manage access codes with the SimpleAccess app. Auto-Lock Delay: 5 Seconds Keypad Sound: Enabled For a complete list of manual programming options, visit Heartbeat Interval: 1 Hour simpleaccess.devicewebmanager.com.
  • Page 24 This lock is equipped with a MIFARE card reader, enabling MIFARE cards, fobs and sticky tags to be used to unlock the door. MIFARE cards will need to be enrolled in your account first and then can be assigned to access users. Visit simpleaccess.devicewebmanager.com instructions on enrolling cards.
  • Page 25 SimpleAccess door. This is done by holding the MIFARE credential up account, or on the keypad with the following key to the keypad of the lock.

  • Page 26: Programming Functions

    After installing and connecting your These functions can also be performed remotely from lock to Wi-Fi, please register your lock and configure the SimpleAccess app. None of the following functions settings at simpleaccess.devicewebmanager.com are required for setup.
  • Page 27 Function Codes (cont.) Once set, the default User Code will be disabled after your Local User Code is created. If successful, you will see two green flashes and hear two beeps. If an error was made, you will see a red flash. 120: Delete Local User Code If you would like to remove your Local User Code, enter the following on the lock’s keypad:...
  • Page 28 Function Codes (cont.) ADDITIONAL FUNCTIONS 131: Erase all user codes, except 4321 default. 381: Enable Card/Fob Reader (Always On) This function turns on the card/fob reader on the 135: Perform a factory reset. Careful, this will delete all codes, schedules and events. lock.
  • Page 29 Notes 380: Turn off SmartCard reads. 381: Turn on Always Scanning For Cards mode. 382: Turn on Only Read Card On Keypress. 390: Require # to be pressed after a user code is entered. 391: Removes the requirement to enter # after a user code.
  • Page 30 Notes Notes...
  • Page 31 Visit us online. simpleaccess.devicewebmanager.com We’re here to help. 1 (833) 413 0212 support@simpleaccess.com...
