Summary of Contents for Vibe OPTISOUND OPTIMOST25-V4

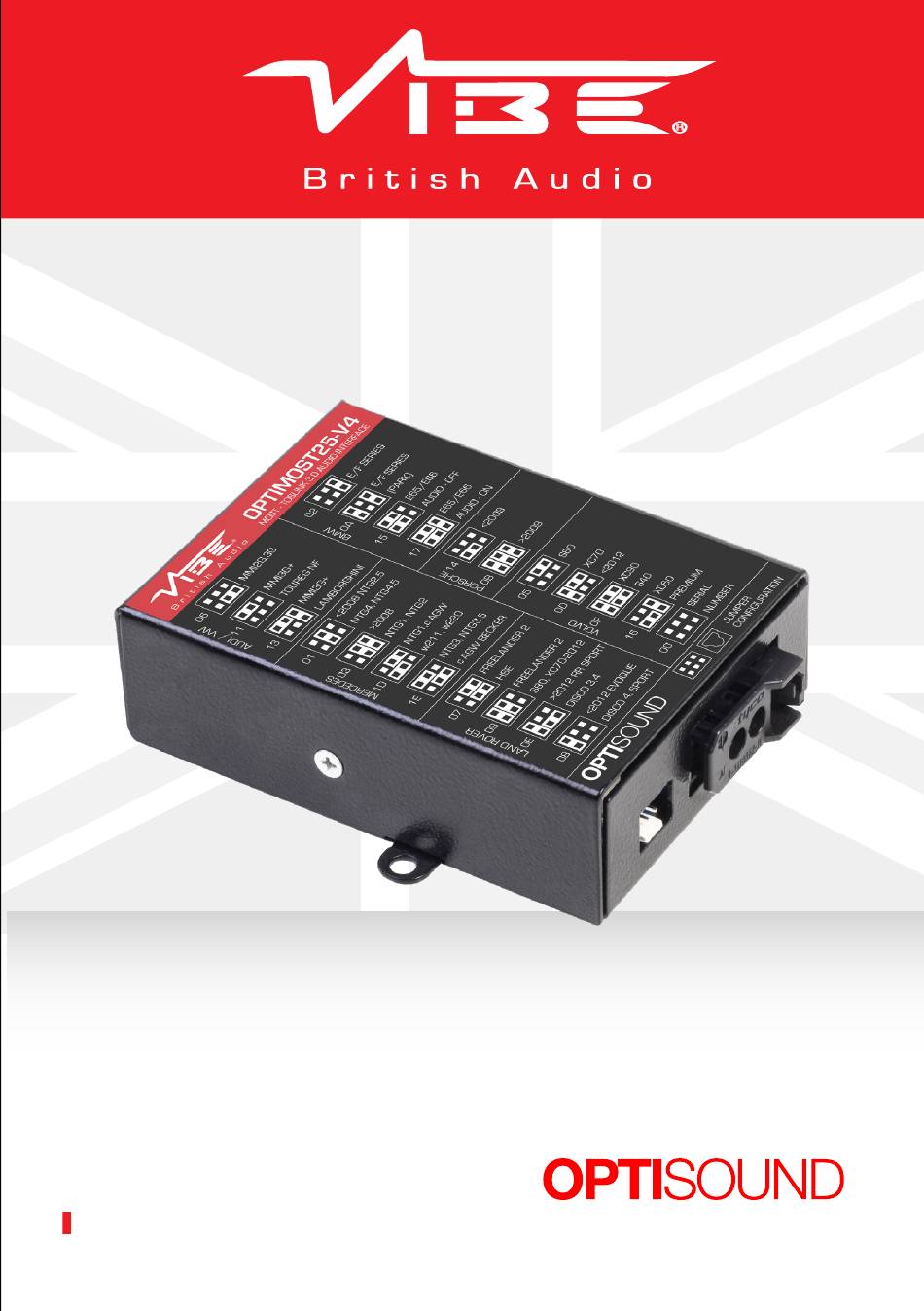

- Page 1 MOST - TOSLINK 3.0 AUDIO INTERFACE OPTIMOST25-V4...
- Page 2 Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it.
-
Page 3: Limited Warranty
(without limitation) compensatory, direct, indirect or consequential damages, loss of data, income or profit, loss of or damage to property and claims of third parties. For the avoidance of doubt, VIBE does not limit its liability for death or personal injury to... -
Page 4: Power Connections
Power Connections Fuse Close To Battery Remote Turn On Output Wire Chassis Ground MOST Connections MOST Out To Vehicle MOST In From Vehicle Amplifier Optical Connection Toslink Out To Aftermarket DSP Processor / Amplifier... -
Page 5: Installation Notes
Installation Notes Please note that the power connections may not match those present in the vehicle, please ensure that the correct connections are made using a multi-meter. Incorrect wiring may cause damage to the adaptor that isn’t covered by warranty. Connections 1. - Page 6 Application Special Mode For BMW If you want to change the volume levels of parking sensors and system messages, you should use an additional mode of the OPTIMOST25-V4 To set the desired volume of the parking sensors and signals: 1) set the jumpers to position BMW (one jumper). 2) Turn on the system.
-
Page 7: Jumper Settings
Jumper Settings Jumper position Compatibility Notes Mercedes Benz (NTG3 and The AGW block (Becker) is NTG3.5 audio systems, significantly larger than the AGW block audio systems with AGW (Japan). In systems equipped with an AGW block the production of (Japan) unit, it is not possible to connect Becker). - Page 8 Jumper Settings Jumper position Compatibility Notes BMW E65, E66 The non-standard amplifier should be connected to the speakers that were connected to the dismantled standard am plifier. The non-standard amplifier only plays a stereo signal. The head unit generates service signals to the front and rear speakers and plays a stereo signal to the front speakers.
- Page 9 Jumper Settings Jumper position Compatibility Notes Volvo XC70 2012+ and The standard amplifier is disconnected and some models Volvo S60, the OPTIMOST25-V4 is connected in it’s place in the MOST bus. Volvo S60, V60 The standard amplifier is disconnected and the OPTIMOST25-V4 is connected in it’s place in the MOST bus.
- Page 10 Notes for AUDI 3G+ and VW Tourareg NF In multimedia systems AUDI 3G+ and VW Touareg NF feature a power amplifier located in a single unit with a radio tuner. For this reason, when you install the OPTIMOST25-V4, the standard amplifier remains connected to the MOST network with the adapter being installed.
-
Page 11: Specification
Notes for Volvo (If You Have Component Protection) Before connecting the adapter must be assigned to the adapter serial number (a marker of activity of the protection components is the cessation of broadcast audio adapter in 20-40 seconds after turning on the system). - Page 12 Designed and engineered in England www.vibeaudio.co.uk www.youtube.com/vibeaudio www.facebook.com/vibeaudio www.instagram.com/vibeaudio...
