APL-SW-3 User Manual
APL-SW-3 User Manual
Introduction
The APL-SW-3 (APL switch) connects Ethernet networks to the new Ethernet Advanced
Physical Layer (APL) interface. The APL-SW-3 can connect up to 3 APL Field Devices
to the Ethernet network. When used with a HART to APL interface, such as the
ProComSol HART-APL-PCB, existing HART devices can be converted to Ethernet-APL
devices and connected to this switch. This allows HART instruments to connect to an
Ethernet-APL network. The APL Switch also connects "native" APL devices to the
Ethernet-APL network.
System Diagram
An Ethernet-APL network consists of the APL switch, a 24Vdc power supply, an
Ethernet router, APL field devices, and a host device running a HART-IP compliant App.

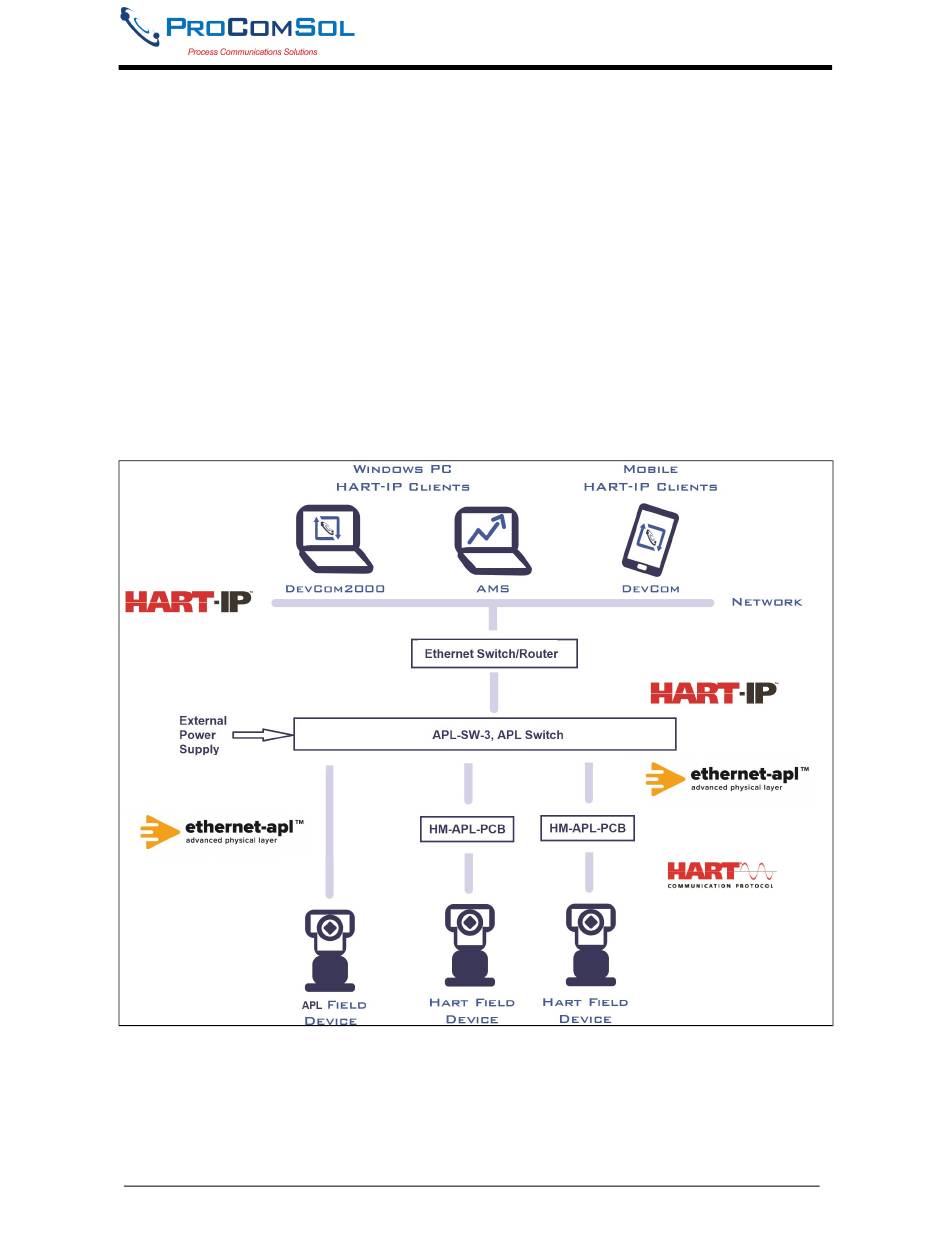

Figure 1. APL-SW-3 System Diagram
Providing Advanced Process Communication
MAN-1058 8/26/2024
Page 1
Products Since 2005
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for ProComSol APL-SW-3
- Page 1 The APL-SW-3 (APL switch) connects Ethernet networks to the new Ethernet Advanced Physical Layer (APL) interface. The APL-SW-3 can connect up to 3 APL Field Devices to the Ethernet network. When used with a HART to APL interface, such as the ProComSol HART-APL-PCB, existing HART devices can be converted to Ethernet-APL devices and connected to this switch.
- Page 2 APL is a two wire Ethernet physical layer. Each APL transmitter is connected via a twisted pair cable to the APL switch. The APL switch supplies power to the individual APL field devices. Figure 2. APL-SW-3 Pin outs Providing Advanced Process Communication MAN-1058 8/26/2024...
- Page 3 192.168.2.1. The APL switch starts assigning addresses at 192.168.2.26. For example, if a PC is connected directly to the APL-SW-3 via an Ethernet cable, the switch will assign address 192.168.2.26 to the PC. When APL field devices are connected to the switch, they will be assigned the next available address.
- Page 4 APL-SW-3 User Manual The default login credentials are: User Name: admin Password: root These credentials can be changed. After login, the Port Status screen is shown. Navigate to other screens using the tabs. Each screen is explained next: Port Status Screen The Port Status screen shows Link Status and Traffic data.
- Page 5 APL-SW-3 User Manual Link Status Green Link Up means connected and communicating. Red Link Down means not connected. In the above example, Channel 3 does not have an APL field device connected to it. Mac Address The MAC Address of the connected device.
- Page 6 APL-SW-3 User Manual The General Settings screen is used to set the APL switch clock and to change the password for browser access to the APL switch. Default password is “root”. It is recommended to change the password after first connection to the APL switch via a browser.
- Page 7 APL-SW-3 User Manual Diagnostics Screen The Diagnostics screen shows APL switch events that can be useful for troubleshooting any connection issues. HART-IP Host Connection Procedure 1. Connect APL field devices to the APL channel terminals on the APL switch. 2. Apply 24 Vdc power to the APL switch. This will also power the APL field devices.
-
Page 8: Warranty
APL-SW-3 User Manual Warranty The APL-SW-3 is warranted for 1 year for materials and workmanship. Contact Support at ProComSol, Ltd if having any problems. An RMA (Return Material Authorization) number obtained from ProComSol, Ltd is required on all returned items.
