Summary of Contents for MAD EasyLoad 500

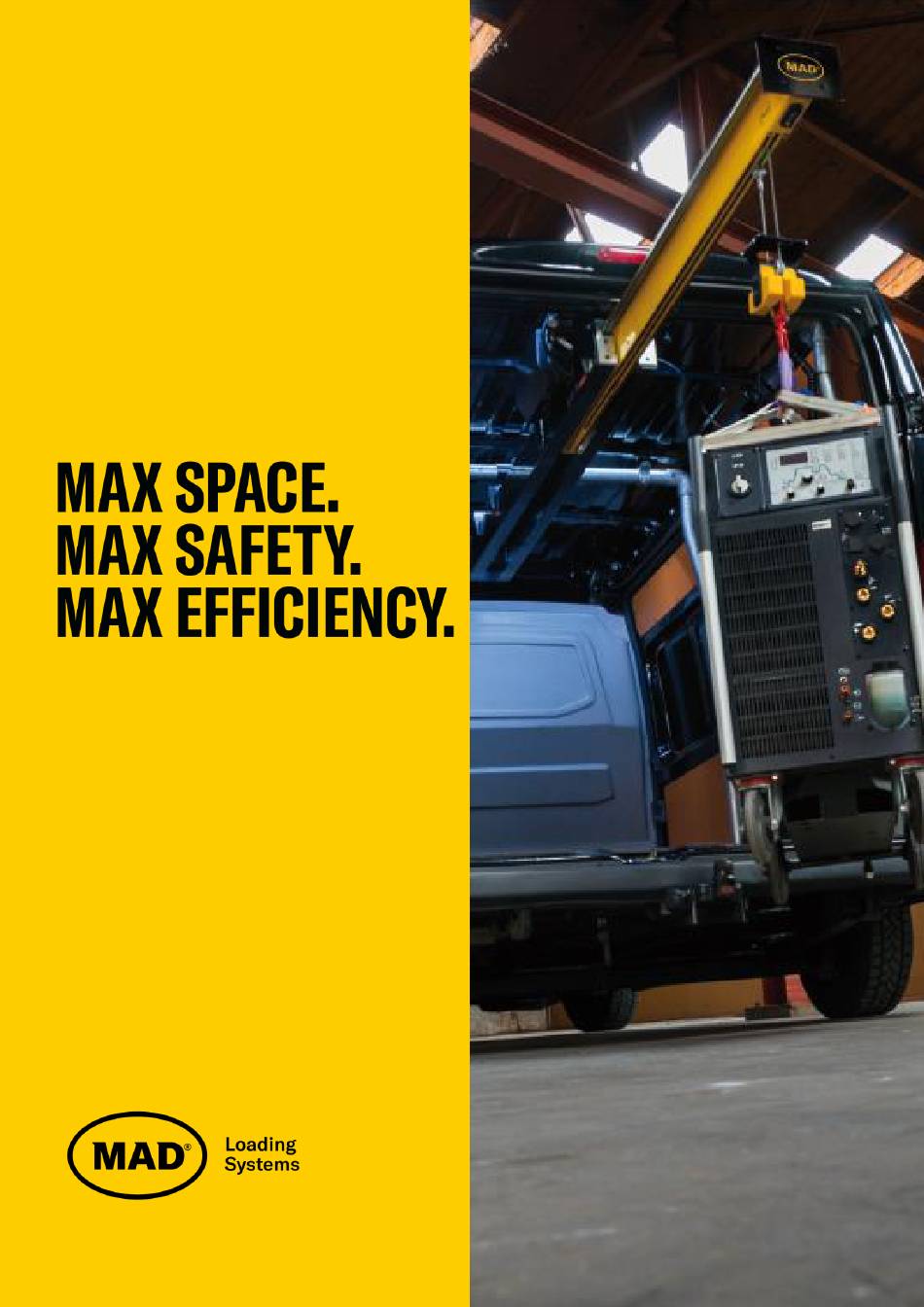

- Page 1 EH00006 User Manual for the EasyLoad 500 CE EasyLoad version 3.0 25-05-2021...
- Page 2 EH00006 User Manual EasyLoad 500 Wiltonstraat 53 3095 KW Veenendaal The Netherlands T +31 (0) 318 586 100 mad-loadingsystems.com info@mad-automotive.com Version: United States 01...
-
Page 3: Table Of Contents
EH00006 User Manual EasyLoad 500 Contents Introduction ..........................3 Origin and year of manufacture ..................3 Overview ........................... 3 Safety..........................3 General safety instructions ....................3 Safety instructions when lifting ..................4 Emergency stop ........................ 4 Maintenance and inspection ..................... 4 Safety symbols on the EasyLoad .................. -
Page 4: Introduction
Note! The EasyLoad has been developed for use in a van, in combination with the specially developed mounting frame. All other applications are outside of the responsibility of MAD. ▪ MAD is not responsible for the suspension of the EasyLoad to any mounting frame other... -
Page 5: Safety Instructions When Lifting
Have any repairs and maintenance carried out by a person with the relevant expertise in the field of hoisting. ▪ Applying changes and additions is not allowed without prior written permission from MAD. ▪ Wear sturdy gloves when gripping the steel cable. -
Page 6: Safety Symbols On The Easyload
EH00006 User Manual EasyLoad 500 2.5 Safety symbols on the EasyLoad Suspended loads Risk of crushing Safety footwear Observe user mandatory instructions 500kg 1100lbs Maximum load 1100lbs Regularly check that the markings are still legible. If this is not the case, replace the marking. -
Page 7: Raising And Lowering The Load/Hook
EH00006 User Manual EasyLoad 500 3.2 Raising and lowering the load/hook Pressing the button with the up-arrow will raise the load. Once the hoisting hook reaches the inner beam, it will automatically deactivate. Further hoisting will then be impossible. Pressing the button with the down-arrow will lower the load. -
Page 8: Technical Specifications
EH00006 User Manual EasyLoad 500 6 Technical specifications EL-500- EL-500- EL-501- 1xxx 2xxx 2xxx Length when retracted 87.8 87.8 inch Length when extended 127.2 inch Distance hook – front of EasyLoad when retracted inch Distance hook – front of EasyLoad when extended 102.8... - Page 9 EH00006 User Manual EasyLoad 500 8” 14.2”...
-
Page 10: Troubleshooting
EH00006 User Manual EasyLoad 500 7 Troubleshooting Problem Possible reason Solution Sliding in and out is slow or Battery (almost) empty Charge or replace the battery difficult Mechanical defect Contact a specialist Slip clutch slips The vehicle is parked on a slope that is too steep (max. - Page 11 EH00006 User Manual EasyLoad 500 The hook cannot be lowered Cut-off for the lower limit completely changed, contact a specialist The hook does not lower Mechanical defect, contact a smoothly specialist Cut-off for the lower limit not adjusted correctly, contact a...
-
Page 12: Guarantee Conditions
EasyLoad, or has the same carried out by a third party, or if the EasyLoad is used for other than normal purposes or if, in the opinion of MAD, it is used or maintained in an injudicious manner, as well as transport damage. -
Page 13: Annual Maintenance History
EH00006 User Manual EasyLoad 500 9 Annual maintenance history Date of installation: Date of inspection: Performed by: Performed by: Company stamp and signature Company stamp and signature Date of inspection: Date of inspection: Performed by: Performed by: Company stamp and signature... -
Page 14: Ce Declaration Of Conformity
EasyLoad 10 CE Declaration of conformity M.A.D. Holding B.V. Wiltonstraat 53 3905 KW VEENENDAAL The Netherlands Declares under its own responsibility that the EasyLoad (550lbs and 1100lbs) with type number 69XXXX conforms with the Machinery Directive 2006/42/EC and the EMC directive 2004/108/EC as included in (inter)national legislation. In the assessment of the product safety, use has been made of the following European harmonised standards: NEN-EN 14492-2:2019: Cranes - Power driven winches and hoists –... - Page 15 EH00006 User Manual EasyLoad 500...
- Page 16 EH00006 User Manual EasyLoad 500 MASTERING YOUR SAFETY AND LOADING SOLUTIONS. Wiltonstraat 53 3095 KW Veenendaal The Netherlands T +31 (0) 318 586 100 mad-loadingsystems.com...
