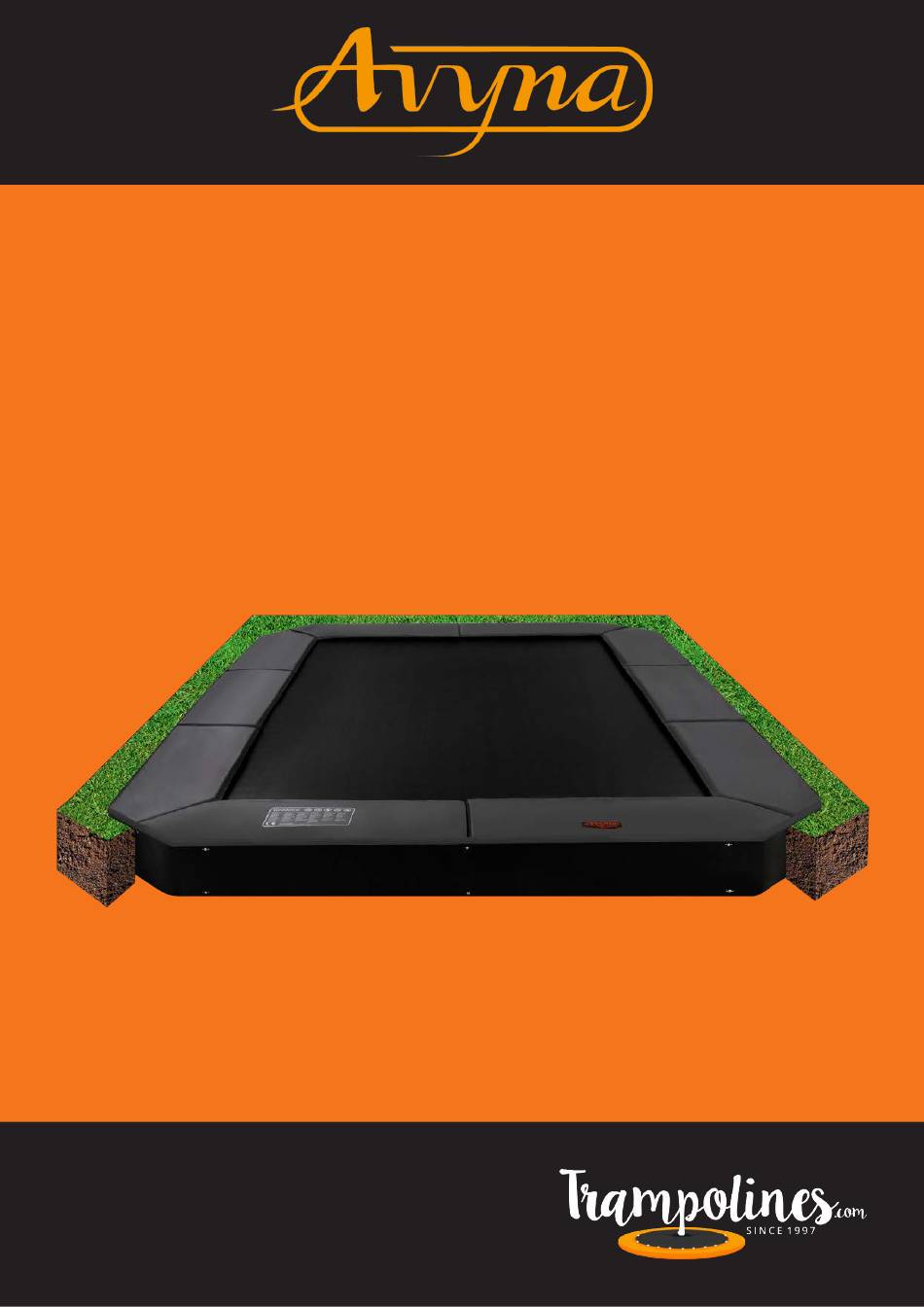

ASSEMBLY MANUAL
10x14 Inground Avyna
In 7 Easy Steps
DIY Installation Manual
For a rectangular Avyna
In-Ground Trampoline
Including assembly of the optional
Safety Enclosures
For installation assistance or other information email, text or call:
Trampolines.com 1-844-872-5867 or
email questions to support@trampolines.com
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Trampolines Inground Avyna
- Page 1 ASSEMBLY MANUAL 10x14 Inground Avyna In 7 Easy Steps DIY Installation Manual For a rectangular Avyna In-Ground Trampoline Including assembly of the optional Safety Enclosures For installation assistance or other information email, text or call: Trampolines.com 1-844-872-5867 or email questions to support@trampolines.com...
- Page 2 CONTENT LIST PARTS LIST HELPFUL TIPS Step 1 ASSEMBLE YOUR FRAME Step 2 ATTACH THE RETAINING WALL Step 3 DIG THE HOLE Step 4 PLACE AND LEVEL Step 4.5 GRAVEL / DRAIN Step 5 MAT AND SPRINGS Step 6 BACK FILL Step 7 SAFETY PAD ENCLOSURE (OPTIONAL)
- Page 3 PARTS LIST TOP FRAME C Tube C Tube K Tube K Tube TEPL-343-fl-1142/A TEPL-343-fl-1142/B TEPL-343-fl-1141/A TEPL-343-fl-1141/B TOP CONNECTORS I Tube C Tube Connector K Tube Connector TEPL-343-fl-115 TEPL-343-fl-1142/C TEPL-343-fl-1141/C BOTTOM FRAME L Tube I Tube Long I Tube Short I Tube Short TEPL-343-fl-802 TEPL-343-fl-802/C TEPL-343-fl-802/A...
- Page 4 PARTS LIST NUTS AND BOLTS Screw M8 Screw M8 Screw M8 Parker Screw M8-70/A M8-70/B M8-16 M6x20 Retaining Wall 1 Retaining Wall 2 Jump Mat Galvanized Long 2300-121/A 2300-121/B TC-TEPL-343-fl-222 Springs TEPL-200-211/A 104x Galvanized Short Safety Pad Buckle Safety Pad TC-AVGR-343-fl-333 TEPL-BUCKLE Springs...
- Page 5 PARTS LIST TOOLS IN THE BOX Short Measuring Tool Wrench Allen Wrench Spring Tool 2300-131/A Long Measuring Tool 2300-131/B On the following assembly pages, only letters (A, A2, B…) will be used to refer to the corresponding parts.
- Page 6 PARTS LIST This is the parts list for the safety enclosure box. If you haven’t bought the trampoline with an enclosure included, you can ignore this parts list. Pole with Sleeve Pole w/o Sleeve Clamp Safety Net AVBL-343-802/A AVBL-343-802 / B CLAMP-TOOL-SN-343 ANBL-343 Straps for Safety Net...
- Page 7 HELPFUL TIPS Gather your tools - it’s always good to take inventory of what you have access to before you begin your project. Know your team - how many people you have to help you. Plan accordingly - this is the kind of project where the timing of it can change pretty dramati- cally depending on the resources at your disposal (whether in tools or manpower).
- Page 8 STEP ONE: ASSEMBLE YOUR FRAME • Wrench to hold the bolds 30-45 Minutes You can use the Wrench that came with your box, or a Socket Wrench of your own that fits. Allen Wrench (Provided) • • Gloves Need help? Scan me and go to step one Top: Begin by connecting A1 and A2 using B2 piece.
- Page 9 STEP ONE: ASSEMBLE YOUR FRAME Connect the 10 BUCKLE STRAPS O to the TOP frame. You do this by bringing the safety pad N to your frame, flipping the pad upside down and fasten the BUCKLE STRAPS O to the TOP frame in the same place as where the buckle is on the safety pad.
- Page 10 PLEASE PAY ATTENTION ! STOP! Have you purchased the 10x14 Inground with an Enclosure? Please go to page number 22 to continue the installation. If you are not adding an enclosure, please ignore this sign and go to the next page.
- Page 11 STEP ONE: ASSEMBLE YOUR FRAME Middle: Once the top part of the frame is secured, insert T into the neck joints along the upper frame. You’ll want the curved bottoms of T to be on the outer edge of the frame. The T tubes have to be connected with the F2 bolts.
- Page 12 STEP ONE: ASSEMBLE YOUR FRAME Bottom: Using G, connect C, D, E1 and E2 to form the bottom frame. Pay attention to the E1 and E2 tubes, they are the same length but are slightly different. The tubes have punched holes on different positions: E1: A = A E2: B >...
- Page 13 STEP TWO: ATTACH THE RETAINING WALL 30 Minutes • Electric Screwdriver or Phillips-Head Screwdriver Need help? Scan me and go to step two SET UP: While unraveling the retaining walls, you will see that there are four corner pieces and two shorter straight pieces.
- Page 14 STEP TWO: ATTACH THE RETAINING WALL Remaining Panels: Using the H, work your way around the remainder of the frame while at- taching the Retaining Wall I and Retaining Wall J. Be sure to make the wall as flush with the frame as possible.
- Page 15 STEP THREE: DIG THE HOLE 2 - 8 hours Tools may vary depending on your acces- The time it takes to dig the 10x14 sibility. At the bare minimum you will need: hole can vary depending on the number of people and accessibili- •...
- Page 16 STEP THREE: DIG THE HOLE Tip #2: Though a can of “grass spray” is not needed for marking your trampoline digging area, we find that it can be an incredibly helpful tool! Outline: Using your assembled frame as a guide, you’ll want to mark out the area that you’ll be digging.
- Page 17 STEP THREE: DIG THE HOLE Tip #3: Though it is not necessary, some people like to save portions of the removed turf and grass to add back into the area on the outside of the frame post installation. Dig Inner Hole: Measuring about 8 inches away from the edge of the wall, begin to dig your inner hole.
- Page 18 STEP FOUR: PLACE AND LEVEL • Gloves 15 minutes - 1 hour • Shovel Need help? Scan me and go to step four SET UP: Once the retaining wall is attached to your assembled frame, and your initial hole has been dug, it’s time to make sure it’s level and your trampoline is as flush with the ground as possible.
- Page 19 STEP FOUR AND A HALF: GRAVEL / DRAIN INFO: A common question we receive is about drainage. In most instances, water is just absor- bed into the ground like it would before the soil was disturbed. That being said, down below are some options for those who this is a concern for or those who live in rainier than usual climates.
- Page 20 STEP FIVE: MAT AND SPRINGS • Gloves 15 - 30 Minutes • Avyna Spring Tool Need help? Scan me and go to step five Starting in the corners, you’ll want to attach all the Short Springs M to their respective loops in frame and Jump Mat K.
- Page 21 STEP SIX: BACK FILL • Gloves 20 Minutes • Shovel Need help? Scan me and go to step six SET UP: Now that your frame is in the ground with the mat and springs, you should notice that there will be a considerable gap between the edge of the frame and dirt hole you made. It’s time to get those wheelbarrows of dirt you saved earlier and get filling! Backfill: Making your way along the edge of the trampoline, fill in the gaps with soil, packing it down tightly as you go with your foot, do not use equipment to pack the dirt as this may...
- Page 22 STEP SEVEN: SAFETY PAD 15 - 20 Minutes • Screwdriver Need help? Scan me and go to step seven SET UP: Now that your trampoline has been backfilled, you just need to attach the Avyna Sa- fety Pad and your trampoline will be fully operational! Take the pad N and cover the springs with it.
- Page 23 ENCLOSURE (OPTIONAL) In STEP ONE (page 7-8) you assembled the TOP frame. Now you will attach the Middle frame. Insert T into the neck joints along the TOP frame. You will want the curved bottoms of T to be on the outer edge of the frame. Take the 8 TOOL-CLAMPS V3 and connect TOP frame, T and V3 together with the F2 bolts.
- Page 24 ENCLOSURE (OPTIONAL) Attach the retaining wall SET UP: While unraveling the retaining walls, you will see that there are four corner pieces and two shorter straight pieces. The pieces are meant to overlap as you attach them. Before you start to attach them, press the pre-printed oval holes out of the panels. Start always with the 4 corner panels I.
- Page 25 ENCLOSURE (OPTIONAL) Remaining Panels: Using the H, work your way around the remainder of the frame while at- taching the Retaining Wall I and Retaining Wall J. Be sure to make the wall as flush with the frame as possible. This might require occasionally backtracking and loosening portions of the wall to get rid of sections that are protruding or not flush.
- Page 26 ENCLOSURE (OPTIONAL) Dig the hole: To complete this step, you will need to go back to pages 14, 15 and 16. Once you finish that, go back to this page and do this additional step. Make sure you take out some additional dirt for your TOOL-CLAMPS (V3).
- Page 27 ENCLOSURE (OPTIONAL) Follow STEPS 4, 5, 6 and 7 on the pages 17 - 21. When you finish those steps, come back to this page in order to connect the net. Build the net poles. Click V1 and V2 together to create the complete enclosure pole (8x). You will hear a ‘click’...
- Page 28 ENCLOSURE (OPTIONAL) Connect the top straps. Take the net W1 and look for the door first. The door will be on one of the 2 short sides of the trampoline. Doing this, you will know where to start connecting the straps W2.
- Page 29 ENCLOSURE (OPTIONAL) Connect the bottom straps. Use the 8 other short straps to connect the net with the bottom E.10 poles. Use the metal clip on the TOOL-CLAMP (V3) to wrap the strap around it and tighten it. For the corners, use the 4 longer straps to connect the net to the TOP frame. The W3 closures are to close the door.
- Page 30 10x14 Avyna In-Ground Trampoline is available at www.trampolines.com For installation assistance or other information email, text or call: Trampolines.com 1-844-872-5867 or email questions to support@trampolines.com...
