Empire EDIGPROTRA Operator's Manual

CARE AND MAINTENANCE
■ Always handle the product with care. Do not bump,
knock, or drop the product.
■ Keep the product free from dust and liquids.
■ Do not expose the product to shock, continuous
vibration, or extreme temperatures.
■ Remove the coin battery from the product if the product
is not used for an extended period of time.
SPECIFICATIONS
Measuring range 0° to 360° (single rotation)
(Display capable of 0-999.9° before incorrect measurement)
Digital display resolution ±0.1°
Digital display precision ±0.3°
Polution degree 2
Operating altitude 2,000 m
Working temperature 0 °C to 50 °C
Storage temperature -10 °C to 60 °C
Maximum operating 80% RH
humidity
Working current ≤30 uA
Power supply 1 x CR2032 lithium battery
(included)
Battery voltage 3.0 V
Dimensions 217 x 35 x 19.4 mm (folded)
400 x 35 x 19.4 mm (unfolded)
EMPIRE® PRODUCT LIMITED WARRANTY
1 YEAR LIMITED GUARANTEE: Should this product fail to perform within 1 year of purchase and excluding normal wear and tear and provided
the damage has not been caused by inappropriate use or alteration, simply return it to the place of purchase, along with your proof of purchase
or contact us. You will then be advised as to whether you are entitled to a refund, repair, or a replacement. Repaired or replacement goods will
be returned at our cost. In addition to this warranty, our goods come with guarantees that cannot be excluded under the Australian and New
Zealand Consumer law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Distributed by:
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mt. Waverly, 3149 VIC
www.empiretools.com.au
1300 361 505
Techtronic Industries N.Z. Ltd
Unit C, 70 Business Parade South,
Highbrook, Auckland, 2013,
New Zealand
www.empiretools.co.nz
0800 279 624
TROUBLESHOOTING
Problem Possible cause Solution
Unclear or no ● Low battery Reinstall or
display power replace the
battery.
● Incorrect
battery
installation
● No battery
installed
Erratic Casual incorrect Press the
measurement function(s) caused button.
data by high vibration
or strong swing
Number skip or Internal error Remove the
frozen display battery. Wait for
about 1 minute,
then re-install
the battery.
SERVICE – AUSTRALIA
1300-361-505
Monday – Friday 8am-5pm AEST
Or visit empiretools.com.au/support/contact-us
SERVICE – NEW ZEALAND
0800-279-624
Monday – Friday 6am-5pm AEST
Or visit empiretools.co.nz/support/contact-us

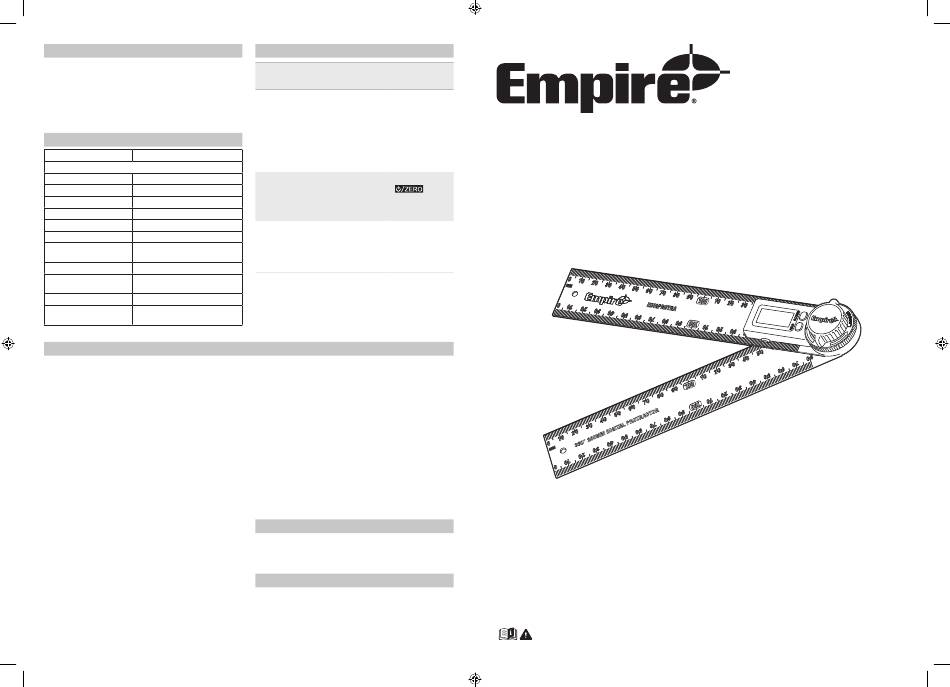

360° 200MM
DIGITAL PROTRACTOR
Operator's manual
Cat. no. EDIGPROTRA
WARNING! To reduce the risk of injury, user must read and understand the operator's manual.
